A newer version of this item is available.
It is replaced by the Symbol MC3000.
A high-performance scan engine and optimum battery life provide you with unsurpassed performance for gathering, displaying and communicating the critical data that drives your business.
Building on the legacy of our industry-leading PDT 3100 Portable Data Terminals the PDT 6100 Series combines superior ergonomics a high-performance scan engine and optimum battery life to provide you with unsurpassed performance for gathering displaying and communicating the critical data that drives your business. Available in both retail and light industrial versions the PDT 6100 Series provides you with broader more robust barcode-driven data management than ever before.
The Symbol PDT 6100 is also known as the
Symbol Technologies PDT 6100
Rugged Version Available for Demanding Environments
The PDT 6100 combines superior ergonomics, a high-performance scan engine and optimum battery life to provide you with unsurpassed performance for gathering, displaying and communicating the critical data that drives your business. Available in two configurations, the PDT 6100 Series provides you with broader, more robust barcode-driven data management capabilities than ever before.
Superior Ergonomics and Advanced Features
The PDT 6100 Series has been ergonomically designed to provide maximum user comfort over extended periods of use. Its small, lightweight, contoured form factor rests easily in the user's hand. The adjustable hand strap provides users with a comfortable secure hold. The PDT 6100 allows for both left- or right-handed operation and a choice of conveniently spaced 35- or 46-key alphanumeric or 22-key numeric keyboard configurations for easy inputâ€“ even for users who need to wear gloves.
The PDT 6100 offers a choice of brightly lit, easy-to-read display options. The 8-line by 20-character or the 16-line by 21-character liquid crystal displays feature user-selectable backlighting and adjustable contrast setting. Each display is scratch-resistant and sealed against moisture and dust
Tough Enough for Any Environment

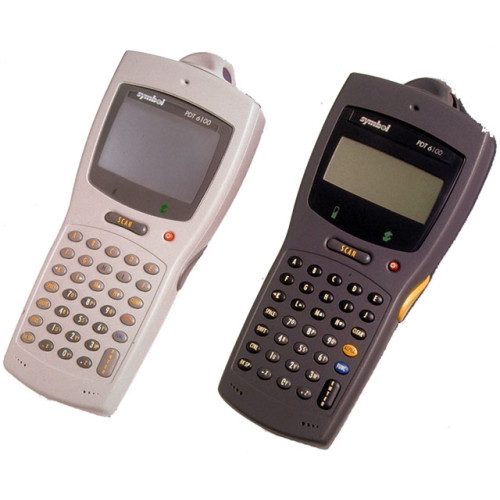

Two versions of the PDT 6100 Series are available, a standard version with a light gray housing and a ruggedized version with a dark gray housing for demanding environments. The ruggedized version is ideal for use in transportation and logistics or manufacturing environments, and withstands multiple 4 ft./1.2 m drops to concrete. The standard version in the light gray housing delivers the same high performance for retail in-store applications.
Power When You Need It
From retail operations where portable data terminals increase speed and efficiency of shelf pricing, audits, price checking, order entry, and inventory control, to transportation and logistics companies who need to perform package/baggage tracking, picking, receiving and cross-dock applications, the PDT 6100 NiMH battery gives you long life, for true full-shift capabilities, no matter how intensive the data management demands.
Improved Communication Anywhere in Your Enterprise
The PDT 6100 offers either batch processing or wireless communications via Symbol's Spectrum24Â® wireless LAN technology. Designed to comply with the IEEE 802.11 and 802.11b airwave communications standard, Symbol's Spectrum24 wireless LAN technologies provide unsurpassed performance, reliability and ease of installation and use. This means you have options for collecting data easily and communicating it to your host computer, and for keeping track of information generated anywhere in your organization. For batch processing applications, RAM options from 640 KB to 7.6 MB are available.
Profit from Symbol's Strength
Symbol is the worldwide leader in barcode-driven data management systems with thousands of wireless network installations and millions of scanners and terminals in use. To find out how the PDT 6100 can work for you, call any of our convenient locations or visit us at www.symbol.com/mobile
PDT 6100 Features
PDT 6100 Benefits
Ergonomic design with hand strap
Provides maximum user comfort over extended periods of use.
Choice of conveniently spaced 35- or 46-key alphanumeric or 22-key numeric keyboard configurations
Allows for easy input even for users who need to wear gloves.
Dark gray ruggedized version available
Tough enough for demanding mobile applications in indoor and outdoor environments
SE 900 scan engine
Provides the highest scanning performance in the smallest package possible.
Long battery life for true full-shift capabilities.
PDT 6100 Specification Highlights
PDT 6100 Physical Characteristics:
PDT 6100 with 8-line display with 1-D scanning: 2.2 in. D (at top), 1.5 in. D (at handle) x 3.25 in. W (at top) 2.75 in. W (at handle) x 7.75 in. H / 56 mm D (at top), 38 mm D (at handle) x 83 mm W (at top), 70 mm W (at handle) x 197 mm H
15.5 oz./440 gm to 16.9 oz./480 gm
15 KV to all surfaces without loss of data
0% to 95% noncondensing at 122ÂºF/50Âº
Unit functions normally after 4 ft./1.2 m drop to concrete
Standard Version: 32Âº to 104ÂºF/0Âº to 40ÂºC Ruggedized Version: -4Âº to 122ÂºF/-20Âº to 50ÂºC
-4Âº to 185ÂºF/-20Âº to 85ÂºC
PDT 6100 Performance Characteristics:
80c88 type (8 MHz/V25)
System EPROM 128 KB (DOS, BIOS, and terminal diagnostics)
256 KB for program storage in a protected area
Up to 7.6 MB for data and/or program storage
22-key hard key cap; 35-key, or 46-key conductive rubber; side alpha-shift key and scan trigger
8-line by 20 characters, 16-line by 21 characters, supertwist (STN) LCD, back light, reverse video, double-high and double-wide characters
Time and date stamping under software control; Year 2000 compliant
DB9: tethered laser scanner or contact wand; RJ-41: for cradle, cable or printer interface
RS-232 communications capable of transmission speeds from 150 bps to 38.4 Kbps (software selectable)
RF Data Communications
100, 230, 500 mW (approx.) (varies by country)
2.4 to 2.5 GHz spread spectrum modulation (varies by country)
Multiple, software controlled
Data Rate (effective):
1 or 2 Mbpsâ€“Frequency Hopping, 11 Mbpsâ€“Direct sequence
FCC part 15 in U.S. only, ETSI 300.328 in Europe, RCD STD-33 in Japan
Optional Laser Module:
Scanning module rotates 180Âº for front shooting, right or left-handed operation; supports one-dimensional barcodes; standard range
Including 6 or 10 mil (.15 or .26 mm) aperture choices
Provides two-hour charging of NiMH batteries and provides full RS-232 voltages and signals
Equivalent to single-slot functionally without the modem option
Rechargeable high-capacity NiMH battery pack
PDT 6100 Regulatory:
Certified to UL1950, CSA C22.2 No. 950, EN60950/IEC950
CDRH Class II, IEC Class 2
FCC Part 15 Class A, ICES-003 Class B, European Union EMC Directive, Australian SMA
