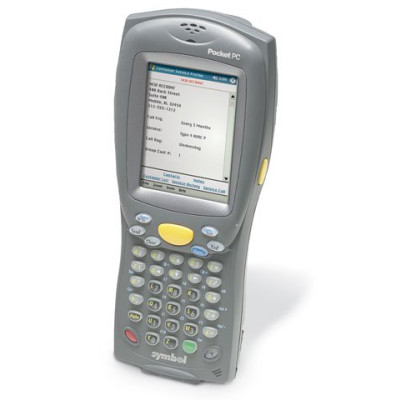

Symbol PDT 8146 Handheld Computers - 802.11b

Symbol MC9060-G (MC9000-G Series) A newer version of this item is available.
It is replaced by the Symbol MC9060-G (MC9000-G Series).

Deliver data where and when it's needed, enhance productivity where business is conducted, whether taking inventory in the warehouse or checking on an order from a customer site.

The PDT 8100 Series from Symbol Technologies bridges the gap between pure pen-based and key-based mobile data collection solutions. The first Pocket PC device available with multiple keyboard options the PDT 8100 is a versatile large-screen handheld that delivers the functionality of Pocket PC with the convenience of tactile key-based data entry.
PDT 8146 Options
Symbol PDT 8146 (PDT8146-T5BA60WW)
PDT 8146, RF Portable Data Terminal (Integrated Spectrum24 WLAN radio: 11 Mbps Direct Sequence, Integrated 1D laser scan engine, XScale Processor with Windows Mobile 2003, 320 x 240 1/4 VGA color, 64MB RAM/64MB ROM, 37 key Quick Grip Compatible and Worldwide)
Symbol PDT 8146 (PDT8146-T5BA30WW)
PDT 8146, RF Portable Data Terminal (Integrated Spectrum24 WLAN radio: 11 Mbps Direct Sequence, Integrated 1D laser scan engine, XScale Processor with Windows Mobile 2003, 320 x 240 1/4 VGA color, 64MB RAM/64MB ROM, 37 key and Worldwide)
Symbol PDT 8146 (PDT8146-T5BA70WW)
PDT 8146, RF Portable Data Terminal (Integrated Spectrum24 WLAN radio: 11 Mbps Direct Sequence, Integrated 1D laser scan engine, XScale Processor with Windows Mobile 2003, 320 x 240 1/4 VGA color, 64MB RAM/64MB ROM, 47 key Quick Grip Compatible and Worldwide)
Symbol PDT 8146 (PDT8146-T5BA50WW)
PDT 8146, RF Portable Data Terminal (Integrated Spectrum24 WLAN radio: 11 Mbps Direct Sequence, Integrated 1D laser scan engine, XScale Processor with Windows Mobile 2003, 320 x 240 1/4 VGA color, 64MB RAM/64MB ROM, 28 key Quick Grip Compatible and Worldwide)
Specs: Intel XScale 400 MHz - 64MB RAM / 64MB Flash - Alphanumeric Quick Grip Compatible Keyboard - Color Display - Windows - Laser Standard Range
Symbol PDT 8146 (PDT8146-T5BA40WW)
PDT 8146, RF Portable Data Terminal (Integrated Spectrum24 WLAN radio: 11 Mbps Direct Sequence, Integrated 1D laser scan engine, XScale Processor with Windows Mobile 2003, 320 x 240 1/4 VGA color, 64MB RAM/64MB ROM, 47 key and Worldwide)
Symbol PDT 8146 (PDT8146-T5BA20WW)
PDT 8146, RF Portable Data Terminal (Integrated Spectrum24 WLAN radio: 11 Mbps Direct Sequence, Integrated 1D laser scan engine, XScale Processor with Windows Mobile 2003, 320 x 240 1/4 VGA color, 64MB RAM/64MB ROM, 28 key and Worldwide)
Symbol PDT 8146 (PDT8146-T4BA70WW)
PDT 8146, Wireless Portable Data Terminal (11 Mbps, XScale, 1D Imager, Pocket PC 2002, Color Display, 64MB RAM, 64MB ROM and 47 key Keypad with Quick Grip Ready)
Symbol PDT 8146 (PDT8146-T4BA60WW)
PDT 8146, Wireless Portable Data Terminal (11 Mbps, XScale, 1D Imager, Pocket PC 2002, Color Display, 64MB RAM, 64MB ROM and 37 key Keypad with Quick Grip)
Symbol PDT 8146 (PDT8146-T4BA50WW)
PDT 8146, Wireless Portable Data Terminal (11 Mbps, XScale, 1D Imager, Pocket PC 2002, Color Display, 64MB RAM, 64MB ROM and 28 key Keypad with Quick Grip)
Symbol PDT 8146 (PDT8146-T4BA40WW)
PDT 8146, Wireless Portable Data Terminal (11 Mbps, XScale, 1D Imager, Pocket PC 2002, Color Display, 64MB RAM, 64MB ROM and 47 key Keypad)
Specs: Intel XScale 64 MB RAM - 64 MB Flash - 47 Keys - Wireless LAN
Symbol PDT 8146 (PDT8146-T4BA30WW)
PDT 8146, Wireless Portable Data Terminal (11 Mbps, XScale, 1D Imager, Pocket PC 2002, Color Display, 64MB RAM, 64MB ROM and 37 key Keypad)
Symbol PDT 8146 (PDT8146-T4BA20WW)
PDT 8146, Wireless Portable Data Terminal (11 Mbps, XScale, 1D Imager, Pocket PC 2002, Color Display, 64MB RAM, 64MB ROM and 28 key Keypad)
Symbol PDT 8146 (PDT8146-T2A940US)
PDT 8146, Portable Data Terminal (11 Mbps Spectrum 24 Version, 64MB RAM, 32MB ROM, 1D-HP Barcode scanner, Merlin, Monochrome Display and 47 key Keyboard)
Symbol PDT 8146 (PDT8146-T2A930US)
PDT 8146, Portable Data Terminal (11 Mbps, 1D Scanner, Monochrome Display, 64MB RAM, 32MB ROM, Merlin and 37 key Keypad)
Symbol PDT 8146 (PDT8146-T2A920US)
PDT 8146, Portable Data Terminal (11 Mbps Spectrum 24 Version, 64MB RAM, 32MB ROM, 1D Barcode scanner, Merlin, Monochrome Display and 28 key Keyboard)
Symbol PDT 8146 (PDT8146-J5BA70WW)
PDT 8146, Wireless Portable Data Terminal (Integrated Spectrum24 WLAN radio: 11 Mbps Direct Sequence, Omnidirectional 1D and 2D Imager engine, XScale Processor with Windows Mobile 2003, 320 x 240 1/4 VGA color, 64MB RAM/ 64MB ROM, 47 key Quick Grip Compatible and Worldwide)
Symbol PDT 8146 (PDT8146-J5BA60WW)
PDT 8146, Wireless Portable Data Terminal (Integrated Spectrum24 WLAN radio: 11 Mbps Direct Sequence, Omnidirectional 1D and 2D Imager engine, XScale Processor with Windows Mobile 2003, 320 x 240 1/4 VGA color, 64MB RAM/ 64MB ROM, 37 key Quick Grip Compatible and Worldwide)
Symbol PDT 8146 (PDT8146-J5BA40WW)
PDT 8146, Wireless Portable Data Terminal (Integrated Spectrum24 WLAN radio: 11 Mbps Direct Sequence, Omnidirectional 1D and 2D Imager engine, XScale Processor with Windows Mobile 2003, 320 x 240 1/4 VGA color, 64MB RAM/ 64MB ROM, 47 key and Worldwide)
Symbol PDT 8146 (PDT8146-J5BA30WW)
PDT 8146, Wireless Portable Data Terminal (Integrated Spectrum24 WLAN radio: 11 Mbps Direct Sequence, Omnidirectional 1D and 2D Imager engine, XScale Processor with Windows Mobile 2003, 320 x 240 1/4 VGA color, 64 MB RAM/64 MB ROM, 37 key and Worldwide)
Symbol PDT 8146 (PDT8146-J4BA60WW)
PDT 8146, Wireless Portable Data Terminal (11 Mbps, Imager, Merlin, Color Display, 64MB RAM, 64MB ROM, 37 key Keypad and WW)
Symbol PDT 8146 (PDT8146-J4BA40WW)
PDT 8146, Wireless Portable Data Terminal (11 Mbps, Imager, XScale, Pocket PC 2002, Color Display, 64MB RAM, 64MB ROM and 47 key Keypad)
Symbol PDT 8146 (PDT8146-J4BA30WW)
PDT 8146, Wireless Portable Data Terminal (11 Mbps, Imager, XScale, Pocket PC 2002, Color Display, 64MB RAM, 64MB ROM and 37 key Keypad)
Symbol PDT 8146 (PDT8146-D5BA40WW)
PDT 8146, Wireless Portable Data Terminal (PDT 8146 XScale, Non-Scanning microD, S24 11Mbps, Windows Mobile 2003, Color Display, 64MB RAM/ROM and 47 key Keypad)
Recommended Accessories
Motorola (23844-00-00R)
US AC Line Cord - 7.5' Length - Compatible with power supplies (Part# KT-14000-148R), (Part# 50-14000-241R), and (Part# PWRS-14000-148R)
In Stock: Ships Today
$16.30
+ Add to Quote
Global Technology Systems Symbol Replacement Battery (HS1700-LI19)
Symbol Replacement Battery, Battery (1950 mAh, Lithium Ion) for the SPT1700, PPT2800 and PDT8100. OEM Part Number: (Part# 21-58236-01)
In Stock: Ships Today
$34.40
+ Add to Quote
Symbol (11-43912-03R)
Stylus (Tethered, 3 Pack) for the 18/28/88XX
In Stock: Ships Today
$22.00
+ Add to Quote
Symbol MC67 Accessories (50-16000-678R)
MC67 Accessories, AC Line Cord, 36"L grounded, three wire. Associated Countries: Brazil, United States. For power supplies KT-14000-148R and 50-14000-241R.
In Stock: Ships Today
$16.30
+ Add to Quote
Symbol Mobile Computer Accessories (21-98686-01R)
Mobile Computer Accessories, Strap (8.5 Length, Front)
In Stock: Ships Today
$12.90
+ Add to Quote
Protect Your Product
Symbol Service Contract - 1 year (SCB-PDT8146-10)
Service Contract - 1 year, Service (1 Year Service Center Repair, PDT8146 3 Day Turnaround - Bronze Depot)
Ships in 3-5 Days
$133.60
+ Add to Quote

Symbol PDT 8146 Details

Rugged Mobile Computing, Maximum Mobility

The PDT 8146 from Symbol Technologies is a compact, ergonomic Pocket PC mobile computing device with integrated wireless communications and barcode data capture. Created to meet the needs of mobile workers, the PDT 8146 is rugged enough for use anywhere along the supply chain, and provides the speed, power and functionality needed to effectively manage data at the point of activity.

Features and Functionality

The PDT 8146 features the Intel® XScale processor and the Microsoft® Pocket PC operating system. This combination, plus the custom Symbol ASIC, enables the PDT 8146 to deliver the high performance, low power consumption and fast throughput business applications demand. Flexible memory options, a crisp, color VGA display—the largest available in this product class — and a host of enhanced multimedia capabilities provide the capacity for advanced mobile solutions and application flexibility.

The PDT 8146 offers Wireless Local Area Network (WLAN), Wireless Wide Area Network (WWAN) specifically GPRS and dual-mode GPRS/WLAN options, or Wireless Personal Area Network (WPAN) communication options, enabling the delivery of information when and where it's needed—whether it's checking on an order while at a customer site or downloading route data prior to driver departure. And, with its integrated barcode scanner, touch-screen and 23-key keypad, the PDT 8146 facilitates convenient data management for any job, which translates into increased accuracy and enhanced productivity.

Durable and Dependable

Designed to exceed real-life use and abuse, the PDT 8146 is one of the most rugged handheld computing devices available. It is shock tested and built to survive multiple 5 ft./1.5 m drops to concrete, and sealed against dust and moisture to industry standard IP54. The world-class durability and operational dependability of the PDT 8146 reduces down time and helps ensure maximum return on investment.

Reliability, functionality and flexibility make the PDT 8146 the device of choice for mobile businesses in a variety of industries. It is ideal for route accounting and supply chain applications and has quickly become a top mobile solution in retail, government and logistics. An extensive line of accessories and peripherals enables a complete solution for a broad range of application needs.

To learn how the PDT 8146 can work for you, or to find out more about Symbol's products and services, contact us at any of the locations listed on the back panel, or visit www.symbol.com/mobile.

PDT 8146 Features

PDT 8146 Benefits

Rugged construction

Durable enough to operate in harsh environments and tolerate the rigors of everyday use

WLAN, WWAN, or WPAN communication

Efficient information exchange for maximum productivity

WWAN: GPRS and dual-mode GPRS/WLAN support

Anytime, anywhere wireless connectivity beyond the enterprise

Integrated Symbol scan engine

High-performance data capture minimizes input error

Intel® XScale™ PXA250 processor @ 400 MHz

Premium performance and functionality including support for video and audio

Microsoft® Pocket PC 2002

Familiar, flexible platform for users and developers; upgradeable for investment protection

128 MB RAM/64 MB ROM

Ample storage capacity for data and applications

3.9 in./99mm, 1/4 VGA color display

Large, bright, easy to read display for indoor and outdoor use

User-accessible CompactFlash™ card slot

Expand memory or functionality

IrDA and RS-232 ports

Enables data transfer to peripherals such as printers

USB client

"Plug and play" connectivity with USB V1.1

PDT 8146 Series Specification Highlights

PDT 8146 Physical Characteristics:

Dimensions

Overall: 7.25 in. L x 3.6 in. W x 1.75 in. D 184 mm L x 91.4 mm W x 44.5 mm D

Grip Area:

3.53 in. W x 1.35 in. D 89.7 mm W x 34.3 mm D

Weight (including battery):

17.5 oz /496 g (batch version) 20.8 oz /589 g (WLAN version) 23 oz/652 g (WWAN version)

Drop Specification:

5 ft. / 1.5 m to concrete

Tumble Specification:

.5M: 3000 Cycles (6000 drops) 1M: 750 Cycles (1500 drops)

Display:

3.9 in./99 mm, 1/4 VGA (320 x 240 portrait) with 64k color

Battery:

7.4 V 1130 mAh lithium-ion

Environmental Sealing:

IP54 (industry standard for dust and water sealing)

Operating Temperature:

14º to 122º F/-10º to 50º C (or better depending on the application)

Storage Temperature:

-13º to 158º F/-25º to 70º C

Humidity:

5% to 90% relative humidity (noncondensing)

Electrostatic Discharge (ESD):

8 kVdc air; 4 kVdc contact

Expansion Capabilities:

Type 2 PC (internal); Type 2 CF (user-accessible)

Back-lit Display:

Yes, CCFL (color)

Keypad:

23-key

PDT 8146 Performance Characteristics:

CPU:

Intel® XScale™ @ 400 MHz

Operating Platform:

Microsoft® Pocket PC 2002 Premium Edition

Memory:

128 MB RAM/64 MB ROM

Application Development:

Fully compatible with Microsoft SDK for Pocket PCs; Symbol SDK available to support barcode scanning

Communications:

IrDA 1.1; RS-232, USB V1.1

Wireless Data Communications

Wireless Local Area Network:

Optional IEEE standards-based Spectrum24 802.11b

Wireless Wide Area Network:

Optional GPRS, dual mode WLAN/WWAN

Data Rate:

11 Mbps (direct sequence)

Frequency Range:

Country dependent; typically 2.4 to 2.5 GHz

Output Power:

100 mW U.S.; 100 mW international

Antenna (Internal):

WLAN; WWAN; WWAN/WLAN

Wireless Personal Area Network (WPAN):

Optional 3rd party Socket Bluetooth™ module

PDT 8146 Peripherals and Accessories

Cradles:

1-slot serial charge cradle w/spare battery charging; 1-slot modem cradle w/spare battery charging; 4-slot USB/Ethernet charge cradle w/spare battery charging; 4-slot charge cradle with and without spare battery charging; Vehicle cradle (spare battery charge, terminal charger data interface)

Communication and Charging Cables:

DEX cable; auto-charge cable; serial/charge cable; printer cables; USB charge cable

Speaker/Microphone:

Integrated, plus headset jack, voice recognition capable

Magnetic Stripe Reader:

Snap-on serial connection swipe reader attachment

4-Slot Universal Battery Charger (UBC):

Simultaneous charge of 1-4 batteries; requires adapters for PDT 8146 batteries

PDT 8146 Other Accessories:

Snap-on land line modem; carrying case; portable printer (8.5 in. format) with terminal slot

PDT 8146 Regulatory:

Electrical Safety:

Certified to UL 1950, CSA C22.2 No 950, EN60950/IEC950

EMI/RFI:

FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Australian SMA

Laser Safety:

CDRH Class II, IEC Class 2
