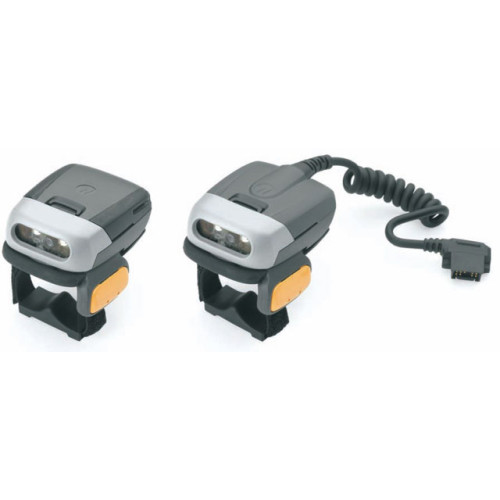

Symbol RS507 Ring Imager Barcode Scanners

Best in class scanning performance

Whether your workers are handling and sorting packages, picking or loading shipments in the warehouse or scanning barcodes to meet government regulations for tracking and tracing of product, the Symbol RS507 Ring Imager Hands-Free Imager delivers the superior blend of technology, form and function your workers need to achieve a new level of scanning efficiency in your operations.
  • Hands-free scanning
  • Bluetooth cordless freedom
  • Optional corded WT4000 adapter
  • Reads 1D and 2D barcodes
  • Exceptional motion tolerance
  • Bright central dot ensures quick, accurate scanning
  • Multiple field replaceable components
  • Compatible with Motorola"s Mobility Software Platform (MSP)
  • Motorola Interactive Sensor Technology (IST)
  • New manual triggering mechanism with easy swivel
  • Magnesium chassis with 6 ft. drop specification,
  • IP54 sealing,
  • Extended operating temperature range (-4 degrees to 131 degrees F/-20 degrees to 55 degrees C)
  • Dual rear LEDs and high power beeper
Narrow Your Search

Form Factor

Scanner Capability

Connectivity

Scanner Type

Color

Scan Pattern

Included Cables
?

Communication Type
?

Ruggedness

Embedded Scale
?

RS507 Ring Imager Options
Motorola RS507 Ring Imager (RS507-IM20000CTWR)
RS507 Ring Imager, Hands-Free - 2D Imager - 2-finger mounted - Manual trigger - WT4090 cable - Requires extended battery on WT4090
Specs: Wireless - Imager
In Stock: Ships Today
$892.60
+ Add to Quote
Motorola RS507 Ring Imager (RS507-IM200000TWR)
RS507 Ring Imager, HANDS FREE RING SCANNER - 1D/2D IMAGER - BLUETOOTH - TRIGGER - CORD AND BATTERY SOLD SEPARATELY - (REQUIRES CORD OR BATTERY)
Specs: Wireless - 24" Scan Distance - 1D, 2D - LED - Imager - Omnidirectional - Bluetooth
Ships in 3-5 Days
$785.40
+ Add to Quote
Motorola RS507 Ring Imager (RS507-IM20000STWR)
RS507 Ring Imager, Hands-Free Cordless - 2D Imager - Bluetooth Interface - 2-finger mounted - Manual trigger - Standard battery
Specs: Wireless - Imager
Motorola RS507 Ring Imager (RS507-IM20000SNWR)
RS507 Ring Imager, Hands-Free 2D Imager, 2-finger mounted barcode imager without manual trigger for auto-triggering using the Intelligent Sensing Technology (IST) with standard capacity battery for Bluetooth interface to supported mobile computers.
Specs: Wireless - Imager
Motorola RS507 Ring Imager (RS507-IM20000ENWR)
RS507 Ring Imager, Ring Scanner - Hands-Free - Cordless - 2D Imager Scanner - Bluetooth - No Trigger - Extended Battery
Specs: Wireless - Imager
Motorola RS507 Ring Imager (RS507-DL20000STWR)
RS507 Ring Imager, Hands-Free 2D Imager DL focus, 2-finger mounted barcode imager with manual trigger and standard capacity battery for cordless Bluetooth interface to supported mobile computer.
Specs: Wireless1D, 2D - Laser - Imager - Omnidirectional - Bluetooth
Symbol RS507 Ring Imager (RS507-IM20000ETWR)
RS507 Ring Imager, Hands-Free 2D Imager, 2-Finger mounted barcode imager with manual trigger, Bluetooth. Includes Extended Battery.
Symbol RS507 (RS507-DL200000TWR)
RS507, Hands-Free Imager (Trigger, No Battery, DL)
Symbol RS507 Ring Imager (RS507-IM20000ST06)
RS507 Ring Imager, Hands-Free 2D Imager, 2-finger mounted barcode imager with manual trigger and standard capacity battery for cordless Bluetooth interface to supported mobile computer. iOS compatible.
Symbol RS507 Ring Imager (RS507-DL20000ENWR)
RS507 Ring Imager, Hands-Free 2D Imager DL Focus, 2-finger mounted barcode imager without manual trigger for auto-triggering using the Intelligent Sensing Technology (IST) with extended capacity battery for Bluetooth interface to supported mobile computer
Specs: Motorola RS507 Wearable Barcode Reader
Motorola RS507 Ring Imager (RS507-DL20000CTWR)
RS507 Ring Imager, Hands-Free 2D Imager DL focus, 2-finger mounted barcode imager with manual trigger. Requires battery.
Specs: Motorola RS507 Wearable Barcode Reader
Recommended Accessories
Motorola (KT-CLMPT-RS507-01R)
Trigger Swivel - Strap and Buckle sold separately - Compatible with RS507
In Stock: Ships Today
$85.70
+ Add to Quote
Motorola (KT-STRPT-RS507-10R)
Strap for the RS507 (Triggered Configuration) - Pack of 10
In Stock: Ships Today
$50.60
+ Add to Quote
Motorola (SAC5070-800CR)
8-slot battery charger - Includes PoEr supply and AC line cord - Compatible with RS507 standard and extended capacity batteries
In Stock: Ships Today
$437.00
+ Add to Quote
Motorola (KTBTRYRS50EAB02-01)
Replacement Battery - Extended 1940 mAh - Compatibel with RS507
In Stock: Ships Today
$66.20
+ Add to Quote
Motorola (ADPTRWT-RS507-04R)
Tethered Module - Corded Adapter
In Stock: Ships Today
$148.10
+ Add to Quote

Symbol RS507 Ring Imager Details

2D IMAGER ENGINE

Ambient light immunity Indoor: 450 ft. candles (4,845 lux)
Outdoor: 9,000 ft. candles (96,900 lux)

PERFORMANCE CHARACTERISTICS

Pitch1 ? 60? from normal

Roll2 +/- 35 degrees from vertical

Yaw3 ? 50? from normal

PHYSICAL CHARACTERISTICS

Dimensions (HxWxD) Triggerless, standard battery:
1.16? (2.9 cm) H x 2.1? (5.3 cm) W x 2.92? (7.4 cm) L

Triggerless, extended battery:
1.42? (3.6 cm) H x 22.1? (5.3 cm) W x 2.92? (7.4 cm) L

Trigger, standard battery:
1.16? (2.9 cm) H x 2.1? (5.3 cm) W x 2.92? (7.4 cm) L

Trigger, corded:
1.3? (3.3 cm) H x 2.1? (5.3 cm) W x 22.92? (7.4 cm) (w/o cord) L

Weight Triggerless, standard battery:
4.3 oz./121.4 g

Triggerless, extended battery:
5.2 oz./146.4 g

Trigger, standard battery:
4.8 oz./134.8 g

Trigger, corded: 5.0 oz./140.8 g

USER ENVIRONMENT

Drop specification 6 ft./1.8 m multiple drops to concrete across operating temperature range

Environmental sealing IP54

Operating temperature -4? to 131? F/-20? to 55? C

Storage temperature -40? to 158? F/-40? to 70? C excl. Battery

-40? to 140? F/-40? to 60? C incl. Battery

1 Pitch Controlled by dropping or raising the wrist
2 Controlled by rotating the wrist clockwise or counterclockwise
3 Controlled by rotating the wrist from left to right or vice versa
