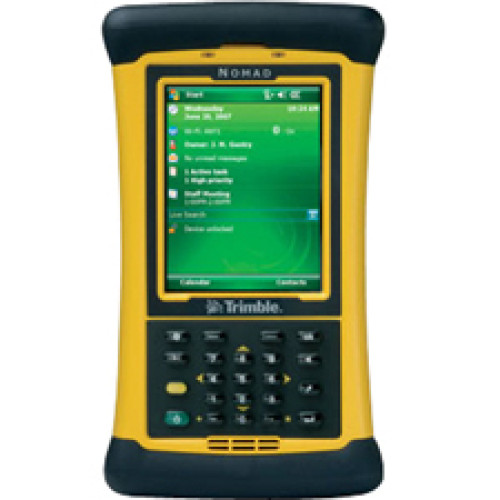

Trimble NMDAJY-111-00 Mobile Computer
Part #: NMDAJY-111-00 | SKU: TRI114649

The Trimble Nomad outdoor rugged handheld computer makes it easy to collect, save and transmit data with its many built-in capabilities. You pick the features to suit your needs. Compute your location with the integrated GPS receiver for navigation applications. Quickly track your assets with the integrated laser barcode scanner. Capture 5 megapixel color images with the integrated digital camera, and geotag the images with the GPS location, or record QVGA video. Stay connected in the field with the AT&T network compatible Nomad series. The Trimble Nomad is rugged and ready to go.

Trimble NMDAJY-111-00 Mobile Computer

Part Details: NMD 900LE - YEL, NUM, USB, Multi-Language

Need a different version of the Trimble Nomad Mobile Computer? View all 16 configurations

Additional Information

Interface Options	Bluetooth, Wi-Fi.
Manufacturer AIDC	Trimble
Model Name	Nomad
Operating System	Windows Mobile 6.1
RAM Memory	128 MB
Scanner Capability	1D
Scanner Type	Laser
Style	Full-size

Trimble Nomad Specs (pdf)

General Information

Product Type: Handheld Terminal
Product Series: 900
Brand Name: Trimble
Manufacturer: Trimble Navigation Limited
Product Model: 900LE
Product Name: Nomad Rugged Handheld Computer
Product Line: Nomad

Technical Information

Connectivity Technology: Wireless
Light Source: LED
Drop Specification: 47.24"

Physical Characteristics

Weight (Approximate): 1.30 lb

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- Nomad Handheld Terminal
- Rechargeable Li-ion Battery
- User's Guide
- Rugged Stylus with Spring-Loaded Tip
- Hand Strap
- Stylus Lanyard
- Screen Protectors
- AC Charger and International Adapters
- Getting Started CD with ActiveSync
- USB Data Cable
- USB Boot
- Standard Cap
- Nomad Handheld Terminal
- Rechargeable Li-ion Battery
- User's Guide
- Rugged Stylus with Spring-Loaded Tip
- Hand Strap
- Stylus Lanyard
- Screen Protectors
- AC Charger and International Adapters
- Getting Started CD with ActiveSync
- USB Data Cable
- USB Boot
- Standard Cap
Certifications & Standards:
- FCC
- CE/R & TTE
- IC (Canada)
- C-Tick
- PTCRB
- GCF Compliant
- Section 508 Compliant
- CCX v4 ASD
- MIL-STD-461ERE102
- MIL-STD-810F
- IEC-529
- IP68
- MIL-STD-461E RS103
- WiFi

Memory

Flash Memory: 1 GB
Standard Memory: 128 MB
Memory Card Slot: Yes
Memory Card Supported:
- Secure Digital (SD) Card
- CompactFlash (CF) Card
- Secure Digital High Capacity (SDHC)

Network & Communication

Bluetooth: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11g
GPS: Yes

Processor & Chipset

Processor Manufacturer: Intel
Processor Speed: 806 MHz
Processor Type: XScale

Display & Graphics

Screen Mode: VGA
Screen Size: 3.5"
Screen Resolution: 480 x 640

Battery Information

Battery Capacity: 5000 mAh
Battery Included: Yes
Battery Chemistry: Lithium Ion (Li-Ion)

Software

Operating System: Windows Mobile 6.1

Keyboard/Keypad

Keyboard Type: Numeric

Touchscreen Information

Touchscreen: Yes

Warranty

Limited Warranty: 1 Year

Extended Details
