Additional Information
| Manufacturer | Tripp-Lite |
|---|---|
| Model Name | Parts |
General Information
- Product Type: Line-interactive UPS
- Product Series: AVR
- Brand Name: Tripp Lite
- Manufacturer: Tripp Lite

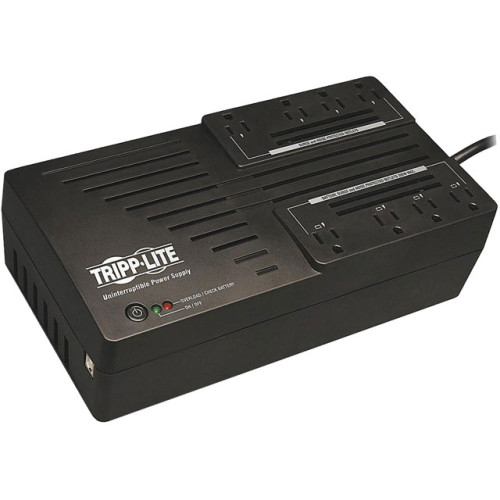

- Product Name: AVR 550VA Mini-Desktop UPS
- Packaged Quantity: 1 Each
Technical Information
- Receptacles: 4 x NEMA 5-15R
- Plug/Connector Type: NEMA 5-15P
- Cord Length: 6 ft
- Dataline Protection: RJ-11
Physical Characteristics
- Height: 3.5"
- Width: 11.3"
- Depth: 6"
- Form Factor: Mini Desktop
- Weight (Approximate): 10.96 lb
- Color: Black
Interfaces/Ports
- USB: Yes
Other
- Country of Origin: China
- Package Contents:
- AVR 550VA Mini-Desktop UPS
- UPS System
- PowerAlert Software, USB cable, Phone cable
- Instruction manual with warranty information
- AVR 550VA Mini-Desktop UPS
- UPS System
- PowerAlert Software, USB cable, Phone cable
- Instruction manual with warranty information
- Recycled: No
- Recycled Content: 0%
- Post-consumer-waste%: 0%
- Assembly Required: No
- Certifications & Standards:
- Tested to UL1778 (USA)
- cUL1778 (Canada)
- NOM (Mexico)
- FCC Class B (Emissions)
- FCC Part 68
- Industry Canada (Telecommunications)
- Software Included: PowerAlert UPS monitoring software
- Additional Information:
- Low voltage transfer to battery power: Switches to battery power as line voltage drops to 83V or lower / Resets to AC mode as line voltage increases to 87V or higher
- High voltage transfer to battery power: Switches to battery power as line voltage increases to 147V or higher / Resets to line power as line voltage drops to 143V or less
- Cold Start: Yes, inverter can be "cold started" to enable temporary AC output during a power failure
- Switches: Combination power off / on / self-test push button switch
- Typical Application: Basic PCs for home / home-office use, network workstations, audio/video equipment, home entertainment systems and other sensitive electronic devices.
- WatchDog compatibility: Yes, compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application / OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications
- Supports entry-level PC systems up to 17 minutes during blackout conditions
- Form factors supported: Ultra-compact desk/floor mount , mounting flanges enable wall-mount installation
- 8 output receptacles, 2 of which are widely spaced to accommodate large transformer plugs without blocking outlets
- 4 outlets feature full battery support and surge suppression, protecting computers, monitors and other vital system components from loss of power
- 4 additional outlets with surge suppression only are ideal for printers and other peripherals not requiring battery support
- HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows, Mac OS X and Linux
Power Description
- Load Capacity (VA): 550 VA
- Load Capacity (Watt): 300 W
- Input Voltage: 110 V AC
- Output Voltage: 120 V AC
- Input Current: 12 A
- Surge Energy Rating: 400 J
- Waveform Type: Pulse-width Modulated Sine Wave
Battery Information
- Maximum Battery Recharge Time: 4 Hour
- Backup/Run Time (Half Load): 10 Minute
- Backup/Run Time (Full Load): 3 Minute
- Battery Life: 6 Year
- Hot Swappable: Yes
Controls/Indicators
- Status Indicators:
- 2 LEDs indicate:
- Line power
- Battery power
Management
- Alarm:
- Battery Backup
- Self-test Operation
Warranty
- Limited Warranty: 3 Year
Environmental Conditions
- Temperature: 122°F (50°C)
