Tripp-Lite Products
Part #: ECO550UPS | SKU: TRI257351

Products and parts from Tripp-Lite.

Tripp-Lite Products

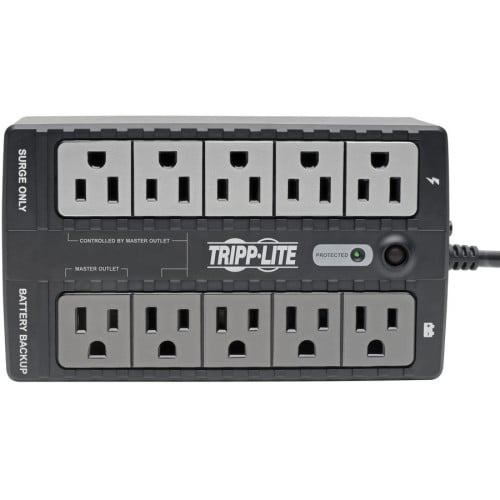

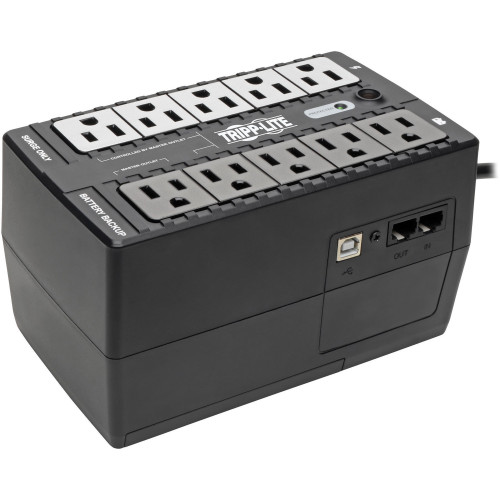

Part Details: Tripp Lite UPS 550VA 300W Eco Green Battery Back Up Compact 120V USB RJ11 - Desktop, Wall Mountable - 15 Hour Recharge - 1.20 Minute Stand-by - 120 V AC Input - 110 V AC, 115 V AC, 120 V AC Output - 10 x NEMA 5-15R
MSRP: $149.76 Price: $108.83

Additional Information

Manufacturer Tripp-Lite
Model Name Parts
Product Condition New
Type Power Supply

Technical Information

  • Receptacles: 8 x NEMA 5-15R
  • Plug/Connector Type: NEMA 5-15P
  • Protection Type:
    • EMI / RFI
    • Brownout
    • Power Failure
  • Cord Length: 6 ft
  • Dataline Protection: RJ-11

General Information

  • Product Type: Standby UPS
  • Product Series: ECO
  • Brand Name: Tripp Lite
  • Manufacturer: Tripp Lite
  • Product Model: ECO550UPS
  • Product Name: ECO550UPS 550VA Desktop UPS
  • Packaged Quantity: 1 Each

Physical Characteristics

  • Height: 3.1"
  • Width: 5.7"
  • Depth: 10.9"
  • Form Factor:
    • Desktop
    • Wall Mountable
  • Weight (Approximate): 6.60 lb
  • Color: Black

Interfaces/Ports

  • USB: Yes

Other

  • Country of Origin: China
  • Package Contents:
    • 550VA Standby UPS
    • ECO550UPS UPS System
    • USB Cable
    • Instruction manual with warranty information
    • 550VA Standby UPS
    • ECO550UPS UPS System
    • USB Cable
    • Instruction manual with warranty information
  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • ENERGY STAR
  • Recycled: No
  • Recycled Content: 0%
  • Post-consumer-waste%: 0%
  • Assembly Required: No
  • Certifications & Standards:
    • Tested to :
    • UL1778 (USA)
    • CSA (Canada)
    • NOM (Mexico)
    • Class B (EMI)
    • FCC Part 68 / Industry Canada (telecommunication)
  • Software Included: PowerAlert software available via free download
  • Additional Information:
    • Keyhole mounting slots enable wall-mount installation
    • Compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application / OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications
    • Switches to battery power as line voltage decreases to 99 volts or less. Resets back to line power mode as line voltage increases to 104V or higher
    • Switches to battery power as line voltage increases to 139V or higher. Resets back to line power mode when line voltage decerases to 135V or lower
    • Basic desktop PCs for home/home-office use, network terminals, audio/video and home entertainment systems and other sensitive electronic devices
    • 550VA / 300 watt UPS provides battery-derived AC output during brownouts and power failures to support entry-level desktop computer with 15 inch LCD monitor up to 17 minutes

Controls/Indicators

  • Status Indicators:
    • 2 LED Indicator:
    • Line power
    • Battery power status
    • Main Power Switch Controls :
    • ON
    • OFF
    • SELF-TEST
    • ALARM CANCEL
    • Second switch enables "ECO" outlet switching

Power Description

  • Load Capacity (VA): 550 VA
  • Load Capacity (Watt): 300 W
  • Input Voltage: 110 V AC
  • Output Voltage: 120 V AC
  • Surge Energy Rating: 420 J
  • Waveform Type: Sine Wave

Management

  • Alarm:
    • On Battery
    • Low Battery
    • Overload

Environmental Conditions

  • Temperature: 122°F (50°C)
  • Thermal Dissipation: 4 BTU/h
  • Sound Emission: 40 dB

Battery Information

  • Maximum Battery Recharge Time: 15 Hour
  • Battery Life: 6 Year

Warranty

  • Limited Warranty: 3 Year
