Tripp-Lite Products
Part #: OMNI900LCD | SKU: TRI257433

Products and parts from Tripp-Lite.

Tripp-Lite Products

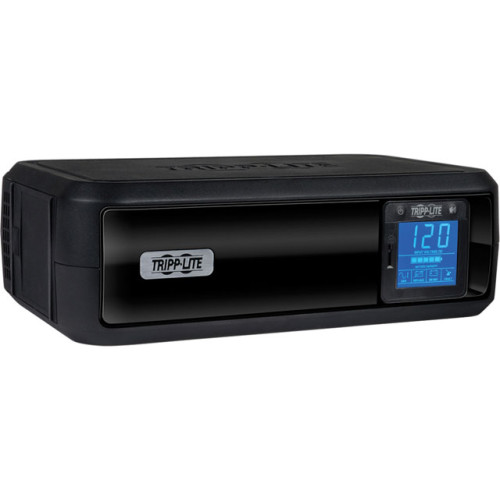

Part Details: Tripp Lite UPS 900VA 475W Battery Back Up Tower LCD AVR 120V USB - 900VA/475W - 3 Minute Full Load - 4 x NEMA 5-15R - Battery/Surge-protected, 4 x NEMA 5-15R - Surge-protected
MSRP: $243.00 Price: $176.59
In Stock

Additional Information

Manufacturer Tripp-Lite
Model Name Parts
Product Condition New

General Information

  • Product Type: Line-interactive UPS
  • Brand Name: Tripp Lite
  • Manufacturer: Tripp Lite
  • Product Model: OMNI900LCD
  • Product Name: OmniSmart OMNI900LCD 900 VA Tower UPS
  • Product Line: OmniSmart

Technical Information

  • Receptacles: 4 x NEMA 5-15R
  • Plug/Connector Type: NEMA 5-15P

Physical Characteristics

  • Height: 11.8"
  • Width: 3.7"
  • Depth: 7.2"
  • Form Factor: Tower
  • Weight (Approximate): 14.90 lb
  • Color: Black

Interfaces/Ports

  • USB: Yes

Other

  • Package Contents:
    • OmniSmart OMNI900LCD 900 VA Tower UPS
    • Manual with Warranty Information
    • OmniSmart OMNI900LCD 900 VA Tower UPS
    • Manual with Warranty Information
  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • UL1778 (TUV)
    • cUL (TUV)
    • NOM
    • FCC Class B
  • Software Included: PowerAlert software
  • Additional Information:
    • Low voltage transfer to battery power: Switches to battery power as line voltage decreases to 89V or less, switches back to AC mode as line voltage increases to 94V or higher
    • High voltage transfer to battery power: Switches to battery mode as line voltage increases to 139V or higher, switches back to AC mode as line voltage decreases to 135V or lower
    • Network monitoring port: Single built-in USB port supports on battery, low battery and power restored messaging. Interface supports timed inverter shutoff after unattended shutdown. Compatible with Tripp Lite's PowerAlert and Watchdog service software
    • Compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application / OS or hard power off/on reboot of connected equipment ideal for unattended kiosk applications
    • Switches: Includes 2 front panel switches - one main on/off power switch and one dual function "alarm cancel" / "self test" button
    • Entry-level PCs, networked workstations, point-of-sale equipment, small business phone systems, audio/video equipment and home theater systems. Ideal for sensitive electronic applications in areas where brownout conditions are common

Controls/Indicators

  • Status Indicators:
    • Front panel LCD screen with blue backlight offers:
    • Continuous input line voltage data
    • UPS status information on line power status
    • Battery power status
    • Battery charge level
    • Voltage regulation operation

Power Description

  • Load Capacity (VA): 900 VA
  • Load Capacity (Watt): 475 W
  • Input Voltage: 110 V AC
  • Output Voltage: 120 V AC
  • Input Current: 12 A
  • Surge Energy Rating: 870 J
  • Waveform Type: Pulse-width Modulated Sine Wave

Battery Information

  • Maximum Battery Recharge Time: 20 Hour
  • Backup/Run Time (Half Load): 10 Minute
  • Backup/Run Time (Full Load): 3 Minute
  • Battery Life: 6 Year
  • Hot Swappable: Yes

Management

  • Alarm: AC Input Failure

Warranty

  • Limited Warranty: 3 Year

Environmental Conditions

  • Temperature: 122°F (50°C)
