| Manufacturer | Tripp-Lite |
|---|---|
| Model Name | Parts |
General Information
- Product Type: Line-interactive UPS
- Product Series: VS
- Brand Name: Tripp Lite
- Manufacturer: Tripp Lite
- Product Name: Omni VS OMNIVS1000 UPS
- Product Line: Omni
- Packaged Quantity: 1 Each
Technical Information

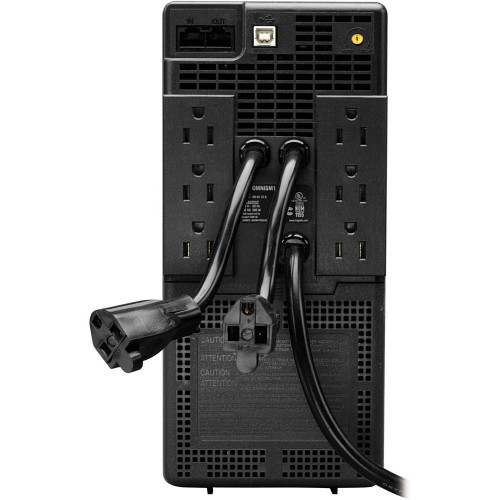

- Receptacles:
- 2 x NEMA 5-15R
- 6 x NEMA 5-15R
- Plug/Connector Type: NEMA 5-15P
- Protection Type: Surge
- Cord Length: 6 ft
- Dataline Protection: RJ-45
Physical Characteristics
- Height: 10.8"
- Width: 5.3"
- Depth: 7.3"
- Form Factor: Tower
- Weight (Approximate): 21 lb
- Color: Black
Interfaces/Ports
- USB: Yes
Other
- Country of Origin: China
- Package Contents:
- OMNIVS1000 Line Interactive UPS
- USB and telephone cable
- User manual with warranty information
- OMNIVS1000 Line Interactive UPS
- USB and telephone cable
- User manual with warranty information
- Recycled: No
- Recycled Content: 0%
- Post-consumer-waste%: 0%
- Assembly Required: No
- Certifications & Standards: UL1778 (USA), cUL (Canada), FCC Class B (emissions), NOM (Mexico), FCC Part 68 / Industry Canada (telecommunications), Conforms to IEEE 587 / ANSI C62.41 specifications
- Additional Information:
- OMNIVS1000 Uninterruptible Power Supply offers voltage regulation, surge suppression and long lasting battery support
- Supports entry level PCs up to 60 minutes during blackouts to enable shutdown without data loss
- Regulates brownouts as low as 83 volts back to usable levels without using battery power
- 6 UPS battery supported outlets, plus 2 additional surge suppression-only outlets
- USB port and cable enables unattended shutdown in the case of extended power failure
- PowerAlert software available via free download from www.tripplite.com
- Single line phone suppression protects standard dialup/DSL phone connection
- Audible alarm and 4 front panel LEDs offer complete UPS and line power status information
- 1000VA / 500 watt power handling ability supports a variety of sensitive electronic equipment
- 7 minutes full load runtime (1000VA / 500 watts), 18 minutes half load runtime (500VA / 250 watts)
- Supports battery replacement via built-in access panel
- 2 year product warranty.
- $200,000 connected equipment Insurance (USA & Canada Only).
Power Description
- Load Capacity (VA): 1000 VA
- Load Capacity (Watt): 500 W
- Input Voltage: 110 V AC
- Output Voltage: 120 V AC
- Surge Energy Rating: 480 J
- Waveform Type: Pulse-width Modulated Sine Wave
Battery Information
- Maximum Battery Recharge Time: 4 Hour
- Backup/Run Time (Half Load): 18 Minute
- Backup/Run Time (Full Load): 7 Minute
- Battery Life: 6 Year
- Battery Chemistry: Sealed Lead Acid
Controls/Indicators

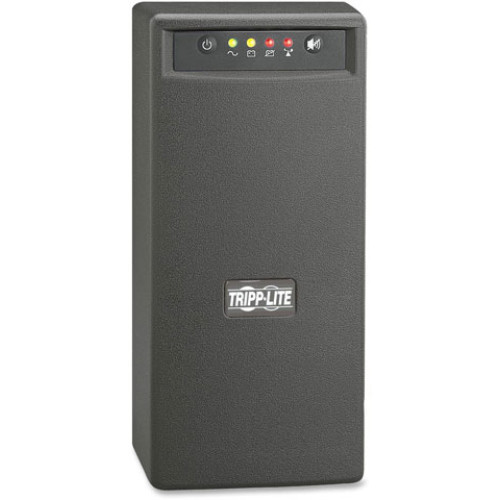

- Status Indicators: 4 front panel LEDs indicate line power status, battery power status, battery low/replace status and voltage regulation operation
Warranty
- Limited Warranty: 3 Year
Management
- Alarm: On Battery
Environmental Conditions
- Temperature: 122°F (50°C)
