Tripp-Lite Products
Part #: OMNIVS1500XL | SKU: TRI257436

Products and parts from Tripp-Lite.

Tripp-Lite Products

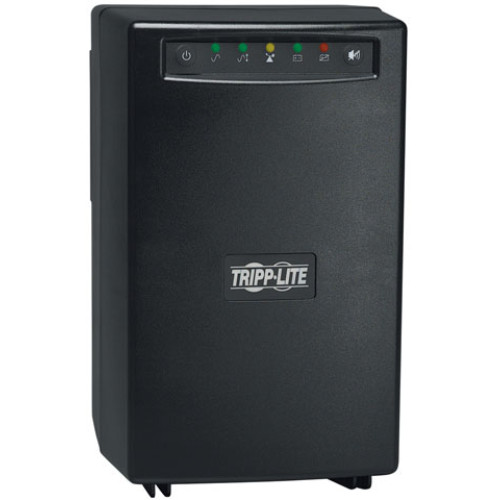

Part Details: Tripp Lite UPS 1500VA 940W Battery Back Up Tower AVR 120V RJ11 RJ45 - Tower - 4 Hour Recharge - 5 Minute Stand-by - 110 V AC Input - 120 V AC Output - 2 x NEMA 5-15R, 6 x NEMA 5-15R
MSRP: $496.08 Price: $360.48

Additional Information

Manufacturer Tripp-Lite
Model Name Parts
Product Condition New

General Information

  • Product Type: Line-interactive UPS
  • Product Series: VS
  • Brand Name: Tripp Lite
  • Manufacturer: Tripp Lite
  • Product Name: Omni VS 1500VA UPS
  • Product Line: Omni
  • Packaged Quantity: 1 Each

Technical Information

  • Receptacles:
    • 2 x NEMA 5-15R
    • 6 x NEMA 5-15R
  • Plug/Connector Type: NEMA 5-15P
  • Cord Length: 6 ft
  • Dataline Protection: RJ-45

Physical Characteristics

  • Height: 11.8"
  • Width: 7.3"
  • Depth: 7.5"
  • Form Factor: Tower
  • Weight (Approximate): 32.20 lb
  • Color: Black

Interfaces/Ports

  • USB: Yes

Other

  • Country of Origin: China
  • Package Contents:
    • OMNIVS1500XL Line Interactive UPS
    • USB and telephone cable
    • User manual with warranty information
    • OMNIVS1500XL Line Interactive UPS
    • USB and telephone cable
    • User manual with warranty information
  • Recycled: No
  • Recycled Content: 0%
  • Post-consumer-waste%: 0%
  • Assembly Required: No
  • Certifications & Standards:
    • UL1778 (USA)
    • cUL (Canada)
    • FCC Class B (emissions)
    • NOM (Mexico)
    • FCC Part 68 / Industry Canada (telecommunications)
  • Additional Information:
    • OMNIVS1500XL Uninterruptible Power Supply offers voltage regulation, surge suppression and long lasting battery support
    • Supports entry level PCs up to 75 minutes during blackouts to enable shutdown without data loss
    • Regulates brownouts as low as 75 and overvoltages to 147V back to usable 120V nominal levels without using battery power
    • 6 UPS battery supported outlets, plus 2 additional surge suppression-only outlets
    • USB port and cable enables UPS monitoring and unattended shutdown in the case of extended power failure
    • PowerAlert software available via free download from www.tripplite.com
    • Dataline surge suppression protects standard dialup/DSL or ethernet line connection
    • Audible alarm and 4 front panel LEDs offer complete UPS and line power status information
    • 1500VA power handling ability supports a variety of sensitive electronic equipment
    • 5 minutes full load runtime (1500VA), 14 minutes half load runtime (750VA)
    • Runtime is further expandable with the addition of BP24V14 external battery pack
    • Supports hot swappable battery replacement via built-in access panel
    • $200,000 connected equipment insurance (USA & Canada Only)
    • 2 year warranty

Power Description

  • Load Capacity (VA): 1500 VA
  • Load Capacity (Watt): 940 W
  • Input Voltage: 110 V AC
  • Output Voltage: 120 V AC
  • Surge Energy Rating: 480 J

Battery Information

  • Maximum Battery Recharge Time: 4 Hour
  • Backup/Run Time (Half Load): 14 Minute
  • Backup/Run Time (Full Load): 5 Minute
  • Battery Life: 6 Year
  • Hot Swappable: Yes

Controls/Indicators

  • Status Indicators: 4 front panel LEDs indicate line power status, battery power status, battery low/replace status and voltage regulation operation

Warranty

  • Limited Warranty: 3 Year

Management

  • Alarm: On Battery

Environmental Conditions

  • Temperature: 122°F (50°C)
