Additional Information
| Manufacturer | Tripp-Lite |
|---|---|
| Model Name | Parts |
General Information
- Product Type: Line-interactive UPS
- Brand Name: Tripp Lite
- Manufacturer: Tripp Lite
- Product Name: SmartPro 1000RM1U UPS
- Product Line: SmartPro
Technical Information
- Receptacles: 6 x NEMA 5-15R
- Plug/Connector Type: NEMA 5-15P
- Cord Length: 10 ft
- Emergency Power OFF: Yes
Physical Characteristics
- Height: 1.8"
- Width: 17.5"
- Depth: 16.8"
- Rack Height: 1U
- Weight (Approximate): 32 lb
Interfaces/Ports
- USB: Yes
- Total Number of Expansion Slots: 1
Other
- Package Contents:
- SmartPro 1000RM1U UPS
- SMART 1000RM1U UPS System
- Mounting hardware
- Cabling for USB & DB9 monitoring and EPO switching
- PowerAlert unattended shutdown and UPS/Power monitoring software
- Warranty information and instruction manual
- SmartPro 1000RM1U UPS
- SMART 1000RM1U UPS System
- Mounting hardware
- Cabling for USB & DB9 monitoring and EPO switching
- PowerAlert unattended shutdown and UPS/Power monitoring software
- Warranty information and instruction manual
- Certifications & Standards: UL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41 specifications
- Additional Information:
- SMART1000RM1U line interactive UPS offers battery derived sine wave AC output during power outages, voltage regulation during brownouts and overvoltages, plus network-grade AC surge suppression
- 1000VA / 640 watt power handling capability with full-time sine wave output offers guaranteed compatibility with networking, telecom and other sensitive electronic devices
- Supports 1U rackmount installation in 2 or 4 post rack enclosures, upright tower placement also supported
- Large internal batteries offer runtimes of 24 minutes at half load (500VA / 320 watts) and 10 minutes at full load (1000VA / 640 watts)
- Maintains regulated 120V nominal output during brownouts and overvoltages from 83 to 147V

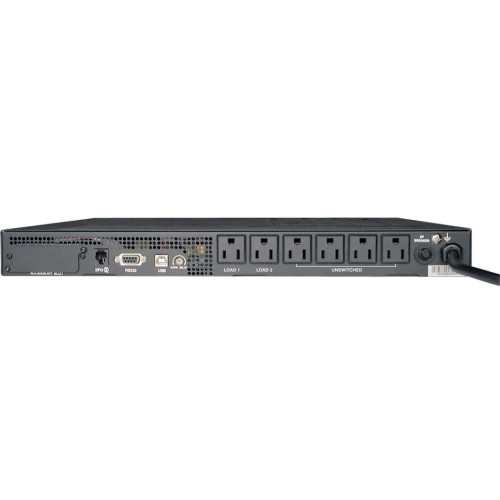

- Includes 6 UPS-supported outlets arranged in 2 individually controllable load banks (2 outlets per bank) that can be powered off and back on again via software interface
- PowerAlert UPS monitoring and unattended shutdown software enables configurable network broadcast messaging, pager & email notification, event logging and running user-defined script commands
- Offers simultaneous monitoring by up to 3 directly-connected devices through included USB, DB9 and SNMP* interfaces (*requires optional SNMPWEBCARD), or the monitoring of any number of additional UPS systems over IP with included PowerAlert monitoring software. Free PowerAlert enterprise management software is also available for select opportunies
- Communications ports support messaging of UPS and line power status, including on-battery, low-battery, power restored, AC line voltage, DC battery voltage and remaining battery capacity
- Supports timed inverter shutoff after unattended shutdown, activate self-test and UPS output power control for scheduled or immediate reboot of connected devices
- Supports Tripp Lite's WatchDog software application to restore unresponsive programs by systematically restarting applications, operating systems and ultimately rebooting completely locked computers by momentarily switching UPS power off and back on again (requires optional WATCHDOGSW)
- Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter
- Emergency Power Off (EPO) interface with cable

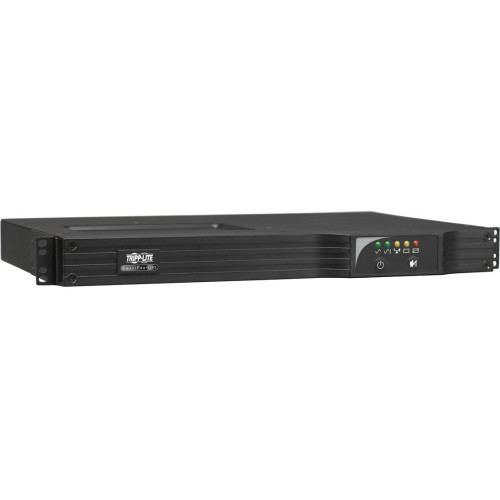

- Multi-function audible alarms and set of 5 front panel LEDs
- Network-grade AC surge suppression
- Attractive all-black color scheme
- UPS battery set ships fully assembled and ready for installation, no time consuming connection of internal batteries by user is necessary
- Two year warranty with $250,000 connected equipment insurance (USA & Canada only)
Battery Information
- Maximum Battery Recharge Time: 4 Hour
- Backup/Run Time (Half Load): 24 Minute
- Backup/Run Time (Full Load): 10 Minute
- Battery Life: 6 Year
- Battery Chemistry: Sealed Lead Acid
- Hot Swappable: Yes
Power Description
- Load Capacity (VA): 1000 VA
- Load Capacity (Watt): 640 W
- Input Voltage: 110 V AC
- Output Voltage: 120 V AC
- Waveform Type: Sine Wave
Management
- Network Management: SNMP Manageable
- Alarm:
- On Battery
- Overload
- Low Battery
Warranty
- Limited Warranty: 2 Year
Controls/Indicators
- Status Indicators: 5 front panel LEDs - Green POWER LED, 3 color BATTERY CHARGE LED, 3 color OUTPUT LOAD LEVEL LED, red BATTERY WARNING LED.
Environmental Conditions
- Temperature: 104°F (40°C)
