Additional Information
| Manufacturer | Tripp-Lite |
|---|---|
| Model Name | Parts |
Technical Information
- Receptacles:
- 4 x NEMA 5-15R
- 4 x NEMA 5-20R
- Plug/Connector Type: NEMA 5-20P
- Protection Type:
- Over Voltage
- Under Voltage
- Cord Length: 10 ft
- Emergency Power OFF: Yes
General Information
- Product Type: Line-interactive UPS
- Brand Name: Tripp Lite
- Manufacturer: Tripp Lite

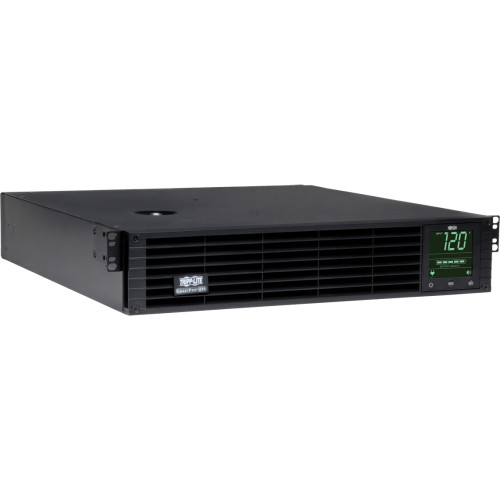

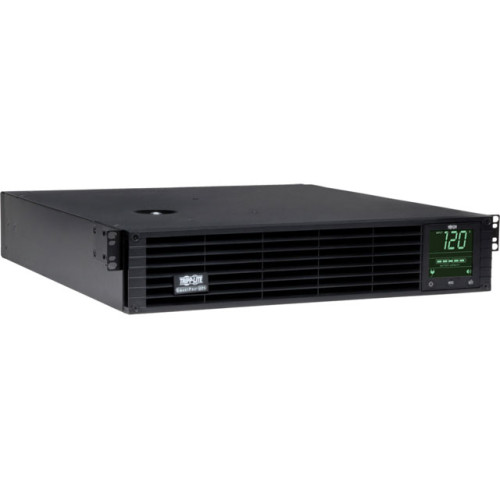

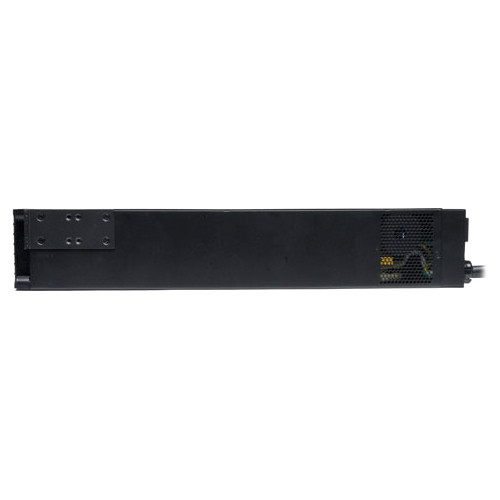

- Product Name: SMART2200RMXL2U UPS System
- Product Line: SmartPro
- Packaged Quantity: 1 Each
Physical Characteristics
- Height: 3.5"
- Width: 17.5"
- Depth: 19"
- Rack Height: 2U
- Weight (Approximate): 64 lb
Interfaces/Ports
- USB: Yes
- Serial Port: Yes
Other
- Country of Origin: China
- Package Contents:
- SMART2200RMXL2U UPS System
- Poweralert Software CD-ROM
- USB, Serial And EPO Cabling
- Owner's Manual
- SMART2200RMXL2U UPS System
- Poweralert Software CD-ROM
- USB, Serial And EPO Cabling
- Owner's Manual
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Recycled: No
- Certifications & Standards:
- UL1778 (USA)
- CSA (Canada)
- NOM (Mexico)
- FCC Part 15 Category A (EMI)
Power Description
- Load Capacity (VA): 2200 VA
- Load Capacity (Watt): 1600 W
- Input Voltage: 110 V AC
- Output Voltage:
- 120 V AC
- 110 V AC
- Waveform Type: Sine Wave
Controls/Indicators
- Status Indicators:
- 5 Front Panel Leds:
- Green Power Led
- Green Voltage Correction Led
- 3 Color Battery Charge Led
- 3 Color Output Load Led
- Red Battery Warning Led
Management
- Network Management: SNMP Manageable
- Alarm:
- On Battery
- Overload
- Low Battery
Battery Information
- Maximum Battery Recharge Time: 4.50 Hour
- Backup/Run Time (Half Load): 16 Minute
- Backup/Run Time (Full Load): 6 Minute
- Hot Swappable: Yes
Warranty
- Limited Warranty: 2 Year Limited
Environmental Conditions
- Temperature: 104°F (40°C)
