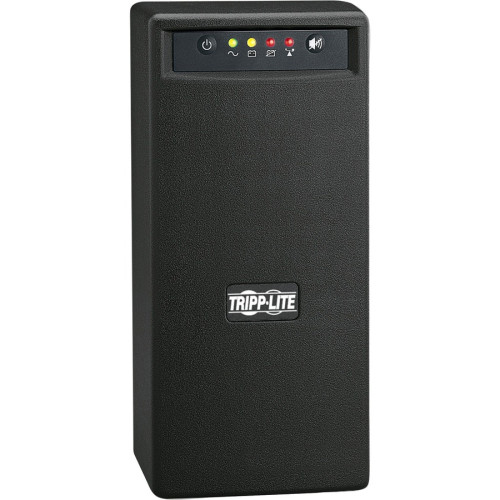

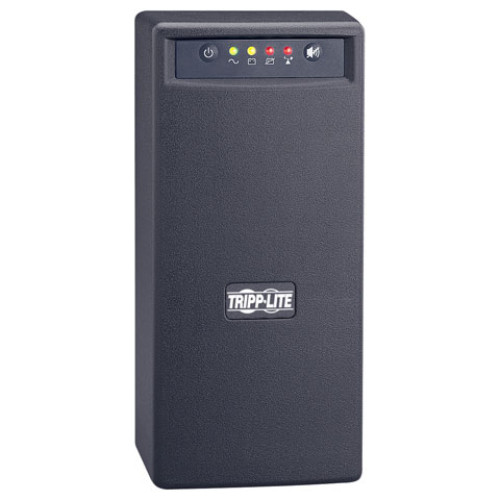

Tripp-Lite SMART750USB UPS
Part #: SMART750USB | SKU: TRI32953

Tripp-Lite UPS and Power Supply products.

Tripp-Lite SMART750USB UPS

Part Details: Tripp Lite UPS Smart 750VA 450W Battery Back Up Tower AVR 120V USB RJ45 - Tower - 4 Hour Recharge - 3 Minute Stand-by - 120 V AC Input - 120 V AC Output - 6 x NEMA 5-15R

Need a different version of the Tripp-Lite UPS Accessory? View all 37 configurations

MSRP: $348.00 Price: $217.78

In Stock

Additional Information

Manufacturer AIDC	Tripp-Lite
Model Name	UPS

General Information

Product Type: Line-interactive UPS
Brand Name: Tripp Lite
Manufacturer: Tripp Lite
Product Name: SmartPro 750VA SMART750USB UPS
Product Line: SmartPro
Packaged Quantity: 1 Each

Technical Information

Receptacles: 3 x NEMA 5-15R
Plug/Connector Type: NEMA 5-15P
Protection Type: Surge
Cord Length: 6 ft
Dataline Protection: RJ-45

Physical Characteristics

Height: 11"
Width: 5.5"
Depth: 7.5"
Form Factor: Tower
Weight (Approximate): 17.40 lb
Color: Gray

Interfaces/Ports

USB: Yes

Other

Country of Origin: China
Package Contents:
- SMART750USB Standby UPS System
- USB and telephone interconnection cables
- Instruction manual with warranty information
- SMART750USB Standby UPS System
- USB and telephone interconnection cables
- Instruction manual with warranty information
Recycled: No
Recycled Content: 0%
Post-consumer-waste%: 0%
Assembly Required: No
Certifications & Standards: UL1778 (USA), cUL (Canada), FCC Class B (emissions), NOM (Mexico), FCC Part 68 / Industry Canada (Telecommunications), Conforms to IEEE 587 / ANSI C62.41 specifications
Software Included: PowerAlert Software
Additional Information:
- SMART750USB line-interactive UPS system offers extended voltage regulation (AVR) and battery support as well as complete AC and dialup/DSL/ethernet line surge suppression
- Supports entry level PC systems for up to 45 minutes during power failures to enable a safe system shutdown
- Supports a max load of 750VA/450 watts for 5 minutes and a half load of 375VA/225 watts for 17 minutes
- Automatic Voltage Regulation (AVR) circuits correct brownouts as low as 83 volts without using battery power
- Attractive black tower configuration
- Includes 3 battery-supported outlets, plus 3 additional surge-only outlets, 6 foot AC line cord (all NEMA 5-15)
- USB port enables unattended shutdown without data loss during extended power failures; includes USB cable
- Built-in USB port supports on battery, low battery, power restored, AC line voltage, DC battery voltage and battery capacity messaging; interface supports timed inverter shutoff after unattended shutdown, activate self-test and 10 second reboot of connected equipment
- PowerAlert UPS monitoring and unattended shutdown software available via free download from www.tripplite.com
- Supports Tripp Lite's WatchDog software application to restore unresponsive programs by automatically restarting them and rebooting completely locked computers by automatically switching UPS power off and back on again (part #WATCHDOGSW)
- Built-in dataline suppression jacks protect a single dialup phone / DSL line or network Ethernet line connection
- Built-in audible alarm and 4 front panel LEDs indicate UPS system and line power status
- 750VA / 450 watt power handling ability supports a variety of computer, internetworking, telecom and consumer electronics equipment
- Supports battery replacement via built-in access panel
- Compatible with 120V / 60Hz applications for USA, Canada, Mexico and more
- 2 year manufacturer's warranty
- $200,000 Ultimate Lifetime Insurance (USA & Canada Only)

Power Description

Load Capacity (VA): 750 VA
Load Capacity (Watt): 450 W
Input Voltage: 110 V AC
Output Voltage: 120 V AC
Surge Energy Rating: 480 J
Waveform Type: Pulse-width Modulated Sine Wave

Battery Information

Maximum Battery Recharge Time: 4 Hour
Backup/Run Time (Half Load): 11 Minute
Backup/Run Time (Full Load): 3 Minute
Battery Life: 6 Year
Battery Chemistry: Sealed Lead Acid

Controls/Indicators

Status Indicators: 4 LEDs indicate performance conditions: GREEN "online" / GREEN "voltage regulation enabled" / RED "on battery" / YELLOW "battery low/replace"

Warranty

Limited Warranty: 3 Year

Management

Alarm: On Battery

Environmental Conditions

Temperature: 122°F (50°C)

Extended Details
