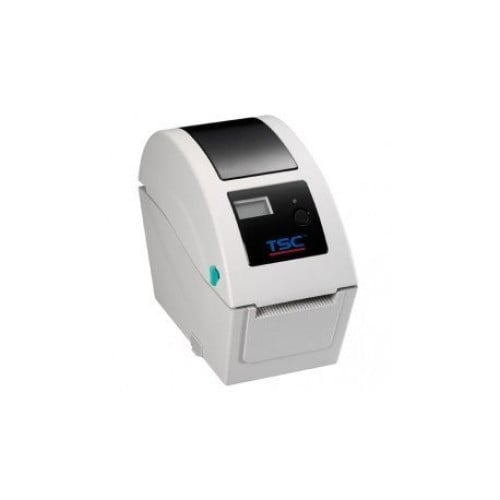

TSC TDP-225 Barcode Label Printer
Part #: 99-039A001-00LF | SKU: TSC102360

Designed with no losable parts, the compact TSC TDP-225 direct-thermal printer fits into tight spaces and supports a wide range of applications. It also features a user-friendly clamshell design that allows users to simply open the cover and drop labels into a spring-loaded 5-inch OD media bay. Top-of-form sensing by gap, black mark or notch is standard, and the black mark sensor is completely adjustable from side to side. With enhanced electronics, the TDP-225 offers a 200 MHz processor, standard memory of 4 MB Flash, 8 MB SDRAM and a MicroSD expansion slot that increases Flash storage up to 4 GB. The printer supports standard industry emulations, including the Eltron and Zebra languages.

TSC TDP-225 Barcode Label Printer

Part Details: TDP-225, 2 INCH LABEL PRINTER, 5 INCH outer diameter, PRINTS UP TO 5 IPS, INCLUDES USB 2.0 AND SERIAL

Additional Information

Filter Filter
Included Features microSD Flash Memory Slot
Interface Options Serial (RS-232), USB
Label Core 1 inch
Manufacturer TSC
Max Label Width 2.36
Max Roll Outer Diameter 5
Maximum Print Width 2.13
Model Name TDP-225
Print Method Direct Thermal
Print Resolution 203 dpi
Print Speed 5
Printer Mobility Not Mobile
Printer Type Desktop
Product Condition New

Technical Information

  • Maximum Mono Print Speed:
    • 5 in/s
    • 5 in/s
  • Maximum Print Resolution:
    • 203 dpi
    • 203 dpi
  • Print Color:
    • Monochrome
    • Monochrome
  • Maximum Print Width:
    • 2.13"
    • 2.13"
  • Recommended Use:
    • Label Print
    • Label Print
  • Features:
    • Real Time Clock
    • Real Time Clock
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • Code 128 UCC
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Codabar
    • Interleaved 2 of 5
    • EAN-8
    • EAN-13
    • EAN 128
    • UPC-A
    • UPC-E
    • MSI
    • Plessey
    • POSTNET
    • China Post
    • RSS-14
    • Code 11
    • PDF-417
    • Maxi Code
    • Data Matrix
    • QR Code
    • Aztec Code
    • Code 39
    • Code 93
    • Code 128 UCC
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Codabar
    • Interleaved 2 of 5
    • EAN-8
    • EAN-13
    • EAN 128
    • UPC-A
    • UPC-E
    • MSI
    • Plessey
    • POSTNET
    • China Post
    • RSS-14
    • Code 11
    • PDF-417
    • Maxi Code
    • Data Matrix
    • QR Code
    • Aztec Code

General Information

  • Product Type:
    • Direct Thermal Printer
    • Direct Thermal Printer
  • Brand Name:
    • TSC
    • TSC Auto ID
  • Manufacturer:
  • Product Model:
    • TDP-225
    • TDP-225
  • Product Name:
    • TDP-225 Label Printer
    • TDP-225 - Desktop Direct Thermal Barcode Printer
  • Product Series: TDP

Physical Characteristics

  • Height:
    • 6.7"
    • 6.7"
  • Width:
    • 4.3"
    • 4.3"
  • Depth:
    • 8.2"
    • 8.2"
  • Form Factor: Desktop
  • Weight (Approximate): 2.65 lb
  • Color: Beige

Interfaces/Ports

  • USB:
    • Yes
    • Yes
  • Serial Port:
    • Yes
    • Yes

Other

  • Platform Supported:
    • PC
    • PC
  • Package Contents:
    • TDP-225 Label Printer
    • Windows Labeling Software CD Disk
    • Quick Start Guide
    • USB port Cable
    • External Universal Switching Power Supply
    • Power Cord
    • TDP-225 Label Printer
    • Windows Labeling Software CD Disk
    • Quick Start Guide
    • USB port Cable
    • External Universal Switching Power Supply
    • Power Cord
    • TDP-225 - Desktop Direct Thermal Barcode Printer
    • Windows Labeling Software CD Disk
    • Quick Start Guide
    • USB port Cable
    • External Universal Switching Power Supply
    • Power Cord
    • TDP-225 - Desktop Direct Thermal Barcode Printer
    • Windows Labeling Software CD Disk
    • Quick Start Guide
    • USB port Cable
    • External Universal Switching Power Supply
    • Power Cord
  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • WEEE
    • RoHS
  • Certifications & Standards:
    • FCC Class B
    • CE Class B
    • C-Tick Class B
    • UL
    • CUL
    • TÜV/Safety
    • CCC

Media Types & Handling

  • Maximum Label Width:
    • 2.36"
    • 2.36"
  • Maximum Label Length:
    • 90"
    • 90"
  • Media Type:
    • Continuous Form
    • Die-cut Label
    • Black Mark
    • Fanfold
    • Notch
    • Wristband
    • Continuous Form
    • Die-cut Label
    • Black Mark
    • Fanfold
    • Notch
    • Wristband
  • Media Thickness:
    • 7.48 mil
    • 7.48 mil
  • Label Core Size:
    • 1.50"
    • 1.50"
  • Maximum Roll Diameter:
    • 1.50"
    • 1.50"
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
    • Cover Open Sensor

Memory

  • Standard Memory:
    • 8 MB
    • 8 MB
  • Memory Technology:
    • SDRAM
    • SDRAM
  • Flash Memory:
    • 4 MB
    • 4 MB
  • Memory Card Slot: Yes

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
    • 24 V DC
  • Power Source: Power Adapter

Fonts & Emulation

  • Language Emulation:
    • TSPL-EZ
    • TSPL-EZ

Warranty

  • Limited Warranty:
    • 2 Year
    • 2 Year

Display & Graphics

  • Display Screen Type:
    • LCD
    • LCD

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet
Extended Details

Recommended Accessories for Model: TSC TDP-225 Barcode Label Printer

  • TSC TDP-225 Power Device
    Part #: 72-0180100-02LF | SKU: TSC385432

    POWER CORD (UK) FOR TDP/TTP225/243PRO/2
    Price: $20.29
  • TSC TDP-225 Power Device
    Part #: 72-0180100-01LF | SKU: TSC385431

    POWER CORD (EU) FOR TDP/TTP225/243PRO/2
    Price: $20.29
  • TSC TDP-225 Accessories
    Part #: 98-0390034-10LF | SKU: TSC497149

    TDP-225 RS-232 SERIAL INTERFACE MODULE
    Price: $26.11
  • TSC TDP-225 Accessories
    Part #: 98-0390031-00LF | SKU: TSC102358

    TDP-225 Accessories, PEELER FOR TDP-225
    Price: $26.11
  • TSC Printer Accessories
    Part #: 98-0390034-00LF | SKU: TSC196548

    TDP-225 Accessories, TDP-225 Series RS-232 Serial Interface Module - Replaces Ethernet Port
    Price: $26.59

Recommended Labels for Model: TSC TDP-225 Barcode Label Printer

  • TSC Barcode Labels
    Part #: 38-M112115-11A | SKU: TSC616125

    ADULT MEDBAND, 1.125" X 11.50 WHITE, 5" O.D ROLL 200/ROLL 2 ROLLS/CTN
    Price: $195.53
  • TSC TX200 Barcode Label
    Part #: TSCDT-400400-FF-02 | SKU: TSC386492

    Label, Direct Thermal, 4.0" x 4.0", Fanfold, 3000 labels/stack, 2 stacks/ctn
    Price: $151.52
  • TSC TX200 Barcode Label
    Part #: TSCDT-400300-FF-02 | SKU: TSC386491

    Label, Direct Thermal, 4.0" x 3.0", Fanfold, 4000 labels/stack, 2 stacks/ctn
    Price: $116.96
  • TSC TX200 Barcode Label
    Part #: TSCDT-400200-FF-02 | SKU: TSC386490

    Label, Direct Thermal, 4.0" x 2.0", Fanfold, 6000 labels/stack, 2 stacks/ctn
    Price: $128.40
  • TSC Thermal Barcode Label
    Part #: TSCTT-400600-FF-02 | SKU: TSC386529

    PERMANENT ADHESIVE (ACRYLIC), PREMIUM TOP COATED 2.25" x 1.25" DIRECT THERMAL, 4" OD, 1" ID,1135 LABELS/ROLL, 12 ROLLS/CTN, TDP225/323225/323/DA200/TDP244/245/247/343/TA200/TA210/TTP244/244CE/245C/247/TX200
    Price: $63.54

Recommended Printheads for Model: TSC TDP-225 Barcode Label Printer

  • TSC TDP-225 Printhead
    Part #: 98-0390005-10LF | SKU: TSC541561

    TDP-225 TPH
    MSRP: $138.00 Price: $115.81
  • TSC TDP-225 Printhead
    Part #: 98-0390005-00LF | SKU: TSC102357

    TDP-225, Replacement 203 dpi TPH for TDP-225 / TDP-225W

Recommended Ribbons for Model: TSC TDP-225 Barcode Label Printer

  • TSC Thermal Barcode Label
    Part #: 35-R090110-23CE | SKU: TSC501711

    CONSUMABLES, THERMAL TRANSFER STANDARD RESIN RIBBON, BLACK, 3.54" (90 MM) x 361'' (110M), 0.5" CORE, 12 roll case
    MSRP: $113.35 Price: $103.95
  • TSC Barcode Labels
    Part #: 35-R110110-23CF | SKU: TSC501713

    CONSUMABLES, THERMAL TRANSFER PREMIUM RESIN RIBBON, BLACK, 4.33" (110 MM) x 361'' (110M), 0.5" CORE, 12 roll case
    MSRP: $213.55 Price: $195.86
  • TSC Thermal Printer Ribbon
    Part #: 35-R076110-21CF | SKU: TSC424734

    2.99" x 361' Black Resin Ribbon, 0.5 core, 24 roll case. Compatible with Desktop Printers.
    Price: $366.74
  • TSC Thermal Printer Ribbon
    Part #: 35-W076110-21CB | SKU: TSC424730

    2.99" x 361' Black Wax Ribbon, 0.5 core, 48 roll case. Compatible with Desktop Printers.
    Price: $125.29
  • TSC Barcode Ribbon
    Part #: 35-R060110-21CE | SKU: TSC424727

    2.36" x 361' Black Resin Ribbon, 0.5 core, 24 roll case. Compatible with Desktop Printers.
    Price: $204.91
