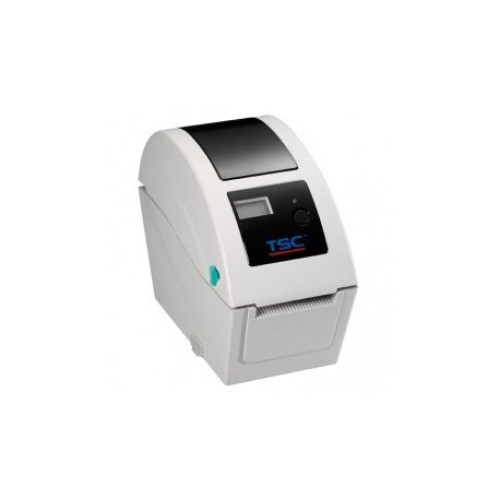

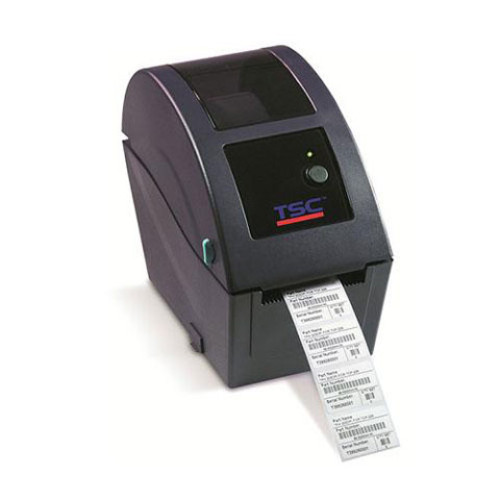

TSC TDP-225 Barcode Label Printer
Part #: 99-039A001-50LF | SKU: TSC102364

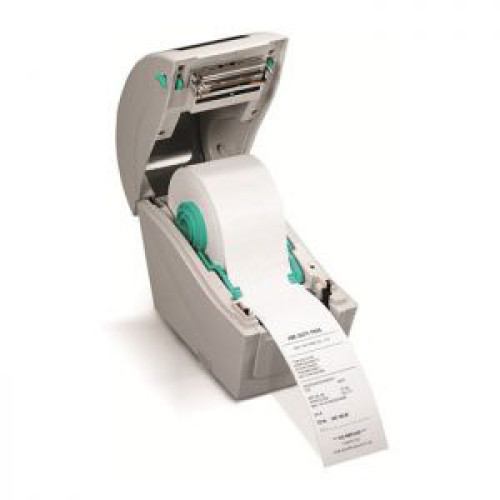

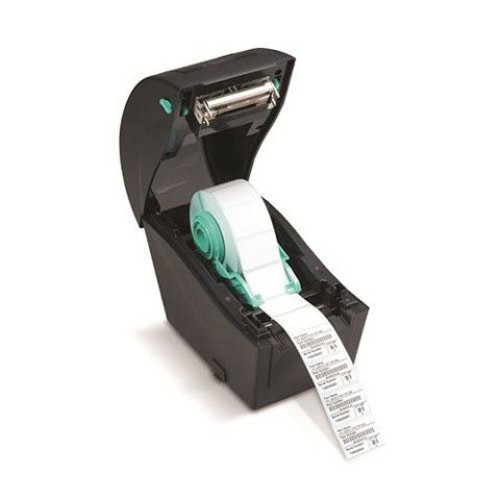

Designed with no losable parts, the compact TSC TDP-225 direct-thermal printer fits into tight spaces and supports a wide range of applications. It also features a user-friendly clamshell design that allows users to simply open the cover and drop labels into a spring-loaded 5-inch OD media bay. Top-of-form sensing by gap, black mark or notch is standard, and the black mark sensor is completely adjustable from side to side. With enhanced electronics, the TDP-225 offers a 200 MHz processor, standard memory of 4 MB Flash, 8 MB SDRAM and a MicroSD expansion slot that increases Flash storage up to 4 GB. The printer supports standard industry emulations, including the Eltron and Zebra languages.

TSC TDP-225 Barcode Label Printer

Part Details: TDP-225, LCD, 2 INCH LABEL PRINTER WITH LCD DISPLAY, 5 INCH outer diameter, PRINTS UP TO 5 IPS INCLUDES RS-232 AND USB 2.0

Additional Information

Filter Filter
Included Features microSD Flash Memory Slot
Interface Options Serial, USB
Label Core 1 inch
Manufacturer TSC
Max Label Width 2.36
Max Roll Outer Diameter 5
Maximum Print Width 2.13
Model Name TDP-225
Print Method Direct Thermal
Print Resolution 203 dpi
Print Speed 5
Printer Mobility Not Mobile
Printer Type Desktop
Product Condition New

Technical Information

  • Maximum Mono Print Speed: 5 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 2.13"
  • Recommended Use: Label Print
  • Features:
    • Real Time Clock
    • Peel Facility
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • Code 128 UCC
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Codabar
    • Interleaved 2 of 5
    • EAN-8
    • EAN-13
    • EAN 128
    • UPC-A
    • UPC-E
    • MSI
    • Plessey
    • POSTNET
    • China Post
    • GS1 DataBar
    • Code 11
    • PDF-417
    • Maxi Code
    • Data Matrix
    • QR Code
    • Aztec Code

General Information

  • Product Type: Direct Thermal Printer
  • Brand Name: TSC Auto ID
  • Manufacturer: TSC Auto ID Technology Co., Ltd
  • Product Model: TDP-225
  • Product Name: TDP-225 Label Printer

Physical Characteristics

  • Height: 6.7"
  • Width: 4.3"
  • Depth: 8.2"
  • Form Factor: Desktop
  • Weight (Approximate): 2.65 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Platform Supported: PC
  • Package Contents:
    • TDP-225 Label Printer
    • Windows Labeling Software CD Disk
    • Quick Start Guide
    • USB Cable
    • External Universal Switching Power Supply
    • Power Cord
    • TDP-225 Label Printer
    • Windows Labeling Software CD Disk
    • Quick Start Guide
    • USB Cable
    • External Universal Switching Power Supply
    • Power Cord
  • Certifications & Standards:
    • FCC Class B
    • CE Class B
    • C-Tick Class B
    • UL
    • CUL
    • TÜV/Safety
    • CCC

Media Types & Handling

  • Maximum Label Width: 2.36"
  • Maximum Label Length: 90"
  • Media Type:
    • Continuous Form
    • Die-cut Label
    • Black Mark
    • Fanfold
    • Notched
    • Wristband
    • Gap
    • Notch
  • Media Thickness: 7.48 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Cover Open Sensor
    • Transmissive Media Sensor
  • Label Core Size: 1.50"
  • Maximum Roll Diameter: 5"

Memory

  • Standard Memory: 8 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Power Description

  • Input Voltage: 24 V DC

Display & Graphics

  • Display Screen Type: LCD

Warranty

  • Limited Warranty: 2 Year

Fonts & Emulation

  • Language Emulation: TSPL-EZ
Extended Details

Recommended Accessories for Model: TSC TDP-225 Barcode Label Printer

  • TSC TDP-225 Power Device
    Part #: 72-0180100-02LF | SKU: TSC385432

    POWER CORD (UK) FOR TDP/TTP225/243PRO/2
    Price: $20.29
  • TSC TDP-225 Power Device
    Part #: 72-0180100-01LF | SKU: TSC385431

    POWER CORD (EU) FOR TDP/TTP225/243PRO/2
    Price: $20.29
  • TSC TDP-225 Accessories
    Part #: 98-0390034-10LF | SKU: TSC497149

    TDP-225 RS-232 SERIAL INTERFACE MODULE
    Price: $26.11
  • TSC TDP-225 Accessories
    Part #: 98-0390031-00LF | SKU: TSC102358

    TDP-225 Accessories, PEELER FOR TDP-225
    Price: $26.11
  • TSC Printer Accessories
    Part #: 98-0390034-00LF | SKU: TSC196548

    TDP-225 Accessories, TDP-225 Series RS-232 Serial Interface Module - Replaces Ethernet Port
    Price: $26.59

Recommended Labels for Model: TSC TDP-225 Barcode Label Printer

  • TSC Barcode Labels
    Part #: 38-M112115-11A | SKU: TSC616125

    ADULT MEDBAND, 1.125" X 11.50 WHITE, 5" O.D ROLL 200/ROLL 2 ROLLS/CTN
    Price: $195.53
  • TSC TX200 Barcode Label
    Part #: TSCDT-400400-FF-02 | SKU: TSC386492

    Label, Direct Thermal, 4.0" x 4.0", Fanfold, 3000 labels/stack, 2 stacks/ctn
    Price: $151.52
  • TSC TX200 Barcode Label
    Part #: TSCDT-400300-FF-02 | SKU: TSC386491

    Label, Direct Thermal, 4.0" x 3.0", Fanfold, 4000 labels/stack, 2 stacks/ctn
    Price: $116.96
  • TSC TX200 Barcode Label
    Part #: TSCDT-400200-FF-02 | SKU: TSC386490

    Label, Direct Thermal, 4.0" x 2.0", Fanfold, 6000 labels/stack, 2 stacks/ctn
    Price: $128.40
  • TSC Thermal Barcode Label
    Part #: TSCTT-225125-4-01 | SKU: TSC386503

    PERMANENT ADHESIVE (ACRYLIC) 2.25" x 1.25" THERMAL TRANSFER, 4" OD, 1" ID,1135 LABELS/ROLL, 12 ROLLS/CTN, TTP225/323/TA200/TA300/244/247/343C/345/TX200/TX300/TX600
    Price: $69.46

Recommended Printheads for Model: TSC TDP-225 Barcode Label Printer

  • TSC TDP-225 Printhead
    Part #: 98-0390005-10LF | SKU: TSC541561

    TDP-225 TPH
    MSRP: $126.00 Price: $105.76
  • TSC TDP-225 Printhead
    Part #: 98-0390005-00LF | SKU: TSC102357

    TDP-225, Replacement 203 dpi TPH for TDP-225 / TDP-225W

Recommended Ribbons for Model: TSC TDP-225 Barcode Label Printer

  • TSC TTP-245C Ribbon
    Part #: 35-R110110-23CE | SKU: TSC444402

    CONSUMABLES, THERMAL TRANSFER STANDARD RESIN RIBBON, BLACK, 4.33" (110 MM) x 361' (110M), 0.5" CORE, 12 roll case
    Price: $150.77
  • TSC Thermal Barcode Label
    Part #: 35-R090110-23CE | SKU: TSC501711

    CONSUMABLES, THERMAL TRANSFER STANDARD RESIN RIBBON, BLACK, 3.54" (90 MM) x 361'' (110M), 0.5" CORE, 12 roll case
    MSRP: $113.35 Price: $103.95
  • TSC Barcode Labels
    Part #: 35-R110110-23CF | SKU: TSC501713

    CONSUMABLES, THERMAL TRANSFER PREMIUM RESIN RIBBON, BLACK, 4.33" (110 MM) x 361'' (110M), 0.5" CORE, 12 roll case
    MSRP: $213.55 Price: $195.86
  • TSC Thermal Printer Ribbon
    Part #: 35-R076110-21CF | SKU: TSC424734

    2.99" x 361' Black Resin Ribbon, 0.5 core, 24 roll case. Compatible with Desktop Printers.
    Price: $366.74
  • TSC Thermal Printer Ribbon
    Part #: 35-W110110-21CB | SKU: TSC424748

    4.33" x 361' Black Wax Ribbon, 0.5 core, 24 roll case. Compatible with Desktop Printers.
    Price: $181.56
