TSC 99-127A003-00LF Barcode Label Printer TSC 99-127A003-00LF Barcode Label Printer TSC 99-127A003-00LF Barcode Label Printer TSC 99-127A003-00LF Barcode Label Printer

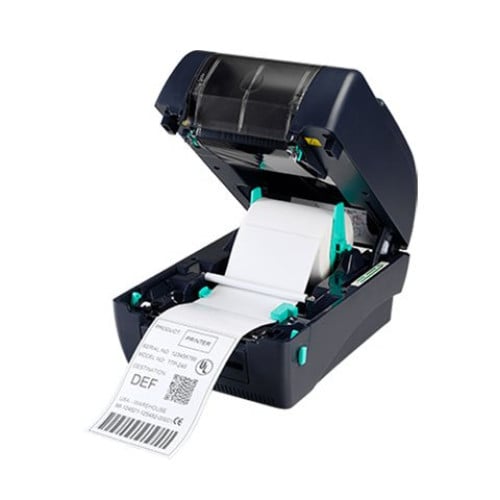

TSC 99-127A003-00LF Barcode Label Printer
Part #: 99-127A003-00LF | SKU: TSC143836

The new TTP-345 thermal transfer desktop bar code printer series delivers more performance for the price than any other printer in its class. The TTP-345 offers high resolution 300 dpi printing at 5 inches per second. Both models offer 8 MB of SDRAM and 4 MB of onboard Flash memory. Gigabytes of Flash memory can be added via an onboard SDHC card reader. By using two motors instead of the usual one, TTP-345 series printers operate at lower torque, reducing noise, decreasing wear and tear, and extending printer life. The platform’s user-friendly design makes it easy for operators to load and unload ribbons, and its 300-meter capacity is more than four times the industry-standard length for desktop printers.

TSC 99-127A003-00LF Barcode Label Printer

Part Details: TTP-345, Thermal transfer printer, 300 dpi, 5 IPS, 8MB DRAM, 4MB flash, USB, SERIAL, PARALLEL interface.
Need a different version of the TSC TTP-345 Barcode Label Printer? View all 12 configurations

Additional Information

Interface Options Parallel, Serial (RS-232), USB
Manufacturer AIDC TSC
Max Roll Outer Diameter 5
Model Name TTP-345
Print Resolution 300 dpi
Print Speed 5 ips
Printer Type Desktop
Printing Technology Thermal Transfer
Ribbon Core Size 0.5 inch
TSC TTP-345 Specs TSC TTP-345 Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 5 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.17"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 93
    • Code 128
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC
    • Codabar
    • Interleaved 2 of 5
    • EAN-8
    • EAN-13
    • EAN 128
    • UPC-A
    • UPC-E
    • UPC -2 Digits Add-on
    • UPC-5 Digits Add-on
    • MSI
    • Plessey
    • POSTNET
    • RSS Stacked
    • GS1 DataBar
    • Code 11
    • PDF-417
    • QR Code
    • Aztec Code
    • Data Matrix
    • Maxi Code

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: TTP
  • Brand Name: TSC Auto ID
  • Manufacturer: TSC Auto ID Technology Co., Ltd
  • Product Model: TTP-345
  • Product Name: TTP-345 Label Printer

Physical Characteristics

  • Height: 7.4"
  • Width: 8.4"
  • Depth: 12.4"
  • Form Factor: Desktop

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • TTP-345 Label Printer
    • Software and Documentation CD
    • Quick Start Guide
    • USB Cable
    • External Universal Switching Power Supply
    • Power Cord
    • Label Spindle
    • 2 x Fixing Tab
    • 2 x 1.5" Core Adapter
    • 2 x Ribbon spindle
    • Ribbon Rewind Spindle Paper Core
    • TTP-345 Label Printer
    • Software and Documentation CD
    • Quick Start Guide
    • USB Cable
    • External Universal Switching Power Supply
    • Power Cord
    • Label Spindle
    • 2 x Fixing Tab
    • 2 x 1.5" Core Adapter
    • 2 x Ribbon spindle
    • Ribbon Rewind Spindle Paper Core
  • Certifications & Standards:
    • FCC Class B
    • CE Class B
    • CCC
    • C-Tick Class B
    • UL
    • CUL
    • TUV/Safety

Media Types & Handling

  • Maximum Label Width: 4.40"
  • Maximum Label Length: 90"
  • Media Type:
    • Continuous Label
    • Die-cut Label
    • Black Mark
    • Fanfold
    • Notch
    • Label
  • Media Thickness: 7.48 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
    • Out Of Ribbon Sensor
    • Cover Open Sensor
  • Label Core Size: 3"
  • Maximum Roll Diameter: 8.40"

Memory

  • Standard Memory: 8 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital High Capacity (SDHC)
  • Memory Technology: DRAM
  • Flash Memory: 4 MB

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Warranty

  • Limited Warranty: 2 Year

Fonts & Emulation

  • Language Emulation: TSPL-EZ
Extended Details

Recommended Labels for Model: TSC 99-127A003-00LF Barcode Label Printer

  • TSC DT-400600-5-01 Barcode Label
    Part #: DT-400600-5-01 | SKU: TSC538597

    /PTX, CONSUMABLES, TOP COATED, DIRECT Thermal paper LABEL FOR USE IN DESKTOP PRINTERS, WHITE, 4" x 6", 1"CORE, 5" outer diameter, PERMANENT ADHESIVE, 460 labels/roll, 12 roll case
    MSRP: $279.85 Price: $120.80
    In Stock

  • TSC TSCDT-400300-FF-02 Barcode Label
    Part #: TSCDT-400300-FF-02 | SKU: TSC386491

    Label, Direct Thermal, 4.0" x 3.0", Fanfold, 4000 labels/stack, 2 stacks/ctn
    MSRP: $116.96 Price: $77.28

  • TSC TSCDT-400200-FF-02 Barcode Label
    Part #: TSCDT-400200-FF-02 | SKU: TSC386490

    Label, Direct Thermal, 4.0" x 2.0", Fanfold, 6000 labels/stack, 2 stacks/ctn
    MSRP: $128.40 Price: $101.65

  • TSC DT-200100-5-01 Barcode Label
    Part #: DT-200100-5-01 | SKU: TSC538566

    /PTX, CONSUMABLES, TOP COATED, DIRECT Thermal paper LABEL FOR USE IN DESKTOP PRINTERS, WHITE, 2" x 1", 1"CORE, 5" outer diameter, PERMANENT ADHESIVE, 2500 labels/roll, 12 roll case
    MSRP: $149.40 Price: $91.40

  • TSC DT-225125-5-01 Barcode Label
    Part #: DT-225125-5-01 | SKU: TSC538570

    /PTX, CONSUMABLES, TOP COATED, DIRECT Thermal paper LABEL FOR USE IN DESKTOP PRINTERS, WHITE, 2.25" x 1.25", 1"CORE, 5" outer diameter, PERMANENT ADHESIVE, 2100 labels/roll, 12 roll case
    MSRP: $165.84 Price: $101.46
View All Options

Recommended Printheads for Model: TSC 99-127A003-00LF Barcode Label Printer

  • TSC 98-0280007-20LF Printhead
    Part #: 98-0280007-20LF | SKU: TSC674955

    Thermal Printheads - TSC - Printhead Module - 300 dpi - Compatible with TTP-345
View All Options

Recommended Ribbons for Model: TSC 99-127A003-00LF Barcode Label Printer

  • TSC 35-W083110-23CB Barcode Label
    Part #: 35-W083110-23CB | SKU: TSC501727

    CONSUMABLES, THERMAL TRANSFER PREMIUM RESINMIUM WAX RIBBON, BLACK, 3.27" (83 MM) x 361'' (110M), 0.5" CORE, 24 roll case
    MSRP: $101.04 Price: $87.13
    In Stock

  • TSC P140179-001 Ribbon
    Part #: P140179-001 | SKU: TSC713632

    Printer Ribbons - TSC - DIV 8550-PWR - Premium Wax/Resin - 60mm x 110m - 24 Rolls per Case
    MSRP: $119.44 Price: $63.99

  • TSC 35-R076110-21CF Ribbon
    Part #: 35-R076110-21CF | SKU: TSC424734

    2.99" x 361' Black Resin Ribbon, 0.5 core, 24 roll case. Compatible with Desktop Printers.

  • TSC 35-W110110-21CB Ribbon
    Part #: 35-W110110-21CB | SKU: TSC424748

    4.33" x 361' Black Wax Ribbon, 0.5 core, 24 roll case. Compatible with Desktop Printers.

  • TSC 35-W076110-21CA Ribbon
    Part #: 35-W076110-21CA | SKU: TSC424729

    2.99" x 361' Black Wax Ribbon, 0.5 core, 48 roll case. Compatible with Desktop Printers.
View All Options

Recommended Warranties for Model: TSC 99-127A003-00LF Barcode Label Printer

  • TSC 12540-00-A0-36-10 Service Contract
    Part #: 12540-00-A0-36-10 | SKU: TSC584211

    Service Contracts - TSC - Standard - Priority Depot - TTP-247/TTP-345 - 3 Year - Buy With Printer - US
    MSRP: $75.00 Price: $69.74
    In Stock

  • TSC 12540-00-A0-60-10 Service Contract
    Part #: 12540-00-A0-60-10 | SKU: TSC584212

    Service Contracts - TSC - Standard - Priority Depot - TTP-247/TTP-345/TTP-247 - 5 Year - Buy With Printer - US
    MSRP: $150.00 Price: $131.26
    In Stock
View All Options
