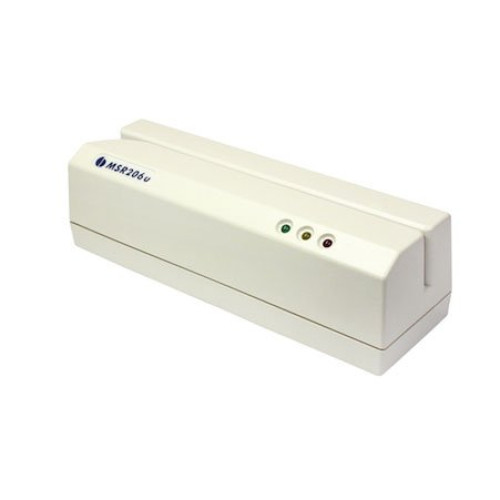

UIC MSR206U-3HLR Credit Card Reader
Part #: MSR206U-3HLR | SKU: UIC148205

The MSR206U comes with full featured WIN98/2000/XP utility demo program and supports programmable data format. The MSR206U is ideal for card verification and various card related applications. It is highly reliable specified for minimum one million read and write head swipes. It fully conforms to FCC and CE standards.

UIC MSR206U-3HLR Credit Card Reader

Part Details: MSR206, MSR reader/writer, Swipe type, USB/RS-232 interface, Hi and Lo C, triple tracks, Beige color
MSRP: $529.20 Price: $417.33

Additional Information

Manufacturer UIC
Model Name MSR206U

Technical Information

  • Magnetic Stripe Track Configuration: Triple Track
  • Magnetic Stripe Coercivity:
    • High Coercivity (HiCo)
    • Low Coercivity (LoCo)
  • Minimum Swipe Speed: 5 in/s
  • Maximum Swipe Speed: 35 in/s
  • Magnetic Stripe Track Number:
    • Track 1
    • Track 3
    • Track 2
  • Magnetic Head Life: 1000000 Swipe

General Information

  • Product Type: Magnetic Stripe Reader
  • Product Series: MSR206
  • Brand Name: Uniform Industrial
  • Manufacturer: Uniform Industrial Corporation
  • Product Model: MSR206U
  • Product Name: MSR206U Magnetic Stripe Reader

Physical Characteristics

  • Height: 2.4"
  • Width: 2.6"
  • Length: 8.3"
  • Weight (Approximate): 3.31 lb

Interfaces/Ports

  • Interfaces/Ports:
    • 1 x RS-232 Serial
    • 1 x USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Package Contents:
    • MSR206U Magnetic Stripe Reader
    • Switch Power Supply
    • Power Cord
    • Signal Cable
    • Utility Disk
    • Blank Hi-Co Test Card
    • Programmers Value
    • MSR206U Magnetic Stripe Reader
    • Switch Power Supply
    • Power Cord
    • Signal Cable
    • Utility Disk
    • Blank Hi-Co Test Card
    • Programmers Value
  • Certifications & Standards:
    • ISO 7811/1-6
    • CE
    • FCC
    • UL
    • cUL
    • EN 50 082-1: 1992
    • EN 55 022: 1994 Class B
    • IEC 801-2: 1984
    • EN 61000-3-2: 1995 Class A
    • IEC 801-3: 1984
    • EN 61000-3-3: 1995
    • IEC 801-4: 1988
  • Additional Information:
    • Manual swipe read/write with RS-232 interface or USB interface
    • Write high or high & low coercivity magnetic stripes
    • Full featured WIN98/2000/XP utility Domo program
    • Programmable data format

Environmental Conditions

  • Humidity:
    • 10% to 85% Operating
    • 10% to 90% Storage
  • Temperature:
    • 14°F (-10°C) to 131°F (55°C) Operating
    • -22°F (-30°C) to 158°F (70°C) Storage

Warranty

  • Limited Warranty: 1 Year

Power Description

  • Input Voltage: 24 V DC
