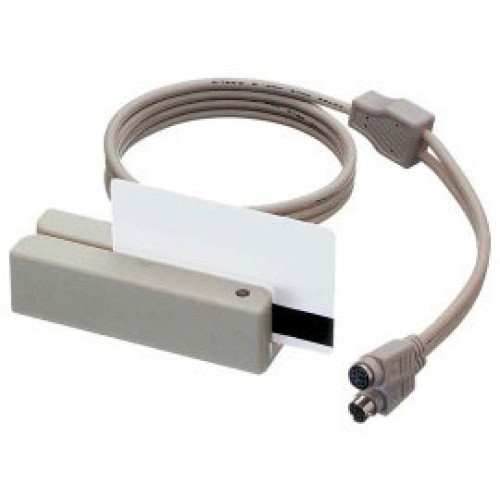

MSR210D-12AHBNR Credit Card Reader
Part #: MSR210D-12AHBNR | SKU: UIC148182

The MSR210D single, dual, or triple track versions conforms to International Standard Organization 7811 standard, AAMVA and Department of Motor Vehicles cards. It has a user-friendly setting and it is compact that can be mounted on keyboard or any flat surface. The MSR 210D has programmable data output and has the firmware downloadable functionality.

MSR210D-12AHBNR Credit Card Reader

Part Details: MSR210, MSR reader, PS/2 keyboard interface, dual tracks 1 & 2, buzzer/LED, Beige

Need a different version of the MSR210D Credit Card Reader? View all 4 configurations

Additional Information

Manufacturer	UIC
Model Name	MSR210D

UIC MSR210D Specs (pdf)

General Information

Product Type: Magnetic Stripe Reader
Brand Name: Uniform Industrial
Manufacturer: Uniform Industrial Corporation
Product Model: MSR210
Product Name: MSR210 Magnetic Stripe Reader

Technical Information

Magnetic Stripe Track Configuration: Dual Track
Minimum Swipe Speed: 5 in/s
Maximum Swipe Speed: 55 in/s
Magnetic Head Life: 500 Swipe

Physical Characteristics

Height: 1.1"
Width: 1.3"
Color: Beige
Length: 3.9"
Weight (Approximate): 4.23 oz

Interfaces/Ports

Interfaces/Ports: PS/2

Other

Certifications & Standards:
- FCC Class A
- CE
- UL
- cUL

Environmental Conditions

Humidity: 10% to 90% Operating
Temperature: 14°F (-10°C) to 131°F (55°C) Operating

Power Description

Input Voltage: 5 V DC

Extended Details
