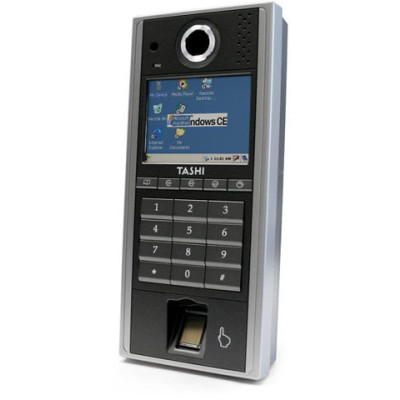

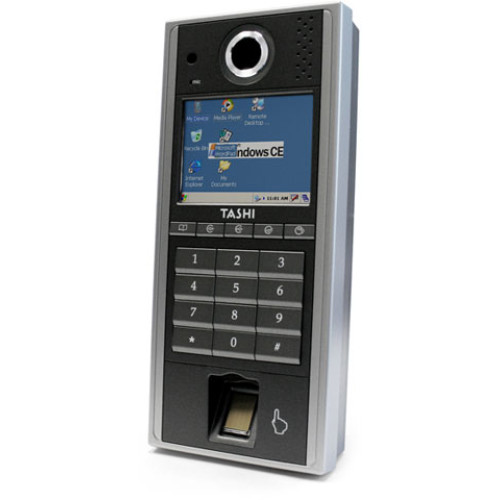

Unitech MT380 TASHI Data Terminal

The Unitech MT380 TASHI is one of the most compact IP based Time & Attendance and Access Control terminals on the market. It can be applied to many applications via a Windows CE 5.0 operating system. Ensure security with one of several supporting auto ID proximity readers: Fingerprint, HID and EM. The MT380 TASHI features an embedded 2-megapixel camera and microphone helps to verify identification. Also, data input is seamless with a large numeric keypad, function keys and 3.5-inch QVGA color touch-screen. And the MT380 TASHI supports Ethernet or wireless Wi-Fi communication. The Unitech MT380 TASHI is programmable through a software development kit. In addition, a comprehensive and ready to use T & A application template is provided on the terminal.

Call For Price

See all options

Specs & Info
All Options

Unitech MT380 TASHI Specs (pdf)

INTERNAL PERFORMANCE

Operating System	Windows CE 5.0 Professional
CPU	520MHz Intel PXA270 Processor
Memory	128 MB SDRAM / 64 MB Flash ROM

EXTERNAL CHARACTERISTICS

Dimension	8.9"L x 3.9"W x 1.3"H
Weight	1.06 lbs.
Display	3.5" QVGA (landscape 240 x 320 pixels) color touch-screen, TFT-LCD
Keypad	17 hard keys: 12 numeric keys Five function keys

MULTIMEDIA FEATURES

Camera	2-megapixel CMOS
Audio Output	0.8/2 Watt speaker Microphone Input

COMMUNICATION

RS232	One RJ45 Support: TX+, TX-, RX+, RX-
RS485	One RJ45 Support: TX+, TX-, RX+, RX-
Ethernet	One RJ45 with PoE (DC 5V / 2A)
USB	V1.1 Host
Wireless	802.11b/g via SDIO slot

BATTERY & POWER

Battery	3.7V Li-Ion 1200mAh rechargeable battery pack
Backup Battery	Embedded battery cell
Charging Time	12-hours
Mini UPS Operation Time	1-hour operation 3-days data backup
Power Input	12V / 2A

CONNECTION & EXPANSION

SDHC Slot	Memory Wireless Communication
Output Relays	Two: 2A / 30Vdc 0.5 / 250Vac
Photo-Coupler Inputs	Two: 3.3V ~ 12V
Ethernet Connection
Power-over-Ethernet	(Optional)

PROXIMITY READER

EM	125 kHz
HID	125 kHz
MiFare (Optional)	13.56 MHz ISO14443A ISO14443A/B ISO159693

FINGERPRINT READER

Mark	1-to-1
Verification time,	0.4 sec. per template
Capacity of Fingerprint	100 templates

SOFTWARE PROGRAMMING TOOLS

TAS SDK, API for I/O drivers
C#, VB.NET, C++

FIELD ENVIRONMENT

Mounting	In-Wall On-Wall
Operating Temperature	32?F to 122?F (0?C to 50?C)
Storage Temperature	-4?F to 158?F (-20?C to 70?C)
Humidity	5% to 95% RH non-condensing

IN THE BOX

MT380
AC Adapter
USB Cable
RS232 Input Cable
RS232 Output Cable
Stylus
Terminal Block
Test Proximity Card
CD with Manuals / SDK
