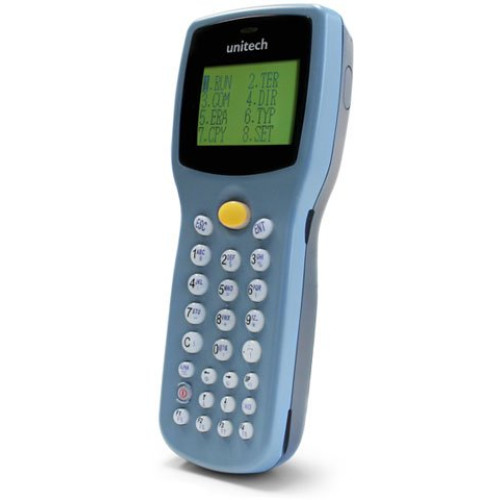

Unitech HT630 Handheld Mobile Computer
Part #: HT630-AA0A1G | SKU: UNI46522

The ruggedness of the Unitech HT630 boosts high productivity and guarantees the investment for Enterprise Users. The HT630 provides out-of-the-box functionality via five ready-made common applications. The flexible modular design including barcode reading and keypad input makes the HT630 a perfect multi-functional mobile computer for most data collection applications.

Unitech HT630 Handheld Mobile Computer

Part Details: 512K RAM, Wide Angle Laser, Batch, DOS, Battery, RS232 Cable, Power Adapter

Additional Information

Data Collection Type Batch
Manufacturer Unitech
Model Name HT630
Operating System DOS
Product Condition New
RAM Memory 512 KB
Scanner Type Laser
Style Basic

Technical Information

  • Connectivity Technology: Batch
  • Light Source: Laser
  • Drop Specification: 48" To Concrete
  • Barcode Symbology Supported:
    • China Postal Code
    • Codabar
    • Code 39
    • Code 39 Full ASCII
    • Code 128
    • Code 93
    • EAN-8
    • EAN-13
    • EAN-128
    • Interleaved 2 of 5
    • ITF
    • UPC-A
    • UPC-E

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Unitech
  • Manufacturer: Unitech Electronics Co., Ltd
  • Product Model: PT630D
  • Product Name: PT630D Handheld Terminal

Physical Characteristics

  • Height: 6.6"
  • Width: 2.6"
  • Depth: 1.4"
  • Weight (Approximate): 8.64 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • PT630D Handheld Terminal
    • A/C Adapter
    • Battery
    • RS232 Communication Cable
    • JobGen Plus Software
    • PT630D Handheld Terminal
    • A/C Adapter
    • Battery
    • RS232 Communication Cable
    • JobGen Plus Software
  • Certifications & Standards:
    • CE
    • FCC
  • Additional Information: Interface: RS232 Via Proprietary Cable

Display & Graphics

  • Display Screen Type: LCD
  • Number of Lines: 8
  • Number of Characters: 20
  • Display Color: Monochrome
  • Screen Resolution: 128 x 64

Battery Information

  • Battery Capacity: 900 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Memory

  • Flash Memory: 256 KB
  • Standard Memory: 512 KB

Keyboard/Keypad

  • Keyboard Type: Alphanumeric
  • Number of Keys: 27

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: DOS
Extended Details

Recommended Accessories for Model: Unitech HT630 Handheld Mobile Computer

  • Unitech HT630 Batteries
    Part #: 1400-202501G | SKU: UNI27506

    Replacement Battery - Rechargable - Compatible with HT630
    Price: $25.77
  • Unitech HT630 Power
    Part #: 1010-602141G | SKU: UNI69456

    Power Supply - 100-240V - 9V DC - Compatible with Unitech HT630 and MS860
    Price: $29.30
  • Unitech Cradle/Charger
    Part #: PT063D-1G | SKU: UNI29643

    Desktop Cradle - 1 Slot - USB/RS-232 - Requires Interface Cable (Sold Separately) - Requires Power Adapter (Sold Separately) - Compatible with Unitech HT630
    MSRP: $98.00 Price: $69.51
  • Unitech HT630 Cables and Adapters
    Part #: 1550-900083G | SKU: UNI291618

    USB Charging / Communication Cable - 79" - Type A - Straight, Black - Compatible with Unitech HT630 - Power Adapter Sold Separately
    MSRP: $72.00 Price: $51.36
  • Unitech HT630 Cables and Adapters
    Part #: PW201-2 | SKU: UNI26605

    Unitech RS232 to USB Adapter Cable - Type A Male Serial, DB-9 Male USB - 6ft
    MSRP: $44.00 Price: $31.68

Recommended Warranties for Model: Unitech HT630 Handheld Mobile Computer

  • BCI True Support Service Contract
    Part #: TRUESUPPORT-STD-MOB-1YR | SKU: BCI665138

    TrueSupport Standard Plan for Mobile Computers & Tablets - 1 Year – Includes: Plan Design & Deploy Project management, Device Staging Kitting & Provisioning, Hardware and Software Help Desk Support, RMA Triage, OEM Service Contract mgmt., MDM Administration Services.
    Price: $129.00
  • Unitech HT630 Service Contract
    Part #: HT630-AZ1R | SKU: UNI145927

    Service Contract - 1 year, Comprehensive Coverage, 1-Year Renewal, 48-Hour Repair, 2-Day Shipping
    MSRP: $120.00 Price: $85.11
  • Unitech HT630 Service Contract
    Part #: HT630-Z1R | SKU: UNI145928

    Service Contract - 1 year, Comprehensive Coverage, 1-Year Renewal, 5-Day Repair, Ground Shipping
    MSRP: $110.00 Price: $78.01
  • Unitech HT630 Service Contract
    Part #: HT630-Z1 | SKU: UNI116074

    Service Contract - 1 year, Comprehensive Coverage, 1 Year, 5-Day Repair, Ground Shipping
    MSRP: $86.00 Price: $60.99
  • Unitech HT630 Service Contract
    Part #: HT630-AX1 | SKU: UNI116067

    Service Contract - 1 year, Extended Warranty Coverage, 1 Year, 48-Hour Repair, 2-Day Shipping
    MSRP: $68.80 Price: $50.45
