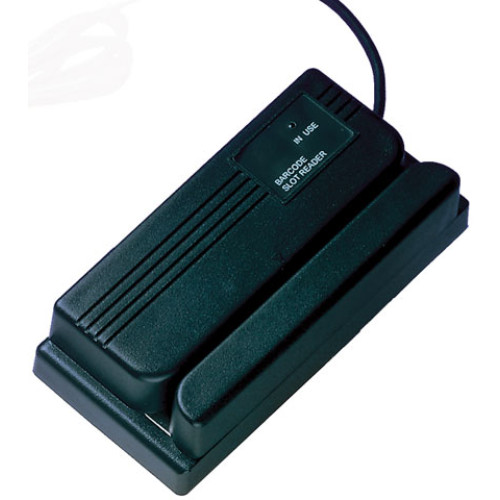

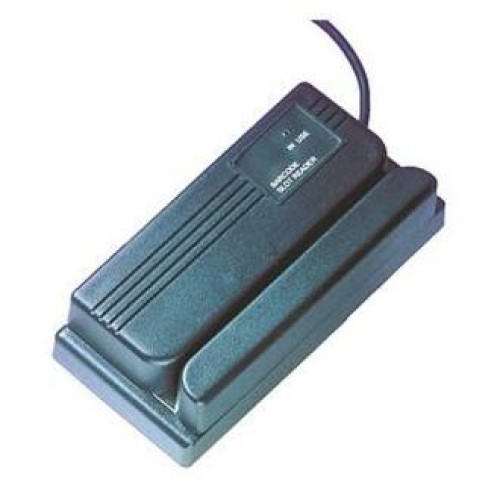

MS140-3 Barcode Card Reader
Part #: MS140-3 | SKU: UNI4529

The MS140 family of bar code slot readers is a flexible cost effective solution when you demand a reliable and rugged slot reader. With a resolution of up to 6 mils (0.15 mm) the MS140 is capable of reading any bar coded identification badge. It's sealed optical system is available in both visible light or infrared. The infrared units ensure accurate reading of either visible and laminated badges. Its water resistant base and rugged housing make the MS140 a popular choice in any environment. An optional mounting bracket is available to safely secure the unit in any direction.

MS140-3 Barcode Card Reader

Part Details: MS140 Bar Code Slot Reader (Visible Light Beam with Keyboard Interface and DIN Connector)

Need a different version of the Unitech MS140 Barcode Card Reader? View all 5 configurations

Additional Information

Manufacturer	Unitech
Model Name	MS140

Unitech MS140 Specs (pdf)

Technical Information

Barcode Dimension: 1D
Connectivity Technology: Cable
Light Source: LED
Barcode Symbology Supported:
- China Postal Code
- Codabar
- Code 11
- Code 32
- Code 39 (full ASCII)
- Code 39 (Standard)
- Code 93
- Code 128
- Delta Code
- EAN-8 with add-on code
- EAN-13 with add-on code
- EAN 128
- Interleaved 2 of 5
- ISBN / Bookland EAN
- ISBT 128
- Italian Pharmacy
- Label Code IV
- Label Code V
- MSI / Plessey
- Standard 2 of 5
- Toshiba Code
- UPC-A with add-on code
- UPC-E with add-on code
- China Postal Code
- Codabar
- Code 11
- Code 32
- Code 39 (full ASCII)
- Code 39 (Standard)
- Code 93
- Code 128
- Delta Code
- EAN-8 with add-on code
- EAN-13 with add-on code
- EAN 128
- Interleaved 2 of 5
- ISBN / Bookland EAN
- ISBT 128
- Italian Pharmacy
- Label Code IV
- Label Code V
- MSI / Plessey
- Standard 2 of 5
- Toshiba Code
- UPC-A with add-on code
- UPC-E with add-on code
Maximum Scan Resolution: 6 mil
Depth of Field: 78.7 mil@

General Information

Product Type: Swipe Barcode Scanner
Brand Name: Unitech
Manufacturer: Unitech Electronics Co., Ltd
Product Model: MS140-3
Product Name: MS140-3 Barcode Slot Reader

Physical Characteristics

Height: 1.3"
Width: 2.4"
Depth: 4.9"
Weight (Approximate): 6.70 oz

Interfaces/Ports

Host Interface: Keyboard Wedge

Warranty

Limited Warranty: 1 Year

Other

Additional Information: Scan Rate: 750mm/sec

Extended Details
