Unitech MS146-4UMG Barcode Card Reader Unitech MS146-4UMG Barcode Card Reader Unitech MS146-4UMG Barcode Card Reader Unitech MS146-4UMG Barcode Card Reader Unitech MS146-4UMG Barcode Card Reader

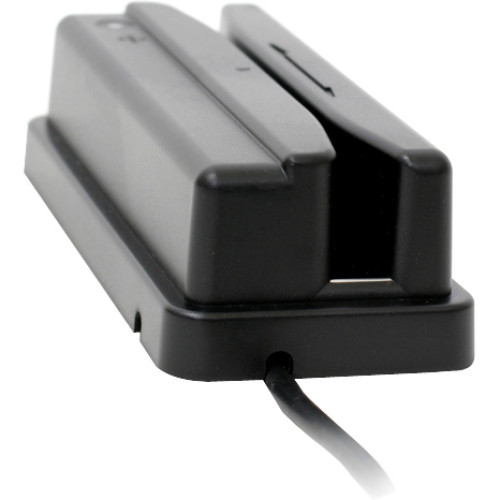

Unitech MS146-4UMG Barcode Card Reader
Part #: MS146-4UMG | SKU: UNI207029

The MS146 family of bar code slot readers is a flexible, cost effective solution when you demand a reliable and rugged slot reader. With a resolution of up to 6 mils (0.15 mm), the MS146 is capable of reading any bar coded identification badge. It's sealed optical system is available in both visible light or infrared. The infrared units ensure accurate reading of either visible and laminated badges. Its water resistant base, rugged housing, and IP54 rated sealing make the MS146 a popular choice in any environment. An optional mounting bracket is available to safely secure the unit in any direction. Currently, the MS146 is available in USB interface. Decoded versions are easy to use and configure. All decoded MS146s can be configured with Scanner Configuration Manager software. And configurations can be duplicated in other units by generating custom setup labels.

Unitech MS146-4UMG Barcode Card Reader

Part Details: Unitech MS146 Barcode Slot Reader - Cable Connectivity - LED - Serial
Need a different version of the Unitech MS146 Barcode Card Reader? View all 20 configurations

Additional Information

Indoor Outdoor Ruggedness Outdoor
Interface Options USB-Keyboard Emulation
Manufacturer Unitech
Model Name MS146
Scanner Capability 1D
Type No
Unitech MS146 Specs Unitech MS146 Specs (pdf)

Technical Information

  • Connectivity Technology: Cable
  • Light Source: LED
  • Barcode Symbology Supported:
    • Code 39 standard and full ASCII
    • EAN-13
    • UPC-A
    • EAN-8
    • UPC-E
    • Standard 2 of 5
    • Code 128
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Delta Code
    • Label Code
    • Plessey Code
    • Codabar
    • Code 39 standard and full ASCII
    • EAN-13
    • UPC-A
    • EAN-8
    • UPC-E
    • Standard 2 of 5
    • Code 128
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Delta Code
    • Label Code
    • Plessey Code
    • Codabar
  • Maximum Scan Resolution: 6 mil
  • Depth of Field: 0.70"@

General Information

  • Product Type: Swipe Barcode Scanner
  • Brand Name: Unitech
  • Manufacturer: Unitech Electronics Co., Ltd
  • Product Model: MS146
  • Product Name: MS146 Barcode Slot Reader

Physical Characteristics

  • Height: 3.8"
  • Width: 1.4"
  • Depth: 1.9"
  • Weight (Approximate): 6.70 oz

Interfaces/Ports

  • Host Interface: Serial

Warranty

  • Limited Warranty: 2 Year

Other

  • Platform Supported: PC
Extended Details
