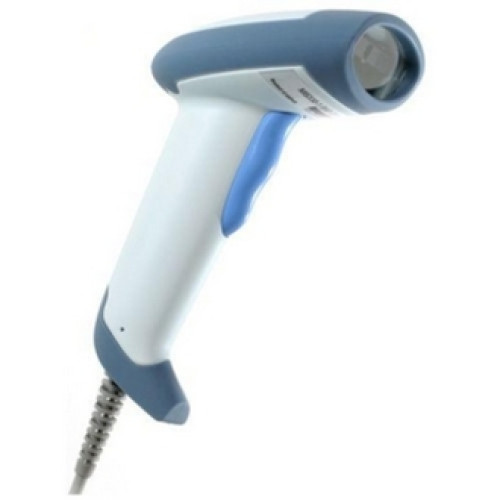

Unitech MS330-1K Barcode Scanner
Part #: MS330-1K | SKU: UNI32240

The MS330 from Unitech delivers easy-to-use, reliable performance at an affordable price for bar code reading applications in retail, office automation, post office, healthcare, and many others in light industry.

Unitech MS330-1K Barcode Scanner

Part Details: Unitech MS330-1K Bar Code Reader - Wired - CCD

Need a different version of the Unitech MS330 Barcode Scanner? View all 5 configurations

Additional Information

Manufacturer AIDC	Unitech
Model Name	MS330
Scanner Capability	1D

Unitech MS330 Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Symbologies Supported:
- Code 39 Full ASCII
- Code 39
- Interleaved 2 of 5
- Standard 2 of 5
- Code 32
- MSI/PLESSEY
- Toshiba Code
- Italian Pharmacy
- Codabar
- Code 11
- UPC-A
- UPC-E
- EAN-13
- EAN-8
- China Postal Code
- Code 93
- Delta Distance Code
- EAN-128
Scanner Type: CCD
Scan Rate: 50 Scans/sec
Interface Options: Keyboard Wedge
Interface Connectivity: Corded
Input Voltage: 5 V DC

General Information

Manufacturer: Unitech
Product Name: MS330-1K Barcode Scanner

Physical Characteristics

Dimensions: 7.1" (180.34mm) x 2.75" (69.85mm) x 3.9" (99.06mm)
Weight: 164 g

Environmental Conditions

Temperature:
- 0Â°C (32Â°F) to 50Â°C (122Â°F) Operating
- -20Â°C (-4Â°F) to 60Â°C (140Â°F) Storage
Humidity: 20 to 85%

Other

Package Contents:
- MS330-1K Barcode Scanner
- Keyboard Wedge Cable
Cables Included: Keyboard Wedge

Agency Approvals

Agency Approvals:
- CE BSMI FCC
- CEBSMIFCC

Warranty

Manufacturer Warranty: 5 Year(s) Limited
