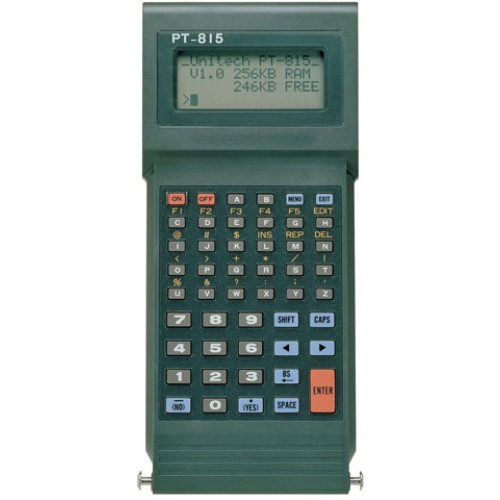

Unitech PT815 Handheld Computer

Unitech PT815 Handheld Computer

The rugged and lightweight PT815 Portable Data Terminal is the right tool for a variety of data collection applications. Its input port accepts either a wand CCD handheld laser or badge reader. And a 49 key alphanumeric keypad speeds data entry making it ideal for inventory control order taking asset tracking and general data collection applications. Furthermore 4 programmable keys and a four-line LCD display support development of user-friendly applications. It operates on a rechargeable NiCd battery pack or standard AA alkaline batteries. Data retention is ensured with a lithium backup battery.

Features:

  • Menu driven system operation
  • 16 x 4 LCD, 64 to 256 KB memory and real time clock
  • Embedded system diagnostics and menu-based on-board programming
  • Full alphabetic keypad with separate numeric keys
  • Supports wand, CCD, laser scanner or ID badge reader
  • Custom EPROM implementation
  • Audio buzzer provides feedback from keypad and bar code reading
  • Operates with a NiCd battery pack or 4 AA alkaline batteries
  • Onboard lithium battery for data retention
  • Built-in protection from accidental recharge of alkaline batteries
  • Power low indication for main and backup batteries
  • Built-in PC AT and PS/2 keyboard wedge functionality
  • 1 year warranty

The rugged and lightweight PT815 is the right tool for a variety of data collection applications. Its input port accepts either a wand, CCD, hand-held laser or badge reader. And a 49-key alphanumeric keypad speeds data entry, making it ideal for inventory control, order taking, asset tracking and general data collection applications. Furthermore, 4 programmable keys and a four-line LCD display support development of user-friendly applications.

It operates on a rechargeable NiCd battery pack or standard AA alkaline batteries. Data retention is ensured with a lithium backup battery.

Application Development Tools: With its Resident Operating Program or ROP, users can develop applications for the PT805 by simply defining the prompts and type of information to be captured. The process requires no programming experience. Additionally, we offer JobGen, an optional high-level program generator, which provides a Macro language and more data processing power.

For sophisticated applications, C language is supported through the use of C815, a proprietary C compiler. Programs generated with C815 can be stored in the unit's EPROM, providing a customized solution.

Extended Details
Refine Your Options
Shop By
Shopping Options
RAM Memory
  1. 128 KB (1)
  2. 256 KB (1)
  3. 64 KB (1)
  1. PT815-0B - Unitech PT815 Handheld Computer

    Portable Data Terminal (64KB RAM, Upload Cable, SS, Adapter and Nicad Battery)
  2. PT815-1B - Unitech PT815 Handheld Computer

    Portable Data Terminal (128KB RAM, Cable, Strap, AC Adapter and Software Bundle)
  3. PT815-2B - Unitech PT815 Handheld Computer

    Portable Data Terminal (with 256K Memory, 4 x 16 LCD, 49 Alphanumeric Rubber Keys, 5 Programmable Function Keys, Cable, AC Adapter, NiCad Battery and Software)

3 Item(s)
