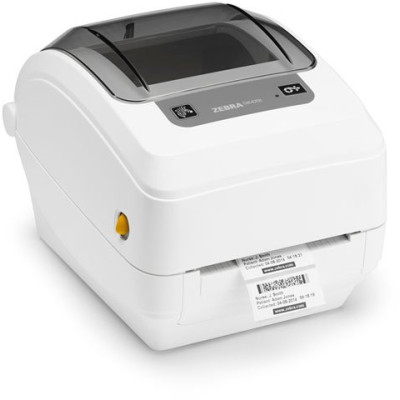

Zebra GK420t Healthcare Barcode Label Printer

Zebra GK420t Healthcare Barcode Label Printer

Zebra GK420t Healthcare Barcode Label Printer

Designed specifically for health care applications, the GK420 Health care desktop printers are constructed using disinfectant-ready plastics to help clinicians safeguard patient health. As a thermal transfer printer, the GK420t Health care printer produces labels that are extremely durable. Ideal for printing long-lasting laboratory and asset-tracking labels that may be subject to harsh cleaning products, sterilization or temperature extremes.
See all options
Zebra GK420t Healthcare Specs Zebra GK420t Healthcare Specs (pdf) Zebra GK420t Healthcare Driver Zebra GK420t Healthcare Driver (download)

STANDARD FEATURES

  • Print speed: up to 5" (127 mm) per second
  • Disinfectant-ready plastics
  • Medical-grade power supply
More Standard Features
  • Print method: thermal transfer
  • Programming language: EPL and ZPL are standard
  • Construction: dual-wall frame
  • Tool-less printhead and platen replacement
  • OpenACCESS™ for easy media loading
  • Quick and easy ribbon loading
  • Auto-calibration of media
  • Triple connectivity: USB, Parallel, Serial
  • ENERGY STAR® qualified
Printer Specifications
  • Resolution: 203 dpi/8 dots per mm
  • Memory: Standard - 4 MB Flash; 8 MB SDRAM
  • Print Width: 4.09”/104 mm
  • Maximum Print Length: 39.0”/990 mm
  • Maximum Print Speed: 5”/127 mm per second
  • Media Sensors: Fixed reflective and transmissive sensors
Media Characteristics
  • Maximum Label and Liner Length: Non-continuous - 39”/990 mm
  • Maximum Label and Liner Width: 0.75”/19 mm to 4.25”/108 mm
  • Maximum Media Roll Size: 5”/127 mm O.D.
  • Media Thickness: 0.003”/0.08 mm to 0.0075”/0.19 mm
  • Media Types: Roll-fed or fan-fed, die-cut or continuous direct thermal labels with or without black line, tag stock, continuous receipt paper, wristbands
Ribbon Characteristics
  • Outside diameter: 1.36"/35 mm
  • Standard length: 244'/74 m
  • Ratio: 1:1 media to roll to ribbon
  • Width: 1.33"/33.8 mm to 43"/109.2 mm
  • Core inner diameter: 0.5"/12.7 mm
Operating Characteristics

Environmental

  • Operating temperature: 40° F/4.4° C to 105° F/41° C
  • Storage temperature: -40° F/-40° C to 140° F/60° C
  • Operating humidity: 10% to 90% non-condensing
  • Storage humidity: 5% to 95% non-condensing

Electrical

  • Auto-detectable (PFC Compliant) 100-240VAV, 50-60Hz
  • ENERGY STAR qualified
  • IEC 60601-1 Certified

Agency Approvals

  • Emissions: FCC Part 15, Subpart B (Class B), ICES 003
  • Emissions and Susceptibility: EN55022 (Class B), EN55024, EN61000-3-2, EN61000-3-3
  • Safety: CB Scheme IEC 60950-1, TUV NRTL
Physical Characteristics
  • Width: 7.6" (194 mm)
  • Height: 7.5" (191 mm)
  • Depth: 10" (254 mm)
  • Weight: 4.6 lbs (2.1 kg)
Communication and Interface Capabilities
  • RS-232 auto-sensing Serial interface, DB-9
  • USB V1.1, bi-directional
  • Centronics® parallel
  • Ethernet—10/100 internal (optional, replaces Serial and Parallel ports)
 ZebraLink™ Solutions:

Software

  • ZebraDesigner™ Pro
  • ZebraDesigner
  • ZebraNet™ Bridge Enterprise
  • ZebraNet Utilities v7.0
  • ZebraDesigner Driver
  • ZBI-Developer™
  • POS Driver

Networking and Connectivity

  • Ethernet—10/100 internal (optional) offered in combination with USB and Serial interface (replaces Parallel port)

Firmware

  • EPL2™
  • ZPL II®
  • Web View
  • Alert
  • ZBI™
Fonts/Graphics/Symbologies

Fonts and Character Sets

  • 16 resident expandable ZPL II bitmap fonts
  • One resident scaleable ZPL font
  • Five resident expandable EPL2 fonts
  • Native open type font support
  • Unicode™ compliant for multi-language, on- demand thermal printing

Graphic Features

  • Supports user-defined fonts and graphics— including custom logos
  • ZPL II drawing commands—for boxes and lines

Barcode Symbologies

  • Barcode Ratios: 2:1 (non-rotated) and 3:1
  • Linear Barcodes: Codabar, Code 11 (ZPL), Code 128, Code 39, Code 93, Code 93, EAN-13, EAN-8, EAN-14 (ZPL), German Post Code (EPL), Industrial 2-of-5 (ZPL), Interleaved 2-of-5, Japanese Postnet (EPL), ISBT-128 (ZPL), Logmars (ZPL), MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5 (ZPL), UCC/EAN-128 (EPL), UPC and EAN 2 or 5 digit extensions (ZPL), UPC-A, UPC-A and UPC-E with EAN 2 or 5 digit extensions, UPC-E, and GS1 Databar (formerly RSS)
  • 2-Dimensional: Codablock (ZPL), Code 49 (ZPL), Data Matrix, MaxiCode, QR Code, PDF417, MicroPDF417, Aztec (For EPL and ZPL except where noted)

Options and Accessories

  • ZebraNet® 10/100 Print Server—Internal Ethernet for network communication and printing
  • Font Packs—Asian and other international font kits
  • ZKDU™ and KDU Plus™ keyboard display units for stand-alone printing solutions
  • Interface cables and adapters
Extended Details
