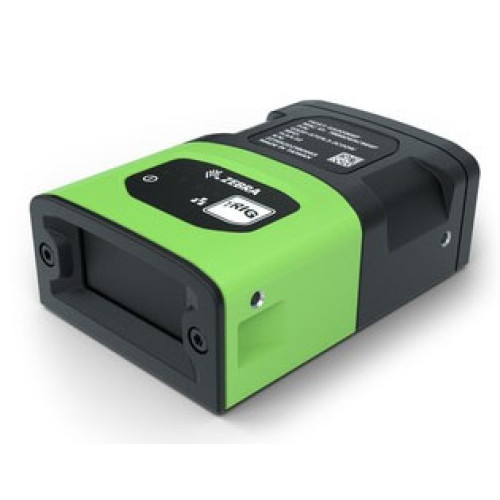

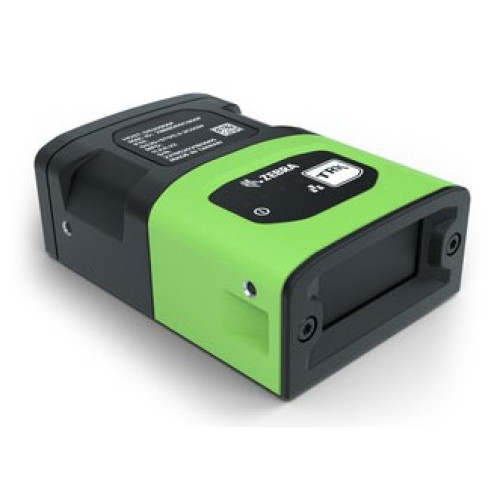

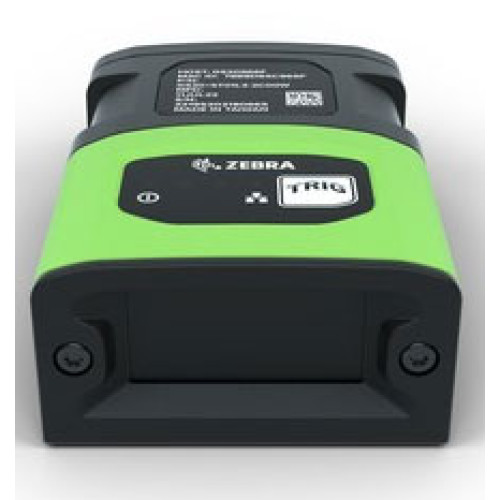

Zebra GS20 Wireless Transmitter / Receiver

The GS20, a robust industrial connectivity gateway, revolutionizes scan tunnel architecture to significantly boost package tracking and sorting throughput. In conventional scan tunnels, every camera captures barcodes, processes the information, and forwards it to the host, with one camera acting as the coordinator. Employing the GS20 as the leader, connected cameras function solely to capture barcodes. With the capability to support up to 16 cameras, the GS20 consolidates all barcode data, speeding up transmission to the host and eliminating processing delays, leading to peak performance of all cameras in the tunnel. This ensures you get the maximum worth from your scan tunnel investments. Moreover, the GS20 is user-friendly, easy to install and manage, with no coding expertise needed. Its rugged, dustproof, and waterproof construction guarantees reliable operation wherever you implement a scan tunnel. Boost your throughput with cutting-edge scan tunnel architecture. For more information, visit www.zebra.com/gs20

Transformative scan tunnel architectureSince the GS20 receives all barcode data, cameras no longer need data processing capabilities, resulting in three significant benefits: simplified setup, increased speed of camera scanning, and enhanced conveyor speed, thereby boosting throughput.

The integrated web-based HMI graphical user interface allows administrators to navigate and configure GS20 settings, including barcode data management from all cameras.

The GS20 filters out duplicate barcodes and extracts the needed data for the host application using string filters — allowing exact string match, beginning, end, or any part of the string.

Provides higher camera connectivity than competitors, offering flexible configurations for various package sizes and label positions.

Automatic GPIO mirroring makes configuring trigger modes for up to 16 cameras as straightforward as setting up one camera — all I/O settings are then mirrored across all cameras.

Select the scan mode that matches your application best — single shot, level, continuous, or presentation mode.

Integrates effortlessly with existing production lines and control systemsBuilt-in support for Rockwell, Siemens, Mitsubishi, and Omron PLC devices significantly reduces deployment time and expenses.

The aluminum enclosure is resistant to chemicals and oils. Featuring IP65 and IP67 ratings, the GS20 is both dustproof and waterproof.

The GS20 can connect to nearly any TCP/IP-enabled device, offering high flexibility in configurations. Scan tunnels can be outfitted with different camera models, handheld scanners, and third-party devices, providing a competitive edge.

Lower the complexity and cost of setup with Power-over-Ethernet (PoE) support. This feature powers the GS20 and accessories directly via the network, eliminating the need for separate power sources. If PoE is unavailable, the GS20 can also be powered with a standard 24V DC power supply.

The GS20 uses the same accessories as Zebra’s Fixed Industrial Scanner lineup, simplifying purchasing, deployment, and management processes.

Does not require a dedicated computer or additional softwareSince the GS20 handles all data processing, there is no need for an extra desktop computer or software.

Monitor the live performance of the GS20 leader and all follower cameras from a single, easy-to-read status page. Alerts notify administrators immediately if a camera disconnects.

The GS20 is designed to work with most current and future Zebra fixed industrial scanners and other TCP/IP-enabled devices, safeguarding against obsolescence.

Zebra OneCare™ Essential and Select Support Services provide top-notch performance and device uptime. Avoid unforeseen disruptions and unplanned repair costs with coverage for all potential issues, including normal wear and tear and accidental damage. Tailor your support plan to your business needs with options like next-day device replacement, on-site support, and cloud-based visibility into your contracts and more.

is compatible with nearly all current and future Zebra Fixed Industrial Scanners and any TCP/IP-enabled device, such as handheld scanners, allowing for a diverse mix of compatible devices in your setup.
