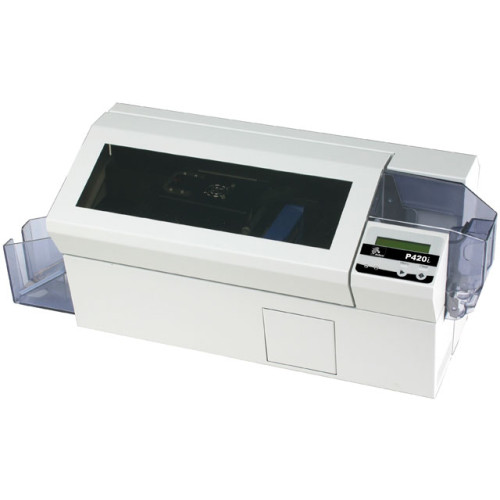

Zebra P420i ID Card Printer

Zebra P420i ID Card Printer

The Zebra P420i is a robust, double-sided card printer with LCD display and convenient, easy-to-use features for producing high quality, personalized photo ID cards on-demand for high volume applications.
General Specifications
  • High speed card printing
  • 102cards/hour full color, dual sided (YMCKOK)
  • 4MB image memory standard
  • Standard card flip over feature for dual-sided printing
  • Windows drivers for 98, 2000, NT, ME, XP
  • One year printer warranty
  • One year (unlimited passes) printhead warranty
  • Passcode electronic lock
Color Printing
  • Color dye sublimation or monochrome thermal transfer printing
  • 35 seconds per card, dual sided (YMCKOK)
  • 300 dpi (11.8 dots/mm) print resolution
Barcodes
  • Code 39
  • Code 128 B & C with and without check digit
  • 2 of 5 & 2 of 5 Interleaved
  • UPC-A
  • EAN 8 & EAN 13
  • PDF-417 2D barcode and other symbologies available via Windows drivers.
Fonts
  • True Type fonts via Windows driver.
Card Specifications
  • Types: PVC, PVC Composite
  • Card width/length: ISO CR-80 - ISO 7810, 2.12" (54mm) x 3.38" (86mm)
  • Magnetic Stripe - ISO 7811
  • Smart Card - ISO 7816-2
  • Card thickness: 30 mil (.76mm) to 60 mil (1.524mm)
  • Card feeder capacity: 100 cards (30 mil)
  • Card hopper capacity: 100 cards (30 mil)
Ribbon Specifications
  • i Series Printers require the use of i Series Ribbons for full color printing
  • KdO: 500 cards/roll
  • KrO: 500 cards/roll
  • YMCKOK: 170 cards/roll
  • YMCKO: 200 & 330 cards/roll
  • Overlay varnishes (clear & hologram): 350 cards/roll
Communications Interface
  • USB & Parallel (parallel cable included)
  • Ethernet Option
Mechanical
  • Width: 20.90" (523 mm)
  • Depth: 10.17" (253 mm)
  • Height: 10.76" (269 mm)
  • Weight: 27.5 lbs (12.5 kg)
Electrical
  • 110 - 240 Volts AC, 50/60 Hz (auto switching)
  • FCC Class B, CE, UL, and CUL approved
Environmental
  • Operating temperature: 60° - 86°F (15° - 30°C)
  • Operation humidity: 20% - 65% non-condensing
  • Storage temperature: 23°F to 158°F (-5°C to 70°C)
  • Storage humidity: 20% - 70% non-condensing
  • Ventilation: Free air
Options
  • Ethernet
  • Smart Card contact station (30 mil cards only)
  • Magnetic encoder (30 mil cards only)
  • Cleaning supplies
  • Service manual
  • Extended warranty program
  • Hot Swap warranty program (USA only)
Extended Details
Refine Your Options
Shop By
Shopping Options
Print Resolution
  1. 300 dpi (4)
  1. Zebra P420I-0000C-ID0 ID Card Printer
    Part #: P420I-0000C-ID0 | SKU: ZEB16440

    Zebra P420i Card Printer - Color, Color - 300 dpi - USB
  2. Zebra P420I-0000U-ID0 ID Card Printer
    Part #: P420I-0000U-ID0 | SKU: ZEB16441

    Zebra P420i Card Printer - Color - 35 Second Color - 300 dpi - USB, Parallel
  3. Zebra P420I-0M10U-ID0 ID Card Printer
    Part #: P420I-0M10U-ID0 | SKU: ZEB16443

    P420i, Double-sided printing, Parallel & USB interfaces, High-Coercivity Magnetic Stripe (stripe down) encoder, color printing, US Power cord & Parallel cable included. Order USB cable separately, see accessories.
  4. Zebra P420I-E000U-ID0 ID Card Printer
    Part #: P420I-E000U-ID0 | SKU: ZEB16445

    Zebra P420i Card Printer - Color - 35 Second Color - 300 dpi - USB, Parallel
  5. Zebra P420I-EM20U-ID0 ID Card Printer
    Part #: P420I-EM20U-ID0 | SKU: ZEB16448

    P420i, Two-sided printing, Parallel & USB interfaces, High Coercivity Magnetic Stripe encoder, Smart Card encoder, US Power cord & Parallel cable included. Order USB cable separately, see accessories.
  6. Zebra P420I-0M10C-IDO ID Card Printer
    Part #: P420I-0M10C-IDO | SKU: ZEB24159

    P420i, Two-sided printing, USB & Ethernet interfaces, High Coercivity Magnetic Stripe encoder, US Power cord & Parallel cable included. Order interface cable separately, see accessories.

6 Item(s)

Recommended Accessories for Model: Zebra P420i ID Card Printer

  • Cables To Go 13400 Accessory
    Part #: 13400 | SKU: CAB143521

    Cables, 10 ft. USB cable (USB 2.0, A to B). Replaces (Part# USB-5000-03M).
    Price: $8.50
    In Stock
  • Cables To Go 13172 Accessory
    Part #: 13172 | SKU: CAB143509

    Cables, 6 ft. USB cable (USB 2.0, A to B). Replaces (Part# USB-5000-02M).
    MSRP: $6.99 Price: $6.54
    In Stock
  • Zebra 105909-162 Accessory
    Part #: 105909-162 | SKU: ZEB30820

    Line cord for P310C, P310i, P330i, P420i, P430i, P520i
    MSRP: $78.90 Price: $58.13
  • Zebra 105909-169 Accessory
    Part #: 105909-169 | SKU: ZEB379

    cleaning kit 50 cleaning cards & 24 swabs. Compatible with P330m, P330i, P430i, P520i, P630i, P640i, P205, P210i, P310f, P310i, P320i, P420i, P620, P720i
  • Zebra 52184 Cables, Connectors, and Adapters
    Part #: 52184 | SKU: ZEB207926

    Cables - Connectors - and Adapters - Zebra - 9-Pin Male To 9-Pin Female - 6-Foot

Recommended Labels for Model: Zebra P420i ID Card Printer

  • Zebra 800015-101 ID Card Ribbon
    Part #: 800015-101 | SKU: ZEB417

    ID Card Printer Ribbons - Zebra - Black True Colors C-Series Monochrome Ribbon - P3XX - P4XX - P5XX - P600 Compatible - 1000 Images Per Roll - Priced Per Roll
  • Zebra 800015-102 ID Card Ribbon
    Part #: 800015-102 | SKU: ZEB418

    ID Card Printer Ribbons - Zebra - Red True Colors C-Series Monochrome Ribbon - P3XX - P4XX - P5XX - P600 Compatible - 1000 Images Per Roll - Priced Per Roll
  • Zebra 800015-104 ID Card Ribbon
    Part #: 800015-104 | SKU: ZEB420

    ID Card Printer Ribbons - Zebra - Blue True Colors C-Series Monochrome Ribbon - P3XX - P4XX - P5XX - P600 Compatible - 1000 Images Per Roll - Priced Per Roll
  • Zebra 800015-106 ID Card Ribbon
    Part #: 800015-106 | SKU: ZEB421

    ID Card Printer Ribbons - Zebra - Metallic Gold True Colors C-Series Monochrome Ribbon - P3XX - P4XX - P5XX - P600 Compatible - 1000 Images Per Roll - Priced Per Roll
  • Zebra 800015-107 ID Card Ribbon
    Part #: 800015-107 | SKU: ZEB422

    ID Card Printer Ribbons - Zebra - Metallic Silver True Colors C-Series Monochrome Ribbon - P3XX - P4XX - P5XX - P600 Compatible - 1000 Images Per Roll - Priced Per Roll

Recommended Warranties for Model: Zebra P420i ID Card Printer

  • Zebra CHS420-2 Service Contract
    Part #: CHS420-2 | SKU: ZEB91551

    Service Contract - 2 year, Hot Swap Loaner agreement - 2 Year, P420i
    MSRP: $790.00 Price: $588.61
    In Stock
  • Zebra CHS420-3 Service Contract
    Part #: CHS420-3 | SKU: ZEB91552

    Service Contract - 3 year, Hot Swap Loaner agreement - 3 Year, P420i
    MSRP: $1,185.00 Price: $882.91
    In Stock
  • Zebra CB0-P420-200 Service Contract
    Part #: CB0-P420-200 | SKU: ZEB91461

    Service Contract - 2 year, Care Depot Maintenance Agreement for P420i, Standard
  • Zebra CB0-P420-1C0 Service Contract
    Part #: CB0-P420-1C0 | SKU: ZEB91460

    Zebra ZebraCare Advantage Maintenance Agreement - 1 Year Extended Service - Service
  • Zebra CB0-P420-2C0 Service Contract
    Part #: CB0-P420-2C0 | SKU: ZEB91462

    Service Contract - 2 year, Care Depot Maintenance Agreement for P420i, Standard, Comprehensive Coverage
