Zebra P4T Mobile Label Printer

Zebra P4T Mobile Label Printer

With the Zebra P4T, you can print long-life bar code labels and documents up to 4" wide that withstand harsh and outdoor enivronments. The P4T serves many industries, including government, manufacturing, transportation, logistics, mobile workforce and healthcare.
Discontinued - Need Assistance
See all options
  • Prints barcode labels and documents up to 4" wide with a peel mode
  • 203 dpi resolution
  • Thermal transfer and direct thermal printing modes
  • 32 bit processor
  • USB 2.0 and serial connection

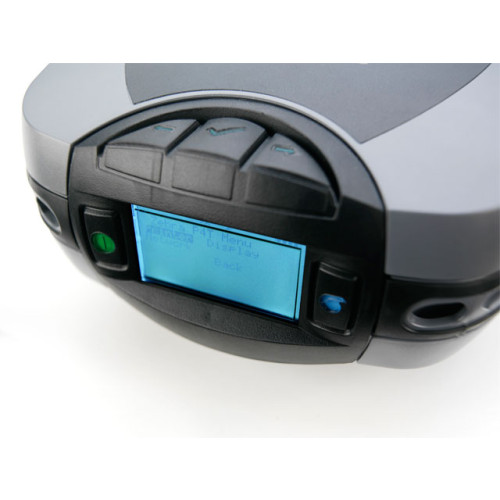

  • Large LCD that is daylight readable and low level illumination for low-light conditions
  • Open access design for easy media and ribbon loading
  • Resident scalable fonts
  • Supports vertical or horizontal printing
  • Tolerance of multiple drops up to 5' to concrete
  • Smart battery and cartridge
  • Optional Bluetooth and Wi-Fi interfaces

STANDARD FEATURES

  • Prints barcode labels and documents up to 4" wide with a peel mode
  • Thermal transfer and direct thermal printing modes
  • 32 bit processor

More Standard Features
  • USB 2.0 and serial connection
  • Large LCD that is daylight readable and low level illumination for low-light conditions
  • Open access design for easy media and ribbon loading
  • Resident scalable fonts
  • Supports vertical or horizontal printing
  • Fanfold support
  • Tolerance of multiple drops up to 5' to concrete
  • Smart battery and cartridge
  • Shoulder strap

Printer Specifications

Resolution: 203 dpi (8 dots/mm)

Memory

  • 8 MB Flash
  • 16 MB RAM

Print width 4.09" (104 mm)

Print length

  • Maximum Print Length - at least 36" (914 mm) - actual length depends upon total memory usage
  • Minimum Label Length - 1.25" (31.75 mm)

Print speed

  • Direct thermal 3" (76 mm)/sec
  • Thermal transfer 1.5" (38 mm)/sec

Optional Features
  • Bluetooth
  • 802.11b/g
  • RFID
  • Fanfold slot
  • International character sets
  • Application-specific accessories

Media Characteristics

Maximum label and liner width: 4.12" (104.6 mm)
Minimum label and liner width: 2.00" (50.8 mm)
Media width: 2.00" (50.8 mm) x 4.09" (103.9 mm)
Maximum roll diameter: 2.60" (66.0 mm)
Core diameter: .75" (19.0 mm)

Media Thickness:

  • Receipt paper minimum 0.0032" (0.08 mm)
  • Labels maximum 0.0082" (0.21 mm)
  • Tag maximum 0.0065" ( 0.16mm )

Media types: fanfold, receipt, tag, tag stock, black bar, gap, continuous, continuous receipt


Ribbon Characteristics

Standard length: 1180.8" (29992.3 mm)
Ratio: 2 rolls of media to 1 roll of ribbon
Ribbon width: 4.33"


Operating Characteristics

Operating temperature TT:32° F (0° C) to 113° F (45° C)
Thermal transfer DT:
Operating temperature: -4° F (-20° C) to 122° F (50° C)
Direct thermal Storage temperatures: -22° F (-30° C) to 149° F (65° C)
Operating humidity: 10% to 90%
Storage humidity: 10% to 90%
Rechargeable Li-Ion battery
4200 mAh
7.4V

Agency approvals

  • EMC: FCC Part 15 and EN55022 Class B limits;
  • Radio approval for BT, 802.11b/g & RFID: FCC, Industry Canada
  • Safety: IEC 60950, NRTL marking for US & Canada
  • EU: EMC, LVD, R&TTE Directives

Physical Characteristics

Width: 7" (177.8 mm)
Height: 8.6" (218.4 mm)
Depth: 3" (76.2 mm)
Weight: 2.9 lbs (1.32 kg)
Shipping weight: 4.1 lbs (1.9 kg)


Related Products

Options

  • Wireless connectivity options
  • Bluetooth™ 2.0 short range connectivity
  • Wireless LAN (802.11b/g)
  • Class1 Gen 2 RFID encoder
  • AC Adapter
  • AC Single Charger
  • Quad battery charger
  • RAM® mounting hardware for vehicles or forklifts
  • DC Adapter
  • In-vehicle mobile charger
  • Nylon soft case
  • Spare battery
  • Cables

Communication and Interface Capabilities

  • Communication interface: USB 2.0 and serial.
  • Wireless: Bluetooth, Short Range Radio Frequency connectivity.
  • Profiles supported: SPP.
  • WLAN (802.11b/g) support for the following security protocols: Airbeam Safe VPN, EAP-TLS, EAP-TTLS, LEAP, PEAP, EAP-FAST.
  • WPA with the protocols listed and WPA2-PSK (AES or TKIP).

Programming Languages

Core programming languages: CPCL-native, EPL, XML, ZPL, EPL2


barcodes/Symbologies

Linear Code 39
Code 93
UCC/EAN-128
Code 128
Codabar
Interleaved 2-of-5
UPC-A
UPC-E
EAN-8
EAN-13
EAN-8 and EAN-13 with 2 or 5 digit extensions
2-dimensional PDF417
MaxiCode
QR Code
RSS / GS1 DataBar family (12 barcodes)
Aztec
Data Matrix

Fonts and Graphics

  • Supports pre-scaled and scalable fonts
  • Scalable text feature
  • Standard resident fonts can be rotated in 90° increments
  • Supports user defined fonts and graphics and logos
  • Text concatenation to assign different character styles
  • Allows text magnification 1-16 times the original size
  • Proportional and fixed-width fonts
  • International character set support
  • US/Canadian English/Latin 1 & 5 (Incl. Turkish), Japanese 16x16, Japanese 24x24, Chinese 16x16 (traditional), Chinese 16x16 (simplified) ,Chinese 24x24 (simplified), Korean Mincho, Korean Myeong. Others available upon request.
