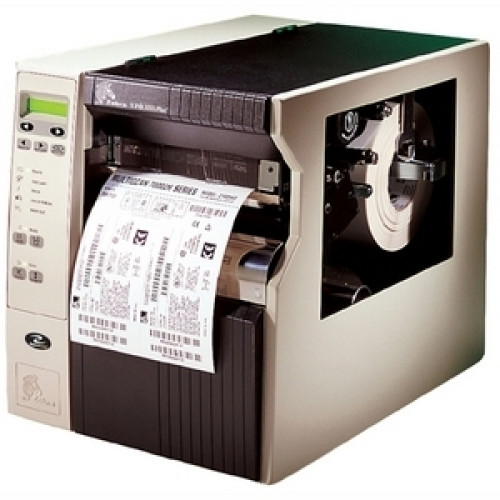

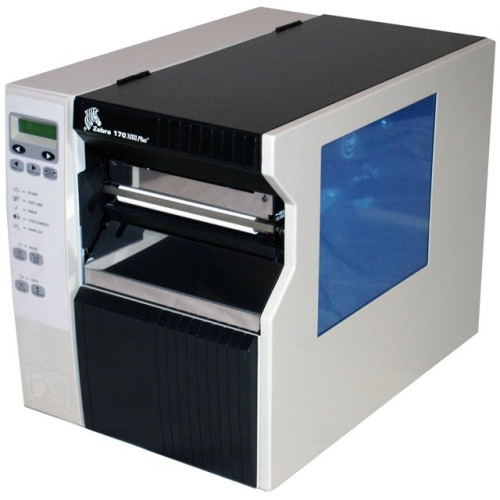

Zebra 172-701-00000 Barcode Label Printer Zebra 172-701-00000 Barcode Label Printer

Zebra 172-701-00000 Barcode Label Printer
Part #: 172-701-00000 | SKU: ZEB16650

The industrial-strength 170XiIIIPlus with 203- or 300-dpi print resolution can print large volumes labels up to 6.6 inches (168 mm) wide at 12 inches per second (ips), promoting greater productivity with less roll changes or execute intricate, high resolution print applications at a quick eight ips. With its all metal construction, this printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels, pallet shipping/receiving labels either on demand or in batches. The 170XiIIIPlus is designed to deliver maximum performance and reliability in your most demanding industrial applications.

Zebra 172-701-00000 Barcode Label Printer

Part Details: Thermal transfer Barcode printer (203 dpi, Serial, Parallel and USB Interfaces, 120 VAC Cord, No Media Option, 16MB SDRAM, Clear Media Side Door and Media Hanger)
Need a different version of the Zebra 170XiIIIPlus Barcode Label Printer? View all 20 configurations

Additional Information

Interface Options Parallel, Serial (RS-232), USB
Manufacturer Zebra
Max Roll Outer Diameter 8
Model Name 170XiIIIPlus
Print Resolution 203 dpi
Print Speed 8 ips
Printer Type Industrial
Printing Technology Thermal Transfer
Ribbon Core Size 1 inch
Zebra 170XiIIIPlus Specs Zebra 170XiIIIPlus Specs (pdf)

Technical Information

  • Print Method:
    • Direct Thermal
    • Thermal Transfer (TT)
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 8 ips
  • Interfaces:
    • 1 x Serial
    • 1 x Parallel
    • 1 x USB
  • Maximum Print Width: 6.6"
  • Maximum Label Width: 7.1"
  • Maximum Label Length: 39"
  • Media Sensor:
    • Transmissive
    • Reflective
  • Printer Language: ZPL II
  • Input Voltage Range: 90 to 264 V AC
  • RAM Memory: 16MB
  • Flash Memory: 4MB
  • Input Voltage: 120 V AC
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 15.5" (393.7mm) x 13.15" (334.01mm) x 19.5" (495mm)
    • 15.5" (393.7mm) x 13.15" (334.01mm) x x 19.5" (495mm)
  • Weight: 67 lb (30.39 kg)

Included Features

  • Included Features: Clear Media Side Door & Media Hanger

Agency Approvals

  • Agency Approvals:
    • BSMI
    • CB
    • CCC
    • CE
    • C-Tick
    • cUL
    • EN55022 Class B
    • EN55024
    • EN6100-3-2,3
    • FCC Class B
    • GOST-R
    • ICES-003 Class B
    • IEC 60950-1 / EN60950
    • NOM
    • S Mark
    • VCCI
    • ZIK
    • R.O.C. CNS 13438
    • Australia AS/NZS 3548
    • Argentina 92/98 Phase 3
    • Bi-National UL 60950 Third Edition/CSA /CAN/CSA-C22.2 No. 60950-00 Third Edition

Other

  • Package Contents:
    • 170XiIIIPlus Label Printer
    • User Guide
    • Accessories CD
    • 120 VAC Power Cord
    • Xi IIIPlus User's Guide
    • Utility & Driver CD
    • ZebraNet Connectivity CD
    • North American Edition Power Cord

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 104°F (40°C) Operating - Direct Thermal
    • 41°F (5°C) to 104°F (40°C) Operating - Thermal Transfer
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 20 to 85% Operating Non-condensing
    • 5 to 85% Storage Non-condensing

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Ribbon Setup: Wound Out

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Extended Details
