Zebra 220-801-00000-GA Barcode Label Printer Zebra 220-801-00000-GA Barcode Label Printer Zebra 220-801-00000-GA Barcode Label Printer Zebra 220-801-00000-GA Barcode Label Printer

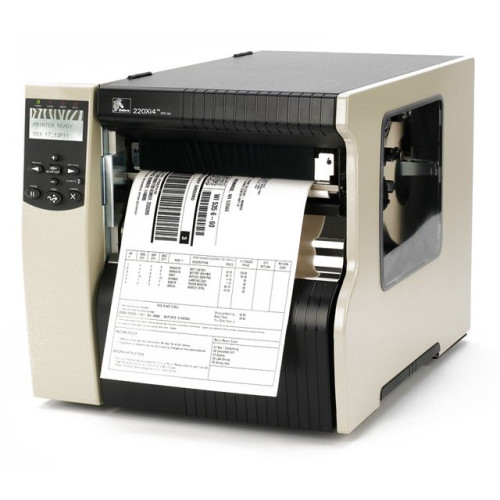

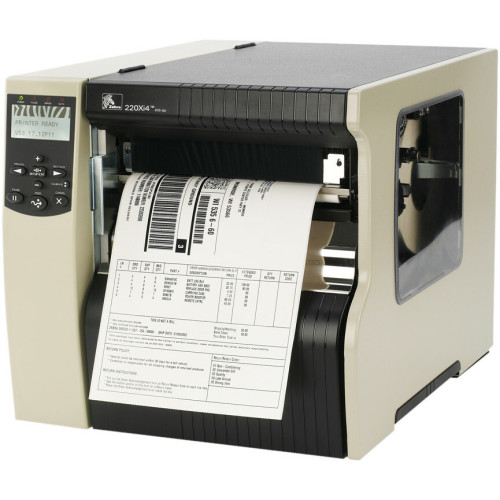

Zebra 220-801-00000-GA Barcode Label Printer
Part #: 220-801-00000-GA | SKU: ZEB121314

The Zebra 220Xi4 is designed to produce large labels up to 8.5" (216 mm) wide at 10" (254 mm) per second at 203 dpi and 6" per second at 300 dpi (152 mm) resolution. The 220Xi4 is ideal for industrial applications, including chemical drum (HAZMAT) identification labels, pallet/container shipping labels and product identification labels for large rolls of paper or textiles.

Zebra 220-801-00000-GA Barcode Label Printer

Part Details: Zebra 220Xi4 Direct Thermal/Thermal Transfer Printer - Monochrome - Label Print - Ethernet - USB - Serial - 8.50" Print Width - 10 in/s Mono - 203 dpi - Black Mark, Continuous Form, Roll Fed, Die-cut Label, Fanfold - 8.80" Label Width - 12.50 ft Label Length
Need a different version of the Zebra 220Xi4 Barcode Label Printer? View all 17 configurations

Additional Information

Interface Options Ethernet, Parallel, Serial (RS-232), USB
Manufacturer Zebra
Max Roll Outer Diameter 8
Model Name 220Xi4
Print Resolution 203 dpi
Print Speed 10 ips
Printer Type Industrial
Printing Technology Thermal Transfer
Zebra 220Xi4 Specs Zebra 220Xi4 Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 10 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 8.50"
  • Recommended Use: Label Print
  • Features: LCD Display
  • Barcode Symbology Supported:
    • Code 11
    • Code 39
    • Code 93
    • Code 128
    • Code 128-B
    • Code 128-A
    • Code 128-C
    • Code 128 UCC
    • UPC-A
    • UPC-E
    • EAN-8
    • EAN-13
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • Planet Code
    • Codabar
    • Codablock
    • PDF-417
    • Code 49
    • Data Matrix
    • Maxi Code
    • QR Code
    • TLC 39
    • Micro PDF
    • Aztec Code
    • RSS
    • GS1 DataBar

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: Xi
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: 220Xi4
  • Product Name: 220Xi4 Thermal Label Printer

Physical Characteristics

  • Height: 15.5"
  • Width: 15.8"
  • Depth: 20.4"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 8.80"
  • Maximum Label Length: 12.50 ft
  • Media Type:
    • Black Mark
    • Continuous Form
    • Roll Fed
    • Die-cut Label
    • Fanfold
  • Media Thickness: 12 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 1"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 3.20"

Other

  • Platform Supported: PC
  • Package Contents:
    • 220Xi4 Thermal Label Printer
    • North American Edition Power Cord
    • Xi4 User's Guid
    • ZebraNet Connectivity CD
    • 220Xi4 Thermal Label Printer
    • North American Edition Power Cord
    • Xi4 User's Guid
    • ZebraNet Connectivity CD
  • Certifications & Standards: TAA

Fonts & Emulation

  • Language Emulation:
    • XML
    • ZPL II

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 8 MB

Power Description

  • Input Voltage: 110 V AC
  • Power Source: AC Supply

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD
Extended Details
