Additional Information
| Interface Options | Parallel |
|---|---|
| Manufacturer | Zebra |
| Max Roll Outer Diameter | 5 |
| Model Name | LP 2824 |
| Print Resolution | 203 dpi |
| Printer Type | Desktop |
| Printing Technology | Direct Thermal |

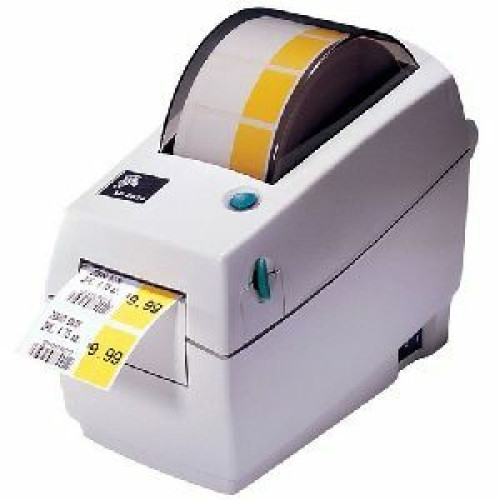

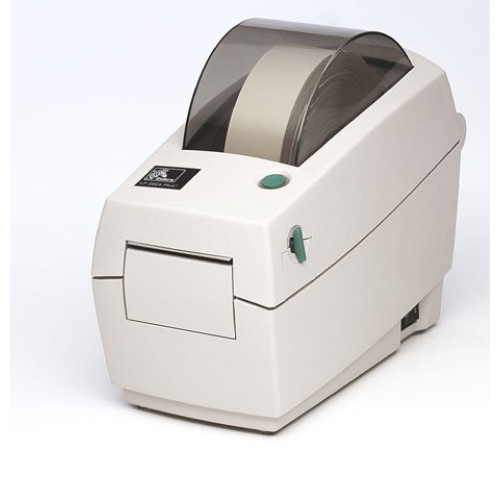

Zebra LP 2824 Specs
Technical Information
- Maximum Mono Print Speed: 4 in/s
- Maximum Print Resolution: 203 dpi
- Print Color: Monochrome
- Maximum Print Width: 2.20"
- Recommended Use: Label Print
- Barcode Symbology Supported:
- Code 39
- Code 128-A
- Code 128-B
- Code 128-C
- Code 93
- Codabar
- Interleaved 2 of 5
- UPC-A
- UPC-E
- UPC-A with 2 or 5 Digit Extension
- EAN-13
- EAN-8
- EAN-13 With 2 or 5 Digit Extension
- EAN-8 With 2 or 5 Digit Extension
- POSTNET
- Japan Postal
- Plessey
- RSS-14
- German Post Code
- MSI-3
- Maxi Code
- Micro PDF-417
- Macro PDF-417
- QR Code
- Data Matrix
General Information
- Product Type: Direct Thermal/Thermal Transfer Printer
- Brand Name: Zebra
- Manufacturer: Zebra Technologies Corporation
- Product Model: LP 2824
- Product Name: LP 2824 Thermal Label Printer
Physical Characteristics
- Height: 6.8"
- Width: 3.9"
- Depth: 7.5"
Interfaces/Ports
- Parallel Port: Yes
Other
- Platform Supported: PC
- Certifications & Standards:
- UL-CUL 1950
- FCC Class B
- VCCI Class B
- C-TICK
- EN 500082-1
- EN 55022 Class B / CISPR 24
- EN 55021/CISPR 24
- EN 60950/IEC 950
- EN 61000-3-2, 3-3
- CCC/CCIB
- NOM
- GOST
- IRAM
- CB
- CE
- BSMI
- Additional Information:
- Head-up sensor
- OpenACCESS design
- Soft font storage in Flash memory
- Media Thickness from 0.003" to 0.007"
- Construction: ABS double-walled casing
- Printer Font Set: USA and European
- Maximum label and liner length (optional) 22"
- User Documentation: English/European/Latin America
- 128 KB RAM & 512 KB Flash with No Real Time Clock
- Windows Code Pages Supported: 1250, 1251, 1252, 1253, 1254, 1255, 1256, 1257
- DOS Code Pages Supported: 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
- Media sensors:
- Transmissive
- Reflective
Media Types & Handling
- Maximum Label Width: 2.36"
- Maximum Label Length: 11"
- Media Type:
- Fanfold
- Roll Fed
- Die-cut Label
- Continuous Form
- Tag Stock
- Continuous Receipt
- Linerless
- Media Size: 2.36" x Roll Paper
- Media Thickness: 7 mil
- Media Sensor:
- Reflective Media Sensor
- Transmissive Media Sensor
- Label Core Size: 1.50"
- Maximum Roll Diameter: 5"
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
Memory
- Standard Memory: 128 KB
- Flash Memory: 512 KB
Network & Communication
- Ethernet: Yes
- Ethernet Technology: Fast Ethernet
Warranty
- Limited Warranty: 1 Year
Fonts & Emulation
- Language Emulation: EPL II
