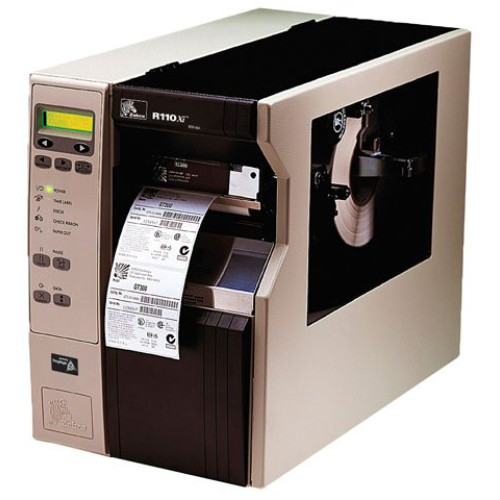

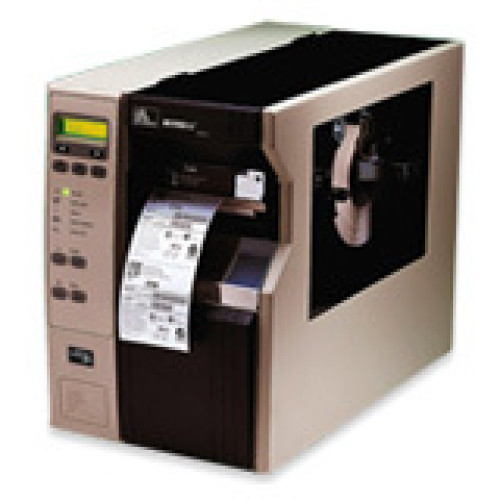

Zebra H12-701-00000 RFID Printer Zebra H12-701-00000 RFID Printer

Zebra H12-701-00000 RFID Printer
Part #: H12-701-00000 | SKU: ZEB47923

The R110Xi is a premier Zebra printer/encoder that combines two key functions for companies that need to comply with today's RFID mandates - printing standard bar code labels and encoding data into a passive RFID transponder embedded in the label. The R110Xi combines the strengths of the Xi platform with the versatility of the ThingMagic RFID reader module. This reader module offers the flexibility needed to guarantee a simple, cost-free upgrade path to Gen2 protocols. It conforms to multiple protocols (EPC Class 1, EPC Class 0, Matrics 0+, ISO18000-06, and Philips UCODE 1.19), is firmware upgradeable to EPC Global's Gen2 protocol, and gives users the assurance that they can seamlessly upgrade to future RFID protocols. The R110Xi features other innovations such as automatic inlay position calibration, multiple power levels, and label statistics tracking.

Zebra H12-701-00000 RFID Printer

Part Details: Zebra R110Xi HF Thermal Label Printer - Monochrome - 10 in/s Mono - 203 dpi - Serial, Parallel, USB
Need a different version of the Zebra R110xi RFID Printer? View all 13 configurations

Additional Information

Manufacturer Zebra
Model Name R110xi
Print Resolution 203 dpi
Zebra R110xi Specs Zebra R110xi Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 10 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4"
  • Recommended Use: RFID Label Print
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • EAN-8
    • EAN-13
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • ISBT-128
    • LOGMARS
    • MSI
    • Planet Code
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • UPC-A
    • UPC-E
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • Codablock
    • Code 49
    • Data Matrix
    • Maxi Code
    • PDF-417
    • QR Code
    • RSS
    • GS1 DataBar
    • TLC 39
    • Micro PDF
    • Aztec Code

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: RXi
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: R110Xi HF
  • Product Name: R110Xi HF Thermal Label Printer

Physical Characteristics

  • Height: 15.5"
  • Width: 10.4"
  • Depth: 19.5"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • R110Xi HF Thermal Label Printer
    • Power Cord (North American Edition)
    • Driver and Software CD
    • RXi User's Guide
    • R110Xi HF Thermal Label Printer
    • Power Cord (North American Edition)
    • Driver and Software CD
    • RXi User's Guide
  • Additional Information:
    • Label Tracking
    • Clear Media Side Door
    • RFID antenna port selection
    • 300 unique darkness settings
    • Multilingual backlit LCD display
    • Maximum read/write flexibility for small label printing
    • Place transponders virtually anywhere within a smart label
    • Enhanced Alert notification - monitors printhead condition
    • Multi-level Element Energy Equalizer (E3) for superior print quality
    • CompactFlash (up to 1 GB memory) for added label format/font storage
    • Automatic program position selection for optimal transponder placement
    • Fully integrated HF RFID Reader/Encoder supporting Mifare Ultralight, ISO15693 and ISO14443A

Media Types & Handling

  • Maximum Label Width: 4.50"
  • Maximum Label Length: 39"
  • Media Type:
    • Continuous Form
    • Die-cut Label
    • Black Mark
  • Media Thickness: 120 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Fonts & Emulation

  • Language Emulation:
    • ZPL II
    • XML

Power Description

  • Input Voltage: 110 V AC

Warranty

  • Limited Warranty: 1 Year
Extended Details
