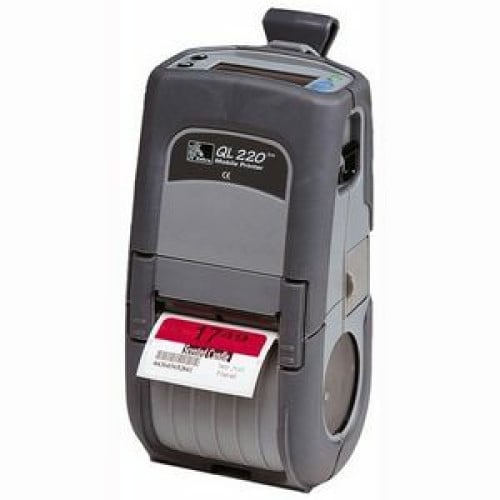

Zebra Q2B-LU1A0010-00 Portable Barcode Printer
Part #: Q2B-LU1A0010-00 | SKU: ZEB29823

At 1.04 lbs (.47 kg), the lightweight QL 220 is the smallest network addressable printer in the AIDC Industry. This 2 inch (50.8 mm) direct thermal mobile printer has been designed with the most advanced technology in rubberized over-molding to maintain both rugged construction and minimal weight. With center-loading media, smart battery monitoring, and an optional LCD, it provides user-friendly options to keep your business moving. The QL 220 is ideal for many applications, including price marking, shelf labeling, inter-store transfers, direct store vendor delivery and verification, and for mobile point-of-sale at boutique stores where space is at a premium. The QL 220's QuickLink modules, with Bluetooth or 802.11b radios, offer the flexibility to adjust to a wide range of connectivity needs. As needs change, so can QuickLink modules.

Zebra Q2B-LU1A0010-00 Portable Barcode Printer

Part Details: QL 220 Direct Thermal Mobile Printer (2 Inch Printhead, 2MB SRAM, 2MB Flash, LCD, Cable Ready, Linered Platen and Shoulder Strap)

Additional Information

Manufacturer Zebra
Max Roll Outer Diameter 2.2
Model Name QL220
Print Resolution 203 dpi
Printer Type Mobile
Printing Technology Direct Thermal

Technical Information

  • Print Method:
    • Direct Thermal
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 3 ips
  • Maximum Print Width: 1.89"
  • Maximum Label Width: 2.18"
  • Maximum Label Length: 32"
  • Media Sensor:
    • Reflective
    • Transmissive
  • Printer Language: CPCL-native
  • RAM Memory: 2MB
  • Flash Memory: 2MB
  • Mobile Printer: Yes
  • Power Source: Battery

General Information

Physical Characteristics

  • Dimensions:
    • 7.15" (181.61mm) x 3.57" (90.68mm) x 2.96" (75mm)
    • 7.15" (181.61mm) x 3.57" (90.68mm) x x 2.96" (75mm)
  • Weight: 1.04 lb (0.47 kg)

Included Features

  • Included Features:
    • LCD Display
    • Linered Platen
    • Shoulder Strap

Agency Approvals

  • Agency Approvals:
    • FCC Class B
    • CE Class B
    • CSA
    • CB
    • NOM
    • C-Tick

Environmental Conditions

  • Temperature:
    • 5°F (-15°C) to 122°F (50°C) Operating
    • -13°F (-25°C) to 158°F (70°C) Storage
  • Humidity:
    • 10 to 80% Operating Non-condensing
    • 10 to 90% Storage Non-condensing

Other

  • Package Contents:
    • QL 220 Mobile Label Printer
    • Lithium Ion Battery

Media Characteristics

  • Maximum Label Roll Diameter: 2.2"
  • Label Core Size: 1.38"

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Extended Details
