Zebra Q4B-LUCAV000-Z0 Portable Barcode Printer Zebra Q4B-LUCAV000-Z0 Portable Barcode Printer

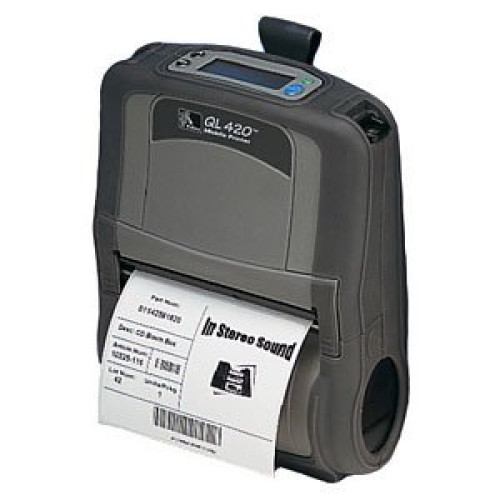

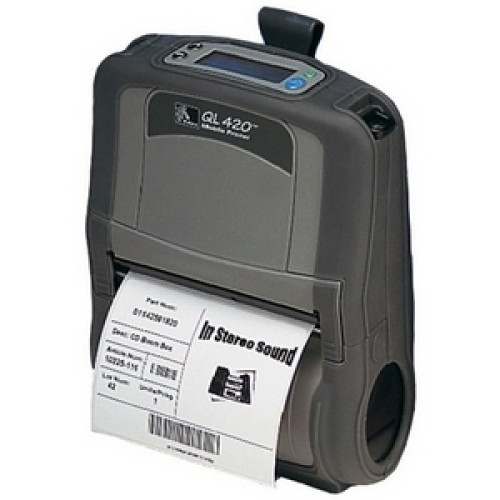

Zebra Q4B-LUCAV000-Z0 Portable Barcode Printer
Part #: Q4B-LUCAV000-Z0 | SKU: ZEB16962

The QL 420 direct thermal mobile printer has been designed with the most advanced technology in rubber-infused over-molding to maintain both rugged construction and minimal weight. With center-loading media, smart battery monitoring, and an optional LCD, it provides user-friendly options to keep your business moving. Ideal for many applications, including pick tickets, forklift-mounted printing, customer pick-up, shipment labeling, inventory updates, meter reading receipts, delivery verification invoices, and gas and utility inspection documentation. The QL 420's QuickLink modules, in IrDA, Bluetooth, or 802.11b, offer the flexibility to adjust to a wide range of connectivity needs. As needs change, so can QuickLink modules. In addition, the QL 420 is cable-ready and offers cables to connect to a wider variety of terminals than any other mobile printer.

Zebra Q4B-LUCAV000-Z0 Portable Barcode Printer

Part Details: QL 420 Mobile Direct Thermal Printer (LCD, 2MB RAM, 2MB Flash, Linered Platen, 802.11 Cisco, Var., Beltclip and ZPL)
Need a different version of the Zebra QL 420 Portable Barcode Printer? View all 1 configurations

Additional Information

Interface Options Wi-Fi
Manufacturer Zebra
Max Roll Outer Diameter 2.6
Model Name QL 420
Print Resolution 203 dpi
Printer Type Mobile
Printing Technology Direct Thermal
Zebra QL 420 Specs Zebra QL 420 Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 3 in/s
  • Maximum Print Resolution: 203 dpi
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features:
    • LCD Display
    • Belt Clip
  • Barcode Symbology Supported:
    • Codabar
    • Code 128
    • Code 93
    • Code 39
    • EAN-13
    • EAN-8
    • Interleaved 2 of 5
    • MSI
    • Plessey
    • POSTNET
    • UCC/EAN 128
    • UPC-A
    • UPC-E
    • EAN-18
    • FIM
    • Maxi Code
    • PDF-417

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: QL
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: QL 420
  • Product Name: QL 420 Mobile Thermal Label Printer

Physical Characteristics

  • Height: 7.5"
  • Width: 6"
  • Depth: 3"
  • Form Factor: Portable

Other

  • Platform Supported: PC
  • Package Contents:
    • QL 420 Mobile Label Printer
    • Lithium ion battery
    • QL 420 Mobile Label Printer
    • Lithium ion battery
  • Certifications & Standards:
    • FCC Class B
    • CE Class B
    • CSA
    • CB
    • NOM
    • C-Tick
  • Additional Information:
    • Media Handling: Direct Thermal/ Linered Platen
    • Reflective & Transmissive sensor
    • Ancillary Items: VAR (adds UMAN/accessories cd)
    • QuickLink module: 802.11b (Cisco 352 PCMCIA) North America
    • Character Set: US/Canadian English/Latin 1 & 5 (Including Turkish)

Media Types & Handling

  • Maximum Label Width: 4.12"
  • Maximum Label Length: 20"
  • Media Type:
    • Roll Fed
    • Die-cut Label
    • Linerless
    • Receipt
    • Fanfold
  • Media Thickness: 6.50 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 8"
  • Maximum Roll Diameter: 2.60"

Memory

  • Standard Memory: 2 MB
  • Flash Memory: 2 MB

Battery Information

  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Display & Graphics

  • Display Screen Type: LCD

Network & Communication

  • Wireless LAN: Yes

Warranty

  • Limited Warranty: 1 Year

Fonts & Emulation

  • Language Emulation: ZPL
Extended Details
