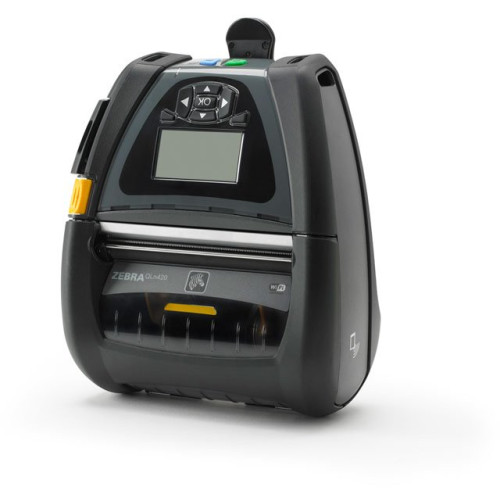

Zebra QLn420 Portable Barcode Printer Part # QN4-AUCB0M00-00

Zebra"s popular QL family of direct thermal mobile label printers has built a highly satisfied following based upon its proven drop resistant durability, user-friendly, productivity-boosting features, and easy integration.

QN4-AUCB0M00-00 - Zebra QLn420 Portable Bar code Printer

Part Details: Portable direct thermal barcode printer, 203 dpi, maximum print width 4.09", Interface Options: Bluetooth/Mfi, Ethernet, Linerless Platen, 1.375" Core, English, USB, Smart Battery and Belt Clip included.
New
MSRP: $1,212.00 Price: $933.24
In Stock

Additional Information

Brand Zebra
Manufacturer Zebra
Model Name QLn420
Printer Mobility Mobile
Product Condition New

STANDARD FEATURES

  • Direct thermal printing technology
  • 203 dpi resolution (8 dots/mm)
  • Print speed: up to 4 ips (102 mm/s)

More Standard Features
  • Apple® iOS, Android, Windows Mobile and BlackBerry® connectivity
  • CPCL, EPL™ and ZPL® programming languages
  • 256 MB Flash supports downloadable programs, receipt formats, fonts and graphics (64 MB available for user storage)
  • 5.0 AH removable, rechargeable Li-Ion battery
  • Built-in battery charger
  • Belt clip for unobtrusive and convenient printing (not compatible with extended capacity battery)
  • Black mark and gap media sensing using fixed center position sensors
  • Easy-to-use peel and present mode
  • Label present sensor for issuing labels one at a time
  • Tear bar for easy media dispensing
  • Center-loading media locking for variable roll widths
  • “Clamshell” design for easy media loading
  • Management: Mirror, SNMP, Web server, Profile Manager, AirWatch® and Wavelink Avalanche®
  • Large, easy-to-read LCD control panel (240 x 128 pixels)
  • LCD can be customized using WML (text and icons)
  • 5-way navigation buttons, two software defined keys
  • Printer alerts on the display, help menus
  • Tolerance of multiple drops from 6’/1829 mm to concrete
  • IP43 dust- and water-resistance rating (IP54 with soft case)
  • 400 MHz 32-bit ARM processor
  • XML support
  • Supports vertical and horizontal printing
  • Printers can be used in any orientation
  • QR barcode links to web-based help pages
  • Zebra Print Touch simplifies Bluetooth pairing and launches web-based help pages with Near Field Communication (NFC) enabled devices
  • Label odometer
  • Real-time clock

Printer Specifications

Resolution: 203 dpi (8 dots/mm)

Memory

  • 128 MB RAM
  • 256 MB Flash

Max print width: 4.1" (104 mm)
Max print length: 32" (813 mm)
Print speed: up to 4 ips (102 mm/s)


Media Characteristics
  • Maximum label and liner width: 4.4" (112 mm)
  • Minimum label and liner width: 2.0" (51 mm)
  • Maximum label and liner length: 32" (813 mm)
  • Maximum roll diameter: 2.6" (66 mm)
  • Core diameter: .75" (19 mm) or 1.375" (34.9 mm)
  • Media thickness: 3.2 mil to 7.5 mil
  • Media types: Die-cut labels and tags, linerless labels, receipt paper, black bar and gap sensing

Programming Lanuages
  • CPCL, EPL™ and ZPL®

Operating Characteristics
  • Operating temperature: -4° F (-20° C) to 122° F (50° C)
  • Storage temperatures: -13° F (-25° C) to 158° F (65° C)
  • Operating humidity: 10% to 90% non-condensing
  • Storage humidity: 10% to 90% non-condensing
  • Electrical DC charging input: 12 VDC ± 10% at 2A maximum
  • 5.0 AH removable, rechargeable Li-ion battery

Agency approvals
  • FCC Part 15, Subpart B
  • EN55022 Class-B
  • EN60950
  • EN55024
  • VCCI class B
  • EN55024
  • EN61000-4-2
  • EN61000-4-3
  • EN61000-4-4
  • EN61000-4-5
  • CE
  • UL
  • TUV
  • CSA

Physical Characteristics

Height: 7.35" (187 mm)
Width: 6.5" (165 mm)
Depth: 3.25" (82.5 mm)
Weight: 2.45 lbs (1.1 kg) with battery


Communication and Interface Capabilities
  • 802.11 a/b/n with BT 3.0
  • Bluetooth 3.0
  • 10/100 Ethernet support (via docking cradle)
  • USB 2.0 Full Speed Interface (12 Mbps) with mini-B connector
  • Serial interface: 14-pin RS-232C

barcodes/Symbologies

Linear Code 39
Code 93
UCC/EAN-128
Code 128
Codabar
Interleaved 2-of-5
UPC-A
UPC-E
EAN-8
EAN-13
EAN-8 and EAN-13 with 2 or 5 digit extensions
UPC-A and UPC-E with 2 or 5 digit extensions
2-dimensional PDF417
MicroPDF417
MaxiCode
QR Code
RSS / GS1 DataBar family (12 barcodes)
Aztec
Data Matrix
TLC 39
