90464 90464 90464 Zebra

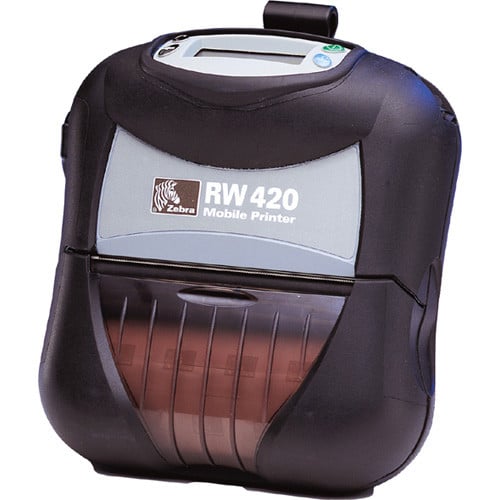

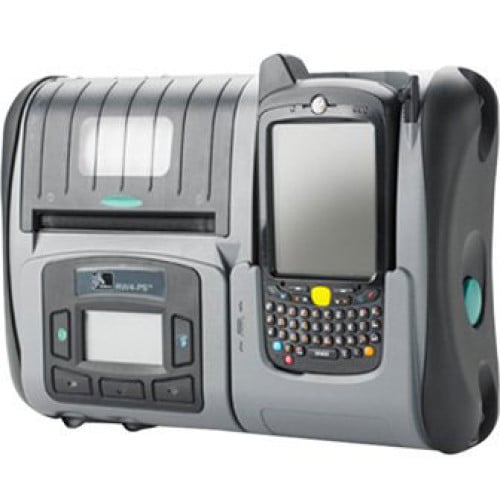

Zebra RW 420 Print Station Portable Bar code Printer Part # R4P-7UBA0000-00

The RW 420 Print Station allows mobile workers to visit more customers and serve them in less time, with fewer devices to carry and fewer trips to the vehicle. The RW 420 Print Station is ideal for printing Receipt/invoices, settlement reports, load manifests, work orders, service estimates and electronic citations.

R4P-7UBA0000-00 - Zebra RW 420 Print Station Portable Bar code Printer

Part Details: RW 420 Print Station, Print Station (with DEX and Bluetooth) for the RW 420
New
InStock

Additional Information

Brand Zebra
Manufacturer Zebra
Model Name RW 420 Print Station
Printer Mobility Mobile
Product Condition New

Technical Information

  • Maximum Mono Print Speed: 3 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.10"
  • Recommended Use: Receipt Print
  • Features:
    • Vertical Printing
    • Horizontal Printing
    • Tear Bar
  • Barcode Symbology Supported:
    • Codabar
    • Code 128
    • Code 39
    • Code 93
    • EAN-13
    • EAN-8
    • FIM
    • Interleaved 2 of 5
    • MSI
    • Plessey
    • POSTNET
    • UCC/EAN 128
    • Data Matrix
    • Maxi Code
    • PDF-417
    • QR Code
    • RSS
    • GS1 DataBar
    • UPC-A
    • UPC-E
    • EAN-14
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: RW
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: RW 420
  • Product Name: RW 420 Print Station Receipt Printer

Physical Characteristics

  • Height: 7.6"
  • Width: 11.1"
  • Depth: 2.8"
  • Form Factor: Portable

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.37"
  • Media Type:
    • Receipt
    • Continuous Receipt
    • Gap
    • Tag
  • Media Thickness: 6.30 mil
  • Media Sensor:
    • Media Door Open Sensor
    • Out Of Paper Sensor
  • Label Core Size: 1.38"
  • Maximum Roll Diameter: 2.25"

Fonts & Emulation

  • Language Emulation:
    • CPCL
    • EPL
    • XML
    • ZPL

Memory

  • Standard Memory: 16 MB
  • Memory Technology: DRAM
  • Flash Memory: 8 MB

Battery Information

  • Battery Rechargeable: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Network & Communication

  • Bluetooth: Yes

Display & Graphics

  • Display Screen Type: LCD

Other

  • Platform Supported: PC
