Zebra ZD50043-T01200FZ Barcode Label Printer Zebra ZD50043-T01200FZ Barcode Label Printer

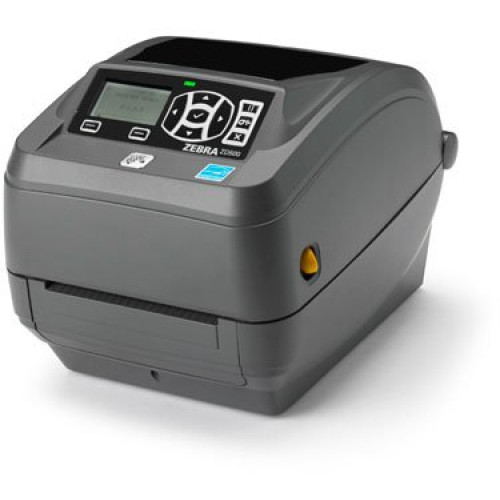

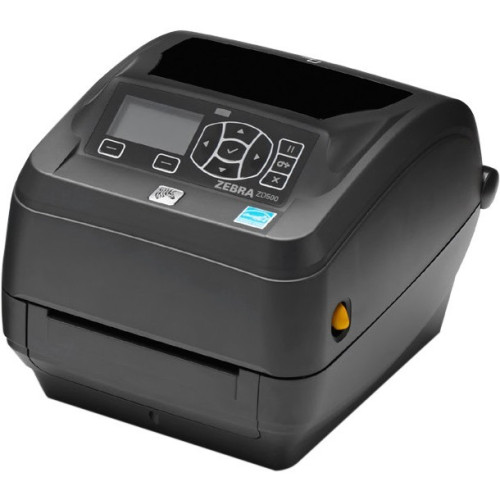

Zebra ZD50043-T01200FZ Barcode Label Printer
Part #: ZD50043-T01200FZ | SKU: ZEB310128

Bringing Link-OS environment capabilities to the Desktop, the ZD500 supports powerful applications for intuitive use and management. Delivering top-quality performance in the most demanding applications, it boasts a standard set of advanced features and supports both direct thermal and thermal transfer printing.

Zebra ZD50043-T01200FZ Barcode Label Printer

Part Details: Desktop Printer - Zebra ZD500 - Thermal Transfer - 300 dpi - 4ips - USB/USB Host/Bluetooth/Serial/Ethernet - 4-inch - Standard Tear - LCD User Interface
Need a different version of the Zebra ZD500 Barcode Label Printer? View all 12 configurations

Additional Information

Interface Options Bluetooth, Ethernet, Parallel, Serial (RS-232), USB, USB Host
Labels Per Day 1 - 2,500
Manufacturer Zebra
Max Roll Outer Diameter 5
Model Name ZD500
Print Resolution 150 dpi, 300 dpi
Print Speed 4 ips
Printer Type Desktop
Printing Technology Thermal Transfer
Ribbon Core Size 0.5 inch
Zebra ZD500 Specs Zebra ZD500 Specs (pdf)
Printer Features
  • Tool-less printhead and platen replacement
  • OpenACCESS for easy media loading
  • Quick and easy ribbon loading
  • Simplified calibration of media
  • Quad connectivity: USB, Parallel, Serial, and Ethernet
  • Real-time clock
  • LCD User Interface
  • Zebra E3 Printhead Energy Control
  • ENERGY STAR qualified
  • Link-OS enabled
  • Print Touch app
  • Unicode compliant for multi-language printing
  • 16 resident expandable ZPL II bitmap fonts
  • Two resident scalable ZPL fonts
  • Auto-switching 100-240V power supply
  • Head-up sensor
  • Standard tear-off mode feature
  • 3\" media core adaptor
  • Zebra printer drivers for Windows™
Printer Specifications

Resolution:

  • 203 dpi (8 dots/mm)
  • 300 dpi (12 dots/mm) optional

 Memory:

  • 128 MB Std SDRAM memory (4 MB available to user)
  • 256 MB Std Flash memory (56 MB available to user)


Print length:

  • 39\" (990 mm) maximum


Programmable print speeds of 2, 3, 4, 5, and 6 ips (51, 76, 102, 127, and 152 mm/s)

Media sensors:

  •  Full width reflective and multiposition transmissive sensors
Media Characteristics

Maximum label and liner length: 39\"/990 mm (maximum non-continuous)

Maximum label and liner width: 0.75\"/19 mm to 4.25\"/108 mm

Label Length:

  • Minimum using tear off mode: .25\" (6.3 mm)
  • Minimum with label present sensor used - 0.50\" (12.7 mm)
  • Minimum with cutter - 1.0\" (25.4 mm)

Maximum media roll size: 5\"/127 mm O.D.

Media thickness: 0.003\"/0.08 mm to 0.012\" (0.305 mm)

Media types: Roll-fed or fan-fed, die-cut or continuous direct thermal labels with or without black line, tag stock, continuous receipt paper, wristbands

Ribbon Characteristics

Outside diameter: 1.36\"/35 mm
Standard length: 244'/74M
Ratio:  1:1 media to roll to ribbon
Width:  1.33\"/33.8 mm to 4.3\"/109.2 mm
Core inner diameter: 0.5\"/12.7 mm

Environmental

Storage Temperatures: -40 degrees F/-40 degrees C to 140 degrees F/60 degrees C

Physical Characteristics

Width:  7.6\"/193 mm
Height: 7.5\"/191 mm
Depth: 10.0\"/254 mm
Weight: 4.9 lbs/2.2 kg

Barcodes/Symbologies
  • Barcode Ratios: 2:1 (non-rotated) and 3:1
  • Linear Bar Codes: Code 11, Code 39, Code 93, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, EAN-14, UPC-A and UPC-E with EAN 2 or 5 digit extensions, Plessey, POSTNET, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI, Codabar, and GS1 DataBar (formerly RSS)
  • 2-Dimensional: PDF417, MicroPDF-417, Code 49, Maxicode, Codablock, Data Matrix, QR code, Aztec
Options and Accessories
  • 300 dpi print resolution printing for fine detail and crisp images
  • Wireless—802.11 a/b/g/n and Bluetooth 3.0
  • Dispenser—label peel and present with present sensor
  • Cutter for various media types
  • RFID encoding available
  • ZKDU and KDU Plus keyboard display for stand-alone printing solutions
Extended Details
