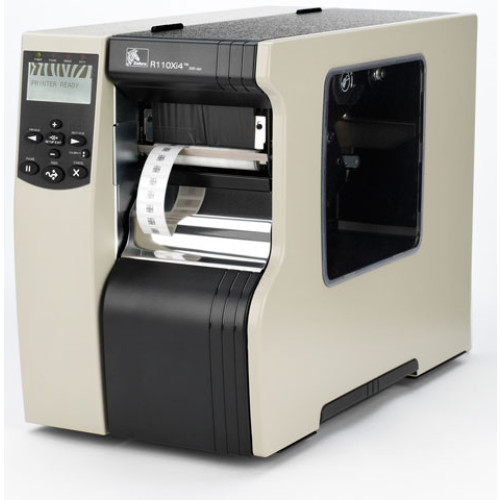

Zebra R110Xi4 RFID Printer

Zebra R110Xi4 RFID Printer

The Zebra R110Xi4 high-performance RFID printer/encoder delivers superior flexibility and unique features for a number of benefits. The R110Xi4 can fulfill a wide range of applications, from small, high-resolution (600-dpi) healthcare specimen smart labeling and item-level tagging to RFID pallet/carton labeling with print widths up to 4"/103 mm. Auto-configuration, which enables encoding of a variety of different RFID tags, simplifies setup. And by encoding RFID inlays that are spaced closer together (.6"/16 mm) than other-brand printer/encoders, the R110Xi4 enables lower cost per label, fewer media-roll changes, and faster throughput. Even use media converted for other printers/encoders thanks to Zebra's ability to detect variable inlay placement. If you don't need printed labels, the direct-to-inlay encoding capability means even more media savings.
Starting at: MSRP: $4,615.00 Price: $4,575.96
See all options

STANDARD FEATURES

  • RFID counters keep track of the good and bad labels
  • RFID processes optimized for fastest label throughput
  • RFID ZPL Commands allow ease of RFID set-up with maximum flexibility

More Standard Features
  • Variable RFID power settings for both read and write allows maximum flexibility for printing small labels
  • New full-function front panel and large multilingual back-lit LCD display — with user-programmable password protection
  • Clear media side door — easy monitoring without opening the printer
  • Thin film printhead — with E3® Element Energy Control
  • 8 MB Flash memory — including 2.0 MB user-available non-volatile memory storage for downloadable objects
  • RS-232 Serial, Parallel, USB 2.0, and internal ZebraNet 10/100 PrintServer
  • Dual media sensors — transmissive and reflective, selectable through software or front panel
  • Real Time Clock
  • Advanced Label/Media counters

Printer Specifications

Resolution: 203 dpi (8 dots/mm)
300 dpi (12 dots/mm)
600 dpi (23.5 dots/mm)
Memory: 16MB RAM
8MB Flash (2 MB available to user)
Print width: 4" (102 mm) maximum
Print length: 150" (3810 mm) maximum
Print speed: Up to 14" (356mm) per second
Media sensors: Reflective, Transmissive


Media Characteristics

Maximum label and liner width: .79" (20 mm) to 4.5" (114 mm)
Maximum label and liner length: 150" (3810 mm)
Media types: continuous, die-cut, black mark, notch


Ribbon Characteristics

Outside diameter: 3.2" (81.3 mm)
Standard length: 1476' (450 m) or 984' (300 m)
Ratio: 2:1 and 3:1 media roll to ribbon ratios
Ribbon: setup Ribbon wound coated side out
ID Core: 1" (25.4 mm)


Operating Characteristics

Operating temperature TT: Operating temperature: 40° F (5° C) to 105° F (40° C)
Thermal transfer DT: Operating temperature: 32° F (0° C) to 105° F (40° C)
Direct thermal Storage temperatures: -40° F (-40° C) to 140° F (60° C)
Operating humidity: 20 to 85% non-condensing R.H.
Electrical

  • 90-264VAC
  • 48 – 62Hz
  • FCC-B, C-Tick

Agency approvals

  • IEC 60950-1
  • EN 55022 Class B
  • EN 55024
  • EN 61000-3-2
  • EN 61000-3-3

Physical Characteristics

Width: 10.31" (261.9 mm)
Height: 15.5" (393.7 mm)
Depth: 20.38" (517.5 mm)
Weight: 50 lbs (22.7 kg)


Related Products

Options

  • ZebraDesigner Pro
  • ZebraDesigner
  • ZebraDesigner for my XML
  • Zebranet Bridge Enterprise
  • ZebraNet utilities v7.0
  • Clear media side bi-fold door - allows shorter media door opening radius
  • Full-width rotary knife cutter and catch tray - operates under software control cutting labels individually or in strips
  • Media rewind spindle - rewinds finished roll internally onto 3 in (76 mm) core or enables label peel and liner rewind
  • Applicator interface - provides status and control signals for applicators and remote control devices
  • media supply spindle for 3 in (76 mm) core or 40 mm core
  • Flash Memory - factory installed 64 MB (61 MB user avilable)
  • Additional Fonts
  • ZebraNet b/g Print Server

Communication and Interface Capabilities

  • ZebraNet 10/100 Print Server — supports 10Base-T, 100Base-TX, and fast Ethernet 10/100 auto-switching networks
  • USB 2.0 — 12 Mbits/second
  • High-speed bi-directional parallel interface — IEEE 1284-1994 compatibility, ECP, nibble mode
  • High-speed serial interfaces: RS-232C with DB9F connector, optional converter for DB25F available; Optional RS-422/485 with multidrop capability to network multiple printers from a single host with external adapter; Software (XON/XOFF) or hardware (DTR/DSR) communication handshake protocols
  • SEH PS102-Z Internal IPv6 Print Server
  • Applicator interface — with DB15F connector
  • ZebraNet b/g Print Server

Programming Languages

Core programming languages: XML, ZPL, ZPL II


barcodes/Symbologies

Linear Code 11
Code 39
Code 93
Code 128 with subsets A/B/C and UCC case codes
ISBT-128
UPC-A
UPC-E
EAN-8
EAN-13
UPC and EAN 2 or 5 digit extensions
Plessey
Postnet
Standard 2-of-5
Industrial 2-of-5
Interleaved 2-of-5
Logmars
MSI
Codabar
Planet Code
2-dimensional Codablock
PDF417
Code 49
Data Matrix
MaxiCode
QR Code
TLC 39
MicroPDF
RSS / GS1 DataBar family (12 barcodes)
Aztec
Fonts and Graphics

  • Bitmap fonts A through H and GS symbols are expandable up to 10 times, height and width independent
  • Smooth scalable font Ø (CG Triumvirate™ Bold Condensed) is expandable dot-by-dot, height and width independent
  • IBM Code Page 850 International Characters
Extended Details
Refine Your Options
  1. R13-8K1-00100-R0 - Zebra RFID Printer

    AIT, PRINTER, TT, R110XI4, 300 DPI, US CORD, SERIAL, PARALLEL, USB, INT 10/100, ZebraNet B/G PRINT SERVER, CUTTER WITH CATCH TRAY, RFID FOR US CANADA, PUERTO RICO
    $4,785.84
    In Stock - Ships Free
  2. R12-80E-00003-R1 - Zebra R110Xi4 RFID Printer

    R110Xi4, CONFIG FOR EMEA, UAE, SAUDI ARABIA, S AFRICA, VIETNAM, UK AND EURO POWER CORDS AND SWISS 721 Bluetooth FONT, 203 dpi, RS-232 SERIAL, PARALLEL, USB 2.0 AND INTERNAL ZebraNet 10/100 PRINT SERVER
    $4,615.00
    Check Availability
  3. R13-806-00000-R2 - Zebra RFID Printer

    RFID, 300 DPI, RS-232 SERIAL, PARALLEL, USB 2.0, INTERNAL ZebraNet PRINTSERVER, AUSTRALIAN EDITION 240V AC CORD, 16MB SDRAM, ZPL II & XML, CLEAR MEDIA SIDE DOOR & MEDIA HANGER, CONFIG FOR AUSTRALIA & NEW ZEALAND
    $4,695.00
    Check Availability
  4. R16-8K1-00001-R0 - Zebra R110Xi4 RFID Printer

    R110Xi4, 600 DPI, SERIAL, PARALLEL, USB, ZebraNet B/G PRINT SERVER (RADIO CARD INCLUDED), 16MB SDRAM, ZPL/XML, CLEAR MEDIA SIDE DOOR AND 3IN MEDIA SPINDLE, RFID CONFIGURED, 120 VAC CORD
    $5,682.96
    Check Availability
  5. R12-801-00100-R0 - Zebra R110Xi4 RFID Printer

    UHF RFID Printer - Thermal transfer - 203 dpi - USB/Serial/Parallel Connectivity - ZebraNet Internal Print Server - LCD - For Use in US/Canada/Puerto Rico - Cables Sold Separately
  6. R13-801-00000-R0 - Zebra R110Xi4 RFID Printer

    UHF RFID Printer - Thermal transfer - 300 dpi - USB/Serial/Parallel/Ethernet Connectivity - ZebraNet Internal Print Server - LCD - Cables Sold Separately
  7. R16-801-00001-R0 - Zebra R110Xi4 RFID Printer

    UHF RFID Printer - Thermal transfer - 600 dpi - USB/Serial/Parallel/Ethernet Connectivity - ZebraNet Internal Print Server - Clear Media Side Door - 3" Media Spindle - Cables Sold Separately
  8. R13-8K1-00000-R0 - Zebra R110Xi4 RFID Printer

    R110Xi4, 300 dpi, RFID XI4, Serial/Parallel/USB INT 10/100 US CORD
  9. R13-801-00100-R0 - Zebra R110Xi4 RFID Printer

    R110Xi4, RFID Printer-Encoder (300 dpi, Serial, Parallel, USB, Internal ZebraNet 10/100 PrintServer, 120 VAC Cord-NA, Cutter with Catch Tray, 16MB SDRAM, ZPL II, XML, Clear Media Side Door and Media Hanger)
  10. R16-801-00201-R0 - Zebra R110Xi4 RFID Printer

    UHF RFID Printer - Thermal Transfer - 600 dpi - USB/Serial/Parallel/Ethernet Connectivity - ZebraNet Internal Print Server - Clear Media Side Door - 3" Media Spindle - Includes Rewinder - Includes Peeler - Cables Sold Separately

Items 1 to 10 of 50 total

Page:
  1. 1
  2. 2
  3. 3
  4. 4
  5. 5

Recommended Accessories

  • Zebra 105SL Accessories (47362)

    Preventative Maintenance Kit (6 Presaturated Foam Swabs) for the 105SL
    Price: $19.77
    Ships within 3 to 5 business days
  • Zebra Encore Accessories (37996)

    CABLE (15 FEET, USB, M-A TO M-B) FOR THE XI, 105SL AND Z SERIES PRINTERS. THIS IS A ZEBRA PRINTER REPAIR PART.
    MSRP: $27.00 Price: $25.52
    This item is temporarily not in stock but it is available for ordering
  • Zebra Basic Interpreter 2.0 (48767-001)

    ZBI 2.0, Enablement Kit for 5 Printers
    MSRP: $495.00 Price: $433.13
    Ships within 3 to 5 business days
  • Zebra Basic Interpreter 2.0 (48768-001)

    ZBI 2.0, Enablement Kit for 25 Printers
    MSRP: $2,475.00 Price: $2,165.63
    Ships within 3 to 5 business days
  • Zebra Basic Interpreter 2.0 (48766-001)

    ZBI 2.0, Enablement Kit for 1 Printer
    MSRP: $99.00 Price: $71.78
    Ships within 3 to 5 business days

Recommended Labels

  • Zebra RFID Labels (10015350-r)

    2.874" x 0.669" Belt RFID Paper Label, Permanent Adhesive, Thermal Transfer, Paper, Perforated-No, Labels Per Roll-5000, Rolls Per Carton/1. For use with Tabletop/Industrial - RFID Printers.
    MSRP: $903.50 Price: $848.71
    Ships within 3 to 5 business days
