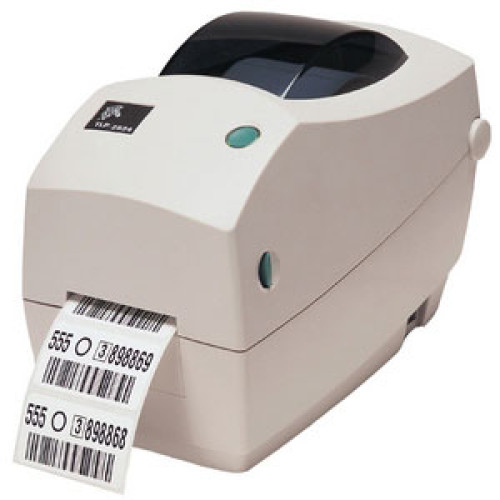

Zebra TLP 2824 Thermal Barcode Label Printer

Zebra TLP 2824 Plus A newer version of this item is available.
It is replaced by the Zebra TLP 2824 Plus.

The smallest footprint of any thermal printer

With one of the smallest footprints of any two-inch desktop printer in the industry the LP and TLP 2824 fit into places other printers cannot without sacrificing speed print quality or media capacity. This space conservation is great for the typically congested areas around cash registers desks and countertops.For easy integration with existing systems and a variety of applications the LP-TLP 2824 printers also offer the widest range of interface choices including serial parallel USB internal or external Ethernet with the ZebraNet PrintServer II option and an optional cash drawer kicker interface (LP only). Their sturdy dual-wall high-density plastic construction ensure they will survive punishment that would damage other printers in their class. A full five-inch media roll is easily loaded into the LP-TLP 2824 printers thanks to the OpenACCESS design and media usage can be monitored through the clear top cover.
  • Construction: High-impact, double-walled plastic enclosure
  • Print speed: 4 inches (102 mm) per second
  • Print width: 2.2 inch (56 mm)
  • Resolution: 203 dpi (8 dots/mm)
  • ZebraLink-enabled: No
TLP 2824 Options
Zebra TLP 2824 (2824-11400-0001)
TLP 2824, Thermal transfer Desktop Printer (203 dpi, 2.2 in. Print width, 4 ips Print speed, Serial Interface, 128K SRAM, 512KB Flash, Internal PrintServer II and 100-240V Power supply)
Specs: 4 ips - Thermal transfer (TT) - 2.2" Maximum Print width - 203 dpi - 1 x Ethernet, 1 x Serial - Internal ZebraNet PrintServer II
Zebra TLP 2824 (2824-11201-0001)
TLP 2824, Thermal transfer Desktop Printer (203 dpi, 2.2 inch Print width, 4 ips Print speed, Parallel Interface, 128K SRAM, 512KB Flash, EPL2 and Dispenser)
Specs: 4 ips - Thermal transfer (TT) - 2.2" Maximum Print width - 203 dpi - 1 x Parallel - Dispenser
Zebra TLP 2824 (2824-11200-0001)
TLP 2824, Thermal transfer Desktop Printer (203 dpi, 2.2 in. Print width, 4 ips Print speed, Parallel Interface, 128K SRAM, 512KB Flash and No Real-time clock)
Specs: 4 ips - Thermal transfer (TT), Direct thermal (DT) - 2.2" Maximum Print width - 203 dpi - 1 x Parallel
Zebra TLP 2824 (2824-11102-0001)
TLP 2824, Thermal transfer Desktop Printer (203 dpi, 2.2 inch Print width, 4 ips Print speed, Serial and USB Interfaces, 100-240V AC Power supply, Cutter, 128K SRAM, 512KB Flash and No Real-time clock)
Specs: 4 ips - Thermal transfer (TT) - 2.2" Maximum Print width - 203 dpi - 1 x Serial, 1 x USB - Cutter
Zebra TLP 2824 (2824-11101-0001)
TLP 2824, Thermal transfer Desktop Printer (203 dpi, 2.2 inch Print width, 4 ips Print speed, Serial Interface, 128K SRAM, 512KB Flash and Dispenser)
Specs: 4 ips - Thermal transfer (TT) - 2.2" Maximum Print width - 203 dpi - 1 x Serial, 1 x USB - Dispenser
Zebra TLP 2824 (2824-11100-0021)
TLP 2824, Thermal transfer Desktop Printer (203 dpi, 2.2 inch Print width, 4 ips Print speed, Serial and USB Interfaces, 128K SRAM, 512KB Flash and Real-time clock)
Zebra TLP 2824 (2824-11100-0011)
TLP 2824, Thermal transfer Desktop Printer (203 dpi, 2.2 inch Print width, 4 ips Print speed, Serial and USB Interfaces, 256KB RAM, 1MB Flash, 100-240 VAC, EPL2 and No Real-time clock)
Zebra TLP 2824 (2824-11100-0001)
TLP 2824, Thermal transfer Desktop Printer (203 dpi, 2.2 in. Print width, 4 ips Print speed, Serial and USB Interfaces, 128K SRAM, 512KB Flash and No Real-time clock)
Specs: 4 ips - Thermal transfer (TT), Direct thermal (DT) - 2.2" Maximum Print width - 203 dpi - 1 x Serial, 1 x USB
Recommended Accessories
Zebra (105850-006)
Cable Kit (6 inch, USB Interface, A to B)
In Stock: Ships Today
$16.60
+ Add to Quote
BCI (2901-6MF9)
6' Serial cable (25 pin male to 9 pin female)
In Stock: Ships Today
$11.90
+ Add to Quote
Cables To Go Cables (13172)
Cables, 6 ft. USB cable (USB 2.0, A to B). Replaces (Part# USB-5000-02M).
In Stock: Ships Today
$12.30
+ Add to Quote
Cables To Go Cables (13400)
Cables, 10 ft. USB cable (USB 2.0, A to B). Replaces (Part# USB-5000-03M).
In Stock: Ships Today
$12.70
+ Add to Quote
Zebra (2901-9MF9ST)
Serial Printer Cable - 6 feet - Straight - DB-9 to DB-9 - Compatible with Zebra
In Stock: Ships Today
$11.40
+ Add to Quote
Recommended Labels
Zebra Z-Ultimate 3000T White (18940-R)
Z-Ultimate 3000T White, 2" x 1.25" Thermal transfer Polyester Labels, 2070 labels/roll, Core Size/Inner Diameter: 1", Adhesive: Permanent, Color: White, Price for 1 Roll
In Stock: Ships Today
$70.50
+ Add to Quote
Zebra Z-Ultimate 3000T White (18940)
Z-Ultimate 3000T White, 2" x 1.25" Thermal Transer Polyester Labels, 2070 labels/roll, Core Size/Inner Diameter: 1", Adhesive: Permanent, Color: White, Price for 8 Rolls
In Stock: Ships Today
$512.30
+ Add to Quote
Zebra Z-Select 4000D (10015341-R)
Z-Select 4000D, - 2.25" x 1.25" - Direct Thermal Paper Labels - 2100 Labels Per Roll - Core Size/Inner Diameter: 1" - Adhesive: Permanent - Color: White - Price for 1 Roll
In Stock: Ships Today
$16.80
+ Add to Quote
Zebra Z-Select 4000D (10015341)
Z-Select 4000D, 2.25" x 1.25" Direct thermal paper Labels, 2100 labels/roll, Core Size/Inner Diameter: 1", Adhesive: Permanent, Color: White, Price for 12 Rolls
In Stock: Ships Today
$183.10
+ Add to Quote
Zebra Z-Select 4000D (10010039-R)
Z-Select 4000D, 2" x 1" Direct Thermal Paper Labels, 2340 Labels Per Roll, Core Size/Inner Diameter: 1", Adhesive: All-Temp|Permanent, Color: White, Price for 1 Roll
In Stock: Ships Today
$22.50
+ Add to Quote
Recommended Ribbons
Zebra 5319 Wax (800132-001-R)
5319 Wax, Wax Ribbon, Black, 1.3" x 244', rolls/case: 1, Core Size: 0.5", For Use With (Labels): Paper labels, For Use With (Printer): Desktop, single roll. Available as a case (800132-001)
Ships in 3-5 Days
$2.40
+ Add to Quote
Zebra 5319 Performance Wax (800132-001)
5319 Performance Wax, Wax Ribbon, Black, 1.3" x 244', rolls/case: 12, Core Size: 0.5", For Use With (Labels): Paper labels, For Use With (Printer): Desktop, Available as a single roll (800132-001-R)
In Stock: Ships Today
$27.50
+ Add to Quote
Zebra 3200 Performance Wax-Resin (800132-101)
3200 Performance Wax-Resin, Wax-Resin Ribbon, Black, 1.3" x 244', rolls/case: 12, Core Size: 0.5", For Use With (Labels): Polypropylene Labels, For Use With (Printer): Desktop, Available as a single roll (800132-101-R)
In Stock: Ships Today
$31.50
+ Add to Quote
Zebra 5095 Performance Resin (800132-201)
5095 Performance Resin, Resin Ribbon, Black, 1.3" x 244', rolls/case: 12, Core Size: 0.5", For Use With (Labels): Polyester Labels, For Use With (Printer): Desktop, Available as a single roll (800132-201-R)
In Stock: Ships Today
$48.90
+ Add to Quote
Zebra 5095 Performance Resin (800132-201-R)
5095 Performance Resin, Resin Ribbon, Black, 1.3" x 244', rolls/case: 1, Core Size: 0.5", For Use With (Labels): Polyester Labels, For Use With (Printer): Desktop, single roll. Available as a case (800132-201)
Ships in 3-5 Days
$4.20
+ Add to Quote
Recommended Printheads
Zebra 2824 Series (G105910-148)
2824 Series, Printhead Kit For Printer Model 2824 Series, Print Resolution 203 dpi
In Stock: Ships Today
$89.30
+ Add to Quote

Zebra TLP 2824 Details

Standard Features

  • Print methods: Direct thermal or direct thermal/thermal transfer
  • Construction: ABS double-walled casing
  • OpenACCESS design
  • 32 bit RISC processor
  • Resident scalable font
  • Head-up sensor

Printer Specifications

Resolution
203 dpi (8 dots/mm)
Memory
  • Standard: 8 MB SDRAM (4 MB available to user); 4 MB Flash (2.75 available to user)
  • Optional: 8 MB Flash with real time clock (12 MB total)
Print width
2.2" (56 mm)
Print length
39" (991 mm)
Print speed
4" (102 mm)/sec
Media sensors
Reflective
Transmissive

Media Characteristics

Maximum label and liner width
2.36" (59.9 mm)
Minimum label and liner width
1.00" (25.4mm)
Maximum label and liner length
39" (991 mm)
Maximum label and liner length (optional)
N/A no SDRAM optional memory
Maximum roll diameter
5" (127 mm)
Core diameter
1.0" (25.4 mm) and 1.5" (38 mm)
Media thickness
0.003" (.075 mm) to 0.007" (0.18 mm)
Media types
fanfold, roll-fed, continuous, die-cut, tag stock, continuous receipt, linerless, black bar, black mark, gap, notch, optional linerless platen, receipt

Ribbon Characteristics

Outside diameter
1.36" (35 mm)
Standard length
244' (74 m)
Ratio
1:1
Ribbon width
  • Recommended to be at least as wide as media
  • 1.33" (33.8 mm) to 2.24" (58 mm)
ID Core
0.5" (12.7 mm)

Operating Characteristics

Operating temperature
TT: Operating temperature 40° F (5° C) to 105° F (41° C) Thermal transfer
DT: Operating temperature 40° F (5° C) to 105° F (41° C) Direct thermal
Storage temperatures
-40° F (-40° C) to 140° F (60° C)
Operating humidity
10-90% non-condensing
Storage humidity
5-95% non-condensing
Electrical
Auto-detectable (PFC compliant) 100-240 VAC, 50-60 Hz
Agency approvals
  • FCC
  • VCCI/PSE
  • C-TICK
  • UL
  • NOM
  • CE
  • CCC/SRRC
  • IEC
  • IRAM
  • AAMI

Physical Characteristics

Width
5.5" (140 mm)
Height
7.0" (178 mm)
Depth
9.5" (241 mm)
Weight
3.5 lbs (1.6 kg)
Shipping weight
6.1 lbs (2.8 kg)
Orientation
Center

Related Products

Options
  • Cutter
  • Asian language support
  • Internal ZebraNet PrintServer II for Ethernet connectivity
  • Dispenser with label taken sensor
  • 8 MB Flash memory with real time clock
Communication and Interface Capabilities
  • Serial RS-232 (DB9)
  • Parallel (Centronics)
  • USB
  • Optional Internal or External ZebraNet PrintServer II

Programming Languages

Core programming languages
ZPL, ZPL II

Barcodes/Symbologies

Linear
Code 11
Code 39
Code 93
Code 128
EAN-13
EAN-8
UPC-A
UPC-E
Plessey
Postnet
Industrial 2-of-5
Interleaved 2-of-5
Logmars
MSI
Codabar
RSS-14 (limited, truncated, stacked)
UPC-A and UPC-E with EAN 2 or 5 digit extensions
2-dimensional
PDF417
MicroPDF417
Code 49
MaxiCode
Codablock
Data Matrix
QR Code
RSS
Fonts and Graphics
  • Standard Fonts: 16 bitmapped, 1 smooth scalable (CG Triumvirate Bold Condensed)
  • Supports user-defined fonts and graphics - including custom logos
  • IBM Code Page 850 International Characters
