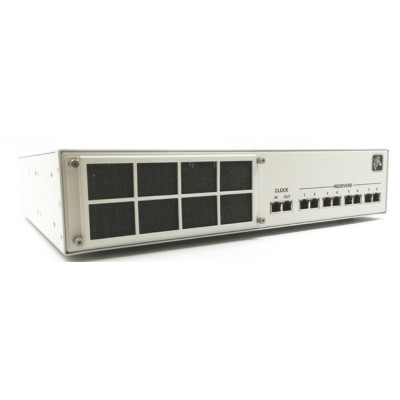

Zebra UWB Hub Data Networking

Highlights of Zebra UWB Hub & Sensor:• Virtual planning application with downloadable site configuration to the hub• Outstanding performance in challenging multi-path conditions• Adherence to the International UWB Standard, IEEE 802.15.4.f• Precise real-time location tracking — Accuracy within 30 cm (1 foot) line of sight• Extended RTLS Range — Reaches up to 200 meters (650 feet)• Superior RTLS tag processing — Handles up to 3500 1 Hz tags per hub• Rapid and straightforward setup — Usually completed in a single day• Sensor “proximity” functionality via Hub — Enables adjustable presence detection capabilities• External antenna solution designed to withstand weather conditions• Optional fully packaged ATEX Zone1, IIB + H2, T5 sensor

The embedded software in the hub facilitates system configuration and displays real-time tag locations through a browser-based GUI interface driven by a Java™ environment. The hub delivers power, data, and clock to the Zebra UWB sensors over a single shielded Ethernet cable, allowing for simple and rapid sensor installations. The Hub software provides the ability to operate Zebra UWB Sensors in “proximity” mode. A standard RTLS Sensor can be transformed into a proximity reader with a fully adjustable UWB read range. The Zebra UWB system includes System Builder, an advanced virtual planning tool that helps in installing and optimizing the Zebra UWB system. System Builder is used to establish the site and sensor coordinates, simulate the coverage of the Zebra UWB sensors, and define reference and virtual groups to fine-tune installation performance. It produces a site file that is downloaded to the hub, which configures all RTLS settings.

Zebra UWB sensors are distributed around the area beginning from the hub and are often chained from one sensor to another. The Zebra UWB lineup features three primary sensors, each with a built-in antenna (High-gain, Mid-gain, and Omni). The Zebra UWB system provides leading-edge range and design versatility while delivering top-tier UWB location precision at a minimal investment. The lineup also includes a bulkhead sensor that attaches to an external antenna suitable for outdoor and hazardous environments. This setup allows the sensor to be housed in a weatherproof or intrinsically safe enclosure with the antenna situated outside the enclosure, delivering optimal range and performance akin to the standard integrated sensor options. For hazardous environments, Zebra offers a sensor that is pre-assembled within an enclosure certified for use in potentially explosive areas as specified by the ATEX Directive.

Part NumberUWH-1100-A-00AA PerformanceData ThroughputUp to 3,500 1 Hz tags/second per hubTag CapacityUp to 10,000 tags per hubEnvironmental/PhysicalOperating Temperature0° C to 40° C (32° F to 104° F)Length35.6 cm (14.0 in)Width22.9 cm (9.0 in)Height8.9 cm (3.5 in)Weight1.64 kg (58 oz)Power100 – 240 VDC 50/60 Hz 2.5 A (Provides power for up to 64 sensors)Wired Communications InterfaceNetworkEthernet/CAT 5eSensorHigh speed serial, RJ-45, shielded CAT 5e cabling or unshielded with use of Zebra ferrite kitRegulatory ApprovalsNorth AmericaFCC part 15 subpart B, ICES-003, UL60950-1, CAN/CSA-22.2 No. 60950-1-07European UnionEN55024, EN55022, IEC 60950-1rtsr

Part Numbers
High-Gain: UWC-1100-A-00AB
Mid-Gain: UWC-1200-A-00AB
Omni: UWC-1300-A-00AB
Bulkhead: UWC-1400-A-00AB
Bulkhead w/ATEX Enclosure: UWC-1410-A-0AAA

Data ThroughputUp to 3,500 1 Hz tags/second per hubTag CapacityUp to 10,000 tags per hubEnvironmental/PhysicalOperating Temperature0° C to 40° C (32° F to 104° F)Length35.6 cm (14.0 in)Width22.9 cm (9.0 in)Height8.9 cm (3.5 in)Weight1.64 kg (58 oz)Power100 – 240 VDC 50/60 Hz 2.5 A (Supports up to 64 total sensors)Wired Communications InterfaceNetworkEthernet/CAT 5eSensorHigh speed serial, RJ-45, shielded CAT 5e cabling or unshielded with use of Zebra ferrite kitRegulatory ApprovalsNorth AmericaFCC part 15 subpart B, ICES-003, UL60950-1, CAN/CSA-22.2 No. 60950-1-07European UnionEN55024, EN55022, IEC 60950-1rtsr

High-Gain: UA-110-0A
Mid-Gain: UA-120-0A
Omni: UA-130-0AFrequency Range6.35 to 6.75 GHzAntenna GainHigh-Gain: 12.3 dBiMid-Gain: 9.4 dBiOmni: 5.0 dBiEnvironmental/PhysicalOperating Temperature-40° C to 70° C (-40° F to 158° F)Environmental RatingHigh-Gain: IP40Mid-Gain: IP40Omni: IP40Bulkhead (IP66 w/ optional enclosure): IP30Bulkhead w/ ATEX Enclosure: IP66Length WidthHigh-Gain: 15.5 cm (6.1 in), 6.4 cm (2.5 in)Mid-Gain: 15.5 cm (6.1 in), 6.4 cm (2.5 in)Omni: 25.4 cm (10.0 in), 6.4 cm (2.5 in)Bulkhead: 16.0 cm (6.3 in), 6.4 cm (2.5 in)Bulkhead w/ ATEX Enclosure: 34.0 cm (13.4 in), 31.8 cm (12.5 in) Height WeightHigh-Gain: 7.1 cm (2.8 in), 0.45 kg (1.0 lb)Mid-Gain: 7.1 cm (2.8 in), 0.45 kg (1.0 lb)Omni: 7.1 cm (2.8 in), 0.54 kg (1.2 lb)Bulkhead: 7.1 cm (2.8 in), 0.45 kg (1.0 lb)Bulkhead w/ ATEX Enclosure: 15.7 cm (6.2 in), 17.2 kg (38.0 lb)
