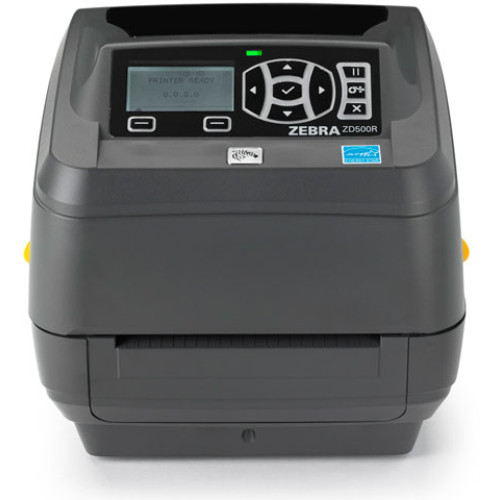

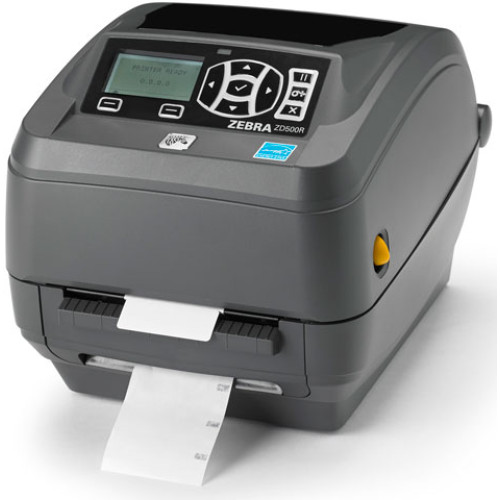

ZD500R

ZD500R

UHF RFID printing is even easier and at a lower cost of entry than ever with the ZDR500R. Perfect for applications where space is at a premium, the ZD500R offers a small footprint. The ZD500R supports next generation inlays and offers 802.11a/b/g/n wireless and Bluetooth connectivity to fit the needs of any UHF printing application.
Starting at: MSRP: $2,033.00 Price: $1,399.56
See all options
  • RFID: Supports tags compatible with UHF EPC Gen 2 V1.2/ ISO 18000-6C
  • Print methods: Thermal transfer or Direct thermal
  • Prints and encodes tags with a minimum pitch of 0.6"/16 mm (without cutter option)
  • Adaptive Encoding Technology simplifies RFID setup and eliminates complex RFID placement guidelines
  • RFID job monitoring tools track RFID performance
  • RFID ZPL commands provide compatibility with existing Zebra RFID printers
  • Support for industry standard multi-vendor chip-based serialization (MCS)
  • Supports block permalocking of user memory compatible with ATA Spec 2000
  • Integrated ThingMagic RFID Reader/Encoder
  • Quick and easy ribbon loading
  • Simplified calibration of media
  • Quad connectivity: USB, Parallel, Serial, and Ethernet
  • Real-time clock
  • LCD User Interface
  • ENERGY STAR qualified
  • Auto-switching 100-240V power supply
  • 3" media core adapter
  • Zebra printer drivers for Windows

STANDARD FEATURES

  • RFID : Supports tags compatible with UHF EPC Gen 2 V1.2/ ISO 18000-6C
  • Print methods: Thermal Transfer or Direct Thermal
  • Programming Language: ZPL
  • Construction: Dual-wall frame

RFID Features
  • Prints and encodes tags with a minimum pitch of 0.6"/16 mm (without cutter option)
  • Adaptive Encoding Technology simplifies RFID setup and eliminates complex RFID placement guidelines
  • RFID job monitoring tools track RFID performance
  • RFID ZPL® commands provide compatibility with existing Zebra RFID printers
  • Support for industry standard multi-vendor chip-based serialization (MCS)
  • Supports block permalocking of user memory compatible with ATA Spec 2000
  • Integrated ThingMagic® RFID Reader/Encoder

Printer Features
  • Tool-less printhead and platen replacement
  •  OpenACCESS™ for easy media loading
  • Quick and easy ribbon loading
  • Simplified calibration of media
  • Quad connectivity: USB, Parallel, Serial, and Ethernet
  • Real-time clock
  • LCD User Interface
  • Zebra E3 Printhead Energy Contro
  • ENERGY STAR® qualified
  • Link-OS™enabled
  • Print Touch™ app
  • Unicode compliant for multi-language printing
  • 16 resident expandable ZPL II® bitmap fonts
  • Two resident scalable ZPL fonts
  • Auto-switching 100-240V power supply
  • Head-up sensor
  • Standard tear-off mode feature
  • 3" media core adaptor
  • Zebra printer drivers for Windows™

Printer Specifications

Resolution:

  • 203 dpi (8 dots/mm)
  • 300 dpi (12 dots/mm) optional

 Memory:

  • 128 MB Std SDRAM memory (4 MB available to user)
  • 256 MB Std Flash memory (56 MB available to user)


Print length:

  • 39" (990 mm) maximum


Programmable print speeds of 2, 3, 4, 5, & 6 ips (51, 76, 102, 127, & 152 mm/s)

Media sensors:

  •  Full width reflective and multiposition transmissive sensors

Media Characteristics

Maximum label and liner length: 39"/990 mm (maximum non-continuous)

Maximum label and liner width: 0.75"/19 mm to 4.25"/108 mm

Label Length:

  • Minimum using tear off mode: .25" (6.3 mm)
  • Minimum with label present sensor used - 0.50" (12.7 mm)
  • Minimum with cutter - 1.0" (25.4 mm)

Maximum media roll size: 5"/127 mm O.D.

Media thickness: 0.003"/0.08 mm to 0.012" (0.305 mm)

Media types: Roll-fed or fan-fed, die-cut or continuous direct thermal labels with or without black line, tag stock, continuous receipt paper, wristbands


Ribbon Characteristics

Outside diameter: 1.36"/35 mm
Standard length: 244'/74 mm
Ratio: 1:1 media to roll to ribbon
Width: 1.33"/33.8 mm to 4.3"/109.2 mm
Core inner diameter: 0.5"/12.7 mm


Environmental

Storage Temperatures: -40° F/-40° C to 140° F/60° C


Physical Characteristics

Width: 7.6"/193 mm
Height: 7.5"/191 mm
Depth: 10.0"/254 mm
Weight: 4.9 lbs/2.2 kg


Barcodes/Symbologies
  • Barcode Ratios: 2:1 (non-rotated) and 3:1
  • Linear barcodes: Code 11, Code 39, Code 93, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, EAN-14, UPC-A and UPC-E with EAN 2 or 5 digit extensions, Plessey, POSTNET, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI, Codabar, and GS1 DataBar (formerly RSS)
  • 2-Dimensional: PDF417, MicroPDF-417, Code 49, Maxicode, Codablock, Data Matrix, QR code, Aztec

Options and Accessories

300 dpi print resolution printing for fine detail and crisp images
Wireless—802.11 a/b/g/n and Bluetooth 3.0
Dispenser—label peel and present with present sensor
Cutter for various media types
ZKDU and KDU Plus™ keyboard display units for stand-alone printing solutions

Extended Details
Refine Your Options
  1. Zebra ZD500R (ZD50042-T012R1FZ)

    UHF RFID Printer - Thermal Transfer - 203 dpi - USB/Serial/Parallel/Ethernet Connectivity - ZebraNet Internal Print Server - LCD - US/Canada - Cables Sold Separately
    In Stock
  2. Zebra ZD500R (ZD50042-T112R1FZ)

    UHF RFID Printer - Thermal Transfer - 300 dpi - USB/Serial/Centronics Parallel/Ethernet Connectivity - ZebraNet Internal Print Server - Bluetooth - LCD - US/Canada - Includes Peeler - Includes US Power Cord - Cables Sold Separately
    In Stock
  3. Zebra ZD500R (ZD50042-T013R1FZ)

    UHF RFID Printer - Thermal Transfer - 203 dpi - USB/Serial/Centronics Parallel/Ethernet Connectivity - ZebraNet Internal Wireless - 802.11a/b/g/n - Bluetooth - LCD - US/Canada - Cables Sold Separately
    In Stock
  4. Zebra ZD500R (ZD50043-T212R1FZ)

    Zebra ZD500R Direct Thermal/Thermal Transfer Printer - Monochrome - Desktop - RFID Label Print - Ethernet - USB - Serial - RFID - 4.09" Print Width - 4 in/s Mono - 300 dpi - Label, Roll Fed, Fanfold, Die-cut Label, Continuous Label, Direct Thermal Label, Tag Stock, Continuous Receipt, Wristband, Receipt, RFID Label - 4.25" Label Width - 39" Label Length
    In Stock
  5. Zebra ZD500R (ZD50043-T013R1FZ)

    UHF RFID Printer - Thermal Transfer - 300 dpi - USB/Serial/Centronics Parallel/Ethernet Connectivity - ZebraNet Internal Wireless - 802.11a/b/g/n - Bluetooth - LCD - US/Canada - Cables Sold Separately
    In Stock
  6. Zebra ZD500R (ZD50043-T012R1FZ)

    UHF RFID Printer - Thermal Transfer - 300 dpi - USB/Serial/Parallel/Ethernet Connectivity - ZebraNet Internal Print Server - LCD - US/Canada - Cables Sold Separately
  7. Zebra ZD500R (ZD50043-T112R1FZ)

    ZD500R 300 DPI UHF RFID LCD USB Ethernet Parallel Serial
  8. Zebra ZD500R (ZD50042-T212R1FZ)

    UHF RFID Printer - Thermal Transfer - 300 dpi - USB/Serial/Centronics Parallel/Ethernet Connectivity - ZebraNet Internal Print Server - Bluetooth - LCD - US/Canada - Includes Cutter - Includes US Power Cord - Cables Sold Separately
  9. Zebra ZD500R (ZD50042-T113R1FZ)

    ZD500R TT 203d USB Ser CP Enet 802.11abgn BT Peel RFID-UHF
  10. Zebra ZD500R (ZD50043-T113R1FZ)

    Zebra ZD500R Thermal Transfer Printer - Monochrome - Desktop - RFID Label Print - Ethernet - USB - Serial - RFID - 4.09" Print Width - 4.02 in/s Mono - 300 dpi - Wireless LAN - RFID Label, Roll Fed, Fanfold, Die-cut Label, Direct Thermal Label, Tag Stock, Continuous Receipt, Wristband - 4.25" Label Width - 39" Label Length

Items 1 to 10 of 12 total

Page:
  1. 1
  2. 2

Recommended Accessories

Recommended Labels

  • RFID Labels (SL-4-2-A9740-ZD5)

    4" x 2" Smart Thermal transfer RFID Label. Permanenet Adheive, UHf Alien 9740 Inlay. Compatible with the Zebra ZD500R. 1,000 label box. Item is custom made, please contact us for volume discounts.
    Price: $909.06
    Most products ship within 3 to 5 business days
  • RFID Labels (SL-4-6-A9740-ZD5)

    UHF RFID Label - 4" x 6" - Smart Thermal transfer - Permanenet Adhesive - Alien 9740 Inlay - Compatible with the Zebra ZD500R - 1,000 RFID Labels Per Box - Custom Made Item - Contact Us for Quantity Discounts
    Price: $949.97
    Most products ship within 3 to 5 business days
  • ZD500R (10036024)

    CONSUMABLES, RFID, 3IN X 1IN Z-PERFORM 1500T, PAPER LABEL, BT0573 INLAY, UCODE 8, NO PERF, FOR ZD500R/RXI4/ZT400R/ZT600R, 1000 LPR, 2 RPC, PRICED PER CASE
    Price: $283.11
  • ZD500R (10036110)

    RFID Jewelry Labels, 3" x 0.55" (76mm x 14mm), TT Z-Ultimate 2000T White Polyester, Permanent adhesive (No adhesive on loop part), RFID EOS-200 U8 Wet Inlay, 3" core, 1500 labels per roll, 2 rolls per case. Priced per case. For use with ZD500R Desktop RFID Printer only.
    $425.18

Recommended Warranties

  • ZD500R (Z1AE-ZD50-3C0)

    Zebra OneCare Essential with Comprehensive - 3 Year Extended Service - Service - 9 x 5 x 3 Business Day - Carry-in - Maintenance - Parts & Labor - Physical, Electronic
  • ZD500R (Z1BF-ZD50-1C0)

    Zebra OneCare Essential with Comprehensive - 1 Year Extended Service - Service - Carry-in - Maintenance - Parts & Labor - Physical, Electronic Service
  • ZD500R (Z1AS-ZD50-5C0)

    Zebra OneCare Select with Comprehensive - 5 Year Extended Service - Service - 24 x 7 Same Day - Service Depot - Exchange - Physical, Electronic
  • ZD500R (Z1BE-ZD50-1C0)

    Zebra OneCare Essential with Comprehensive - 1 Year Extended Service - Service - 9 x 5 x 3 Business Day - Carry-in - Maintenance - Parts & Labor - Physical, Electronic
  • ZD500R (Z1AF-ZD50-5C0)

    Zebra OneCare Essential with Comprehensive - 5 Year Extended Service - Service - Carry-in - Maintenance - Parts & Labor - Physical, Electronic Service
