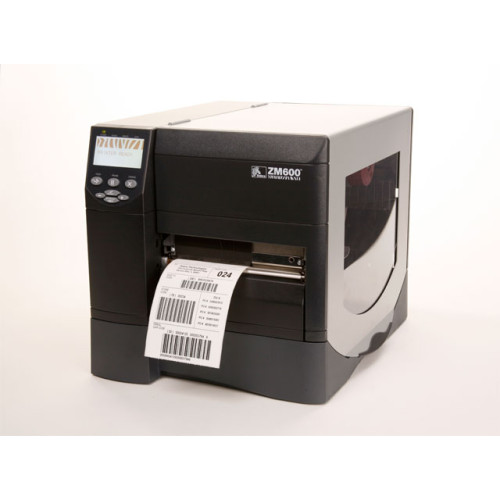

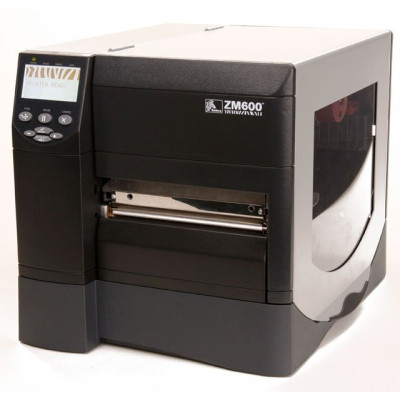

Zebra ZM600 Thermal Barcode Label Printer

Zebra ZT420 A newer version of this item is available.
It is replaced by the Zebra ZT420.

Many networking connectivity choices including USB, wireless, 802.11 b/g, Ethernet, serial, and parallel

Zebra's best-in-class Z Series printers just got better! The ZM600 includes additional productivity-enhancing features and modern, flexible network connectivity for easy system integration in most manufacturing, warehousing and business applications. This industrial/commercial workhorse also delivers efficient 6-inch-wide labeling thanks to its quick throughput and 10 inches-per-second print speed.
  • Print methods: Thermal transfer or direct thermal
  • 203, 200, or 600 dpi resolution options
  • Construction: Die-cast aluminum base, frame, and printhead mechanism
  • Metal media cover with large clear window
  • Element Energy Equalizer (E3) for superior print quality
  • Auto-calibration
  • Real-time clock
  • Auto-ranging (90""265 VAC) power supply
  • Color-coded operator cues
  • Multi-language control panel with back-lit 240 x 128 pixel display
  • Optional cutter, peeler, and rewinder
ZM600 Options
Zebra ZM600 (ZM600-3001-5100T)
ZM600, Thermal transfer printing, 300 dpi, ZPL, Standard flash, US power cord, Peel with Full Roll Rewind, RS-232 Serial, Parallel, USB and Ethernet and Spindle Out
Specs: Monochrome - 8 in/s Mono - 300 dpi - Serial, Parallel, USB - Fast Ethernet
Zebra ZM600 (ZM600-3001-1100T)
ZM600, Thermal transfer printing, 300 dpi, ZPL, Standard flash, US power cord, Cutter, RS-232 Serial, Parallel, USB and Ethernet and Spindle Out
Specs: Monochrome - 8 in/s Mono - 300 dpi - Serial, Parallel, USB - Fast Ethernet
Zebra ZM600 (ZM600-3001-0100T)
ZM600, Industrial thermal transfer barcode printer, 300 dpi, maximum print width 6", ZPL, Standard flash, Interface Options: Serial, parallel, USB and Ethernet, North American Power cord.
Specs: 8 in/s Mono - 300 dpi - Serial, Parallel, USB - Fast Ethernet
Zebra ZM600 (ZM600-3001-0000T)
ZM600, Thermal transfer printing, 300 dpi, 6" print width, ZPL, Standard flash, RS-232 serial, Parallel, USB interface, US Power cord and Spindle Out
Specs: Monochrome - 8 in/s Mono - 300 dpi - USB, Serial, Parallel
Zebra ZM600 (ZM6GA-2001-0100T)
ZM600, Thermal transfer printing, 203 dpi, 6" print width, ZPL, Standard flash, RS-232 Serial, parallel, USB and Ethernet interface, US Power cord and Spindle Out. This is the TAA compliant version of this product for government purchasers. Please Call for more information.
Zebra ZM600 (ZM600-3501-0100T)
ZM600, Barcode printer (300 dpi, ZPL II, XML, ZBI 2.0, 16MB SDRAM, US power cord, RS-232 Serial, Parallel, USB and Ethernet and Spindle Out)
Zebra ZM600 (ZM600-3011-5300T)
ZM600, 300 dpi, ZPL II, XML, 64MB Flash, US power cord, Peel with Full Roll Rewind, Spindle Out, RS-232 serial, Parallel, USB, Ethernet and 802.11g Wireless interfaces, (Wireless card not included, must be purchased separately. Recommended: AIR-CB21AG-A-K9)
Specs: Monochrome - 8 in/s Mono - 300 dpi - Serial, Parallel, USB - Fast Ethernet, Wi-Fi
Zebra ZM600 (ZM600-3011-0300T)
ZM600, Thermal transfer printing, 300 dpi, 6" print width, ZPL, 64MB Flash, US Power cord, Spindle Out, RS-232 serial, Parallel, USB, Ethernet and 802.11g Wireless interfaces, (Wireless card not included, must be purchased separately. Recommended: AIR-CB21AG-A-K9)
Specs: Monochrome - 8 in/s Mono - 300 dpi - Serial, Parallel, USB - Fast Ethernet, Wi-Fi
Zebra ZM600 (ZM600-3011-0100T)
ZM600, Thermal transfer printing, 300 dpi, 6" print width, RS-232/Parallel/USB/Ethernet, Spindle Out, Expanded Memory, ZPL II, XML. Includes US power cord. Interface cables not included.
Specs: Monochrome - 8 in/s Mono - 300 dpi - Serial, Parallel, USB - Fast Ethernet
Zebra ZM600 (ZM600-300E-1000T)
ZM600, 300 dpi, ZPL II AND XML, 16MB SDRAM, EURO EDITION, CUTTER WITH CATCH TRAY, SERIAL, PARALLEL, USB 2.0, Thermal transfer, Standard RIBBON COATED OUT SPINDLE
Zebra ZM600 (ZM600-3001-5000T)
ZM600, Thermal transfer printing, 300 dpi, 6" print width, ZPL, Standard flash, RS-232 serial, Parallel, USB interface, US Power cord, Peel with Full Roll Rewind and Spindle Out
Specs: Monochrome - 8 in/s Mono - 300 dpi - USB, Serial, Parallel
Zebra ZM600 (ZM600-3001-3100T)
ZM600, Thermal transfer printing, 300 dpi, 6" print width, RS-232/Parallel/USB/Ethernet interfaces, Passive Peeler (no liner take-up), US power cord. Does not include necessary interface cables.
Specs: 4.09" Print width - Peel Facility - 10 in/s Mono - 300 dpi - USB - Serial - Parallel - Ethernet - LCD
Zebra ZM600 (ZM600-3001-1700T)
ZM600, Thermal transfer printing, 300 dpi, 6" print width, USB/RS-232/Parallel/Ethernet/Wi-Fi (Radio card included) interfaces, Cutter with Catch tray, ZPL II and XML print languages, US power cord. Does not include necessary interface cables.
Zebra ZM600 (ZM600-3001-1000T)
ZM600, Thermal transfer printing, 300 dpi, 6" print width, ZPL, Standard flash, RS-232 serial, Parallel, USB interface, US Power cord, Cutter and Spindle Out
Specs: Monochrome - 8 in/s Mono - 300 dpi - USB, Serial, Parallel
Zebra ZM600 (ZM600-3001-0700T)
ZM600, Thermal transfer printing, 300 dpi, 6" print width, RS-232/Parallel/USB/Ethernet/Wi-Fi (Radio card included) interfaces, ZPL II and XML. Interface cables not included.
Zebra ZM600 (ZM600-2401-0100T)
ZM600, Barcode printer (203 dpi, XML, Standard flash, US power cord, Internal ZebraNet 10/100 PrintServer and Spindle Out)
Zebra ZM600 (ZM600-2001-5100T)
ZM600, Thermal transfer printing, 203 dpi, 6" print width, ZPL, Standard flash, RS-232 Serial, parallel, USB and Ethernet interface, US Power cord, Peel with Full Roll Rewind and Spindle Out
Specs: Monochrome - 10 in/s Mono - 203 dpi - Serial, Parallel, USB - Fast Ethernet
Zebra ZM600 (ZM600-2001-5000T)
ZM600, Thermal transfer printing, 203 dpi, 6" print width, ZPL, Standard flash, RS-232 serial, Parallel, USB interface, US Power cord, Peel with Full Roll Rewind and Spindle Out
Specs: Monochrome - 10 in/s Mono - 203 dpi - USB, Serial, Parallel
Zebra ZM600 (ZM600-2001-3200T)
ZM600, Thermal transfer printing, 203 dpi, 6" print width, ZPL, Standard flash, RS-232 serial, Parallel, USB, 802.11g Wireless interface, (Wireless card not included, must be purchased separately. Recommended: AIR-CB21AG-A-K9), US Power cord, Peel and Spindle Out
Specs: Monochrome - 10 in/s Mono - 203 dpi - Serial, Parallel, USB - Wi-Fi
Zebra ZM600 (ZM600-2001-3000T)
ZM600, Thermal transfer printing, 203 dpi, 6" print width, ZPL, Standard flash, RS-232 serial, Parallel, USB interface, US Power cord, Peel and Spindle Out
Specs: Monochrome - 10 in/s Mono - 203 dpi - USB, Serial, Parallel
Zebra ZM600 (ZM600-2001-1000T)
ZM600, Thermal transfer printing, 203 dpi, 6" print width, ZPL, Standard flash, RS-232 serial, Parallel, USB interface, US Power cord, Cutter and Spindle Out
Specs: Monochrome - 10 in/s Mono - 203 dpi - USB, Serial, Parallel
Zebra ZM600 (ZM600-2001-0300T)
ZM600, Thermal transfer printing, 203 dpi, 6" print width, ZPL, Standard flash, US Power cord, Spindle Out, RS-232 serial, Parallel, USB, Ethernet and 802.11g Wireless interfaces, (Wireless card not included, must be purchased separately. Recommended: AIR-CB21AG-A-K9)
Specs: Monochrome - 10 in/s Mono - 203 dpi - Serial, Parallel, USB - Fast Ethernet, Wi-Fi
Zebra ZM600 (ZM600-2001-0200T)
ZM600, Thermal transfer printing, 203 dpi, 6" print width, ZPL, Standard flash, RS-232 serial, Parallel, USB, 802.11g Wireless interface, (Wireless card not included, must be purchased separately. Recommended: AIR-CB21AG-A-K9), US Power cord and Spindle Out
Specs: Zebra ZM600 Network Thermal Label Printer
Zebra ZM600 (ZM600-2001-0100T)
ZM600, Industrial thermal transfer barcode printer, 203 dpi, maximum print width 6", ZPL, Standard flash, Interface Options: Serial, parallel, USB and Ethernet, US Power cord and Ribbon Spindle Out included.
Specs: Monochrome - 10 in/s Mono - 203 dpi - Serial, Parallel, USB - Fast Ethernet
Zebra ZM600 (ZM600-2001-0000T)
ZM600, Thermal transfer printing, 203 dpi, 6" print width, ZPL, Standard flash, RS-232 serial, Parallel, USB interface, US Power cord and Spindle Out
Specs: 10 in/s Mono - 203 dpi - USB, Serial, Parallel

Barcode Discount Zebra ZM600 Review

Most print applications do not require a label printer with a width beyond 4” wide but in the cases where a larger label is needed the ZM600 provides industrial class quality and speed. Most often you’ll find these printers used in the freight and shipping industries for labeling palates or containers. With the wide set of features and interfaces though, the ZM600 does well in any application that needs a high volume printer. There is a cost jump though for the extra 2” but compared to a laser printer with sheet labels, the ZM600 has a higher level of print quality at a lower total cost of ownership. Many applications do not require such a wide print width but in the cases that do, the ZM600 is the printer to go with.

Recommended Accessories
BCI (2901-6MF9)
6' Serial cable (25 pin male to 9 pin female)
In Stock: Ships Today
$11.90
+ Add to Quote
Zebra (79808)
Conversion Kit (203 dpi/300 DPI) for the ZM600
In Stock: Ships Today
$681.60
+ Add to Quote
Zebra ZBI 2.0 (48766-001)
ZBI 2.0, Enablement Kit for 1 Printer
In Stock: Ships Today
$84.20
+ Add to Quote
Zebra (52184)
Cable (6 ft. Null Modem, DB-9 Male-DB9 Female)
In Stock: Ships Today
$15.10
+ Add to Quote
Zebra (G77767M)
Ribbon/Head-Open Sensor Kit, Z4M/Z4MPlus & Z6M/Z6MPlus
In Stock: Ships Today
$34.30
+ Add to Quote
Recommended Labels
Zebra Z-Perform 2000T (10000281-R)
Z-Perform 2000T, 4" x 6" Thermal transfer Paper labels, 1000 labels/roll, Core Size/Inner Diameter: 3", Adhesive: Permanent, Color: White, Price for 1 Roll
In Stock: Ships Today
$19.10
+ Add to Quote
Zebra Z-Perform 2000T (10000281)
Z-Perform 2000T, 4" x 6" Thermal transfer Paper labels, 1000 labels/roll, Core Size/Inner Diameter: 3", Adhesive: Permanent, Color: White, Price for 4 Rolls
In Stock: Ships Today
$65.70
+ Add to Quote
Zebra Z-Perform 1000D (10000301-R)
Z-Perform 1000D, 4" x 6" Direct Thermal Paper Labels, 1000 Labels Per Roll, Core Size/Inner Diameter: 3", Adhesive: Permanent, Color: White, Price for 1 Roll
In Stock: Ships Today
$19.60
+ Add to Quote
Zebra Z-Perform 1000D (10000301)
Z-Perform 1000D, 4" x 6" Direct thermal paper Labels, 1000 labels/roll, Core Size/Inner Diameter: 3", Adhesive: Permanent, Color: White, Price for 4 Rolls
In Stock: Ships Today
$73.40
+ Add to Quote
Zebra Z-Perform 2000D (10000290)
Z-Perform 2000D, 4" x 6" Direct thermal paper Labels, 1000 labels/roll, Core Size/Inner Diameter: 3", Adhesive: All-Temp|Permanent, Color: White, Price for 4 Rolls
In Stock: Ships Today
$103.60
+ Add to Quote
Recommended Ribbons
Zebra 5095 Performance Resin (05095BK11045-R)
5095 Performance Resin, Resin Ribbon - Black - 4.33" x 1476' - Rolls per Case: 1 - Core Size: 1" - For Use With(Labels): Polyester Labels - For Use With(Printer): Industrial - Priced per roll - Available as a case(05095BK11045)
In Stock: Ships Today
$84.50
+ Add to Quote
Zebra 5095 Performance Resin (05095BK11045)
5095 Performance Resin, Resin Ribbon - Black - 4.33" x 1476' - Rolls per Case: 6 - Core Size: 1" - For Use With(Labels): Polyester Labels - For Use With(Printer): Industrial - Priced per case - Available as a roll(05095BK11045-R)
In Stock: Ships Today
$461.30
+ Add to Quote
Zebra 3200 Wax-Resin (03200BK11045)
3200 Wax-Resin, Wax-Resin Ribbon - Black - 4.33" x 1476' - Rolls per Case: 6 - Core Size: 1" - For Use With(Labels): Polypropylene Labels - For Use With(Printer): Industrial - Available as a single roll (03200BK11045-R)
In Stock: Ships Today
$265.10
+ Add to Quote
Zebra 5095 Performance Resin (05095BK08345)
5095 Performance Resin, Resin Ribbon - Black - 3.27" x 1476' - Rolls per Case: 6 - Core Size: 1" - For Use With(Labels): Polyester Labels - For Use With(Printer): Industrial - Available as a single roll (05095BK08345-R)
In Stock: Ships Today
$348.30
+ Add to Quote
Zebra 5319 Performance Wax (05319BK11045)
5319 Performance Wax, Wax Ribbon - Black - 4.33" x 1476' - Rolls per Case: 6 - Core Size: 1" - For Use With(Labels): Paper Labels - For Use With(Printer): Industrial - Available as a single roll (05319BK11045-R)
In Stock: Ships Today
$188.50
+ Add to Quote
Recommended Printheads
Zebra ZM600 (79803M)
ZM600, Printhead Kit For Printer Model ZM600, Print Resolution 203 dpi
In Stock: Ships Today
$450.50
+ Add to Quote
Zebra Z6M (79804M)
Z6M, Printhead Kit - For Printer Model Z6M - Print Resolution 300 dpi
In Stock: Ships Today
$701.30
+ Add to Quote

Zebra ZM600 Details

Standard Features

  • Thermal transfer and direct thermal operating modes (can only use one mode at a time)
  • Die-cast aluminum base, frame, and printhead mechanism
  • Metal media cover with large clear window
  • 16 MB DRAM, 8MB Flash
  • 203dpi (8 dots/mm) printhead
  • RS-232C Serial Interface
  • High Speed, IEEE 1284, Bi-Directional Parallel Interface
  • USB 2.0
  • Transmissive and reflective media sensors
  • Multi-lingual backlit 240x128 pixel graphic display
  • Color-coded operator cues
  • RFID Ready
  • 7 bitmapped and 1 scalable font (CG Triumvarate Bold Condensed)
  • 32-bit processor
  • Auto-calibration
  • Auto detectable (90V - 265V) power supply
  • Element Energy Equalizer (E3) (for print head energy control)
  • Real Time Clock
  • Unicode - Compliant
  • Quick change printhead and platen
  • Charcoal gray form design (for improved smudge resistance)
  • ZPL or ZPLII (Zebra Programming Language)

Printer Specifications

Resolution
203 dpi (8 dots/mm)
300 dpi (12 dots/mm)
Memory
  • 16 MB DRAM
  • 8 MB Flash
  • 64 MB Factory-Installed On-Board Flash (optional)
Print width
6.6" (168 mm)
Print length
  • Length with 203 dpi: 102" (2,591 mm)
  • Length with 300 dpi (optional): 45" (1,143 mm)
Print speed
203 dpi

10" (254 mm)/sec

300 dpi

8" (203 mm)/sec
Media sensors
Reflective
Transmissive

Media Characteristics

Maximum label and liner width
  • 7" (178 mm) - tear & cutter
  • 6.75" (171 mm) - peel & rewind
Minimum label and liner width
2" (51 mm) - tear & cutter, peel & rewind
Maximum label and liner length
39" (991 mm)
Maximum roll diameter
8" (203 mm)
Core diameter
3" (76 mm)
Media thickness
.0023" (.058 mm) to .010" (0.25 mm)
Media types
black mark, continuous, die-cut, fanfold, notch, perforated, tag stock

Ribbon Characteristics

Outside diameter
3.2" (81.3 mm)
Standard length
1476' (450 m)
Ratio
3:1 media roll to ribbon ratio
Ribbon width
2" (51 mm) to 6.85" (174 mm)
Ribbon setup
Ribbon wound ink side out
ID Core
1.0" (25.4 mm)

Operating Characteristics

Operating temperature
TT: Operating temperature 40° F (5° C) to 104° F (40° C) Thermal transfer
DT: Operating temperature 32° F (0° C) to 104° F (40° C) Direct thermal
Storage temperatures
-40° F (-40° C) to 140° F (60° C)
Operating humidity
20-85% non-condensing
Storage humidity
5/85% non-condensing
Electrical
Universal auto-detectable (PFC-compliant) power supply 90-265 VAC
Agency approvals
  • IEC 60950-1 EN 55022 Class B
  • EN 55024
  • EN 61000-3-2
  • EN 61000-3-3

Physical Characteristics

Width
13.4" (341 mm)
Height
13.3" (338 mm)
Depth
18.7" (475 mm)
Weight
34.7 lbs (16 kg)
Shipping weight
54 lbs (24.5 kg)

Related Products

Options
  • 300 dpi (12 dots/mm) printhead
  • 64 MB Factory-Installed, On-Board Flash Memory (58 MB user available)
  • Cutter with catch tray
  • Value peel (front mount, passive peel option with no liner take-up)
  • Peel with liner take-up
  • Rewind, internally rewinds full label roll on three-inch core (comes with taller, non-standard printer base)
  • Ribbon supply spindle for ribbon ink coated inside
  • RFID Field Upgrade Kit
  • ZebraDesigner
  • ZebraDesigner Pro
  • ZebraDesigner for XML
  • ZebraNet Bridge Enterprise
  • Printhead conversion kits
  • ZebraCare Extended Warranty
  • European and Asian font sets
  • APL-I
  • APL-D
Communication and Interface Capabilities
  • RS-232C serial port
  • RS 232 to RS-422/485 serial port adaptor
  • RS232 DB9 to DB25 adaptor
  • High speed, IEEE 1284, bi-directional parallel interface
  • ZebraNet Wireless Plus (optional)
  • ZebraNet 10/100 Print Server (internal/external)
  • ZebraNet PrintServer II (external option)

Programming Languages

Core programming languages
XML, ZPL II, ZPL, EPL

Barcodes/Symbologies

Linear
Codabar
Code 11
Code 39
Code 93
EAN-13
EAN-8
Industrial 2-of-5
Interleaved 2-of-5
Logmars
MSI
Planet Code
Plessey
Postnet
RSS (reduced space symbology)
Standard 2-of-5
UPC and EAN 2 or 5 digit extensions
UPC-A
UPC-E
Code 128 with subsets A/B/C and UCC case codes
2-dimensional
Aztec
Codablock
Code 49
Data Matrix
MaxiCode
MicroPDF417
PDF417
QR Code
RSS
Fonts and Graphics
  • Standard fonts: 7 bitmapped, 1 smooth scalable (CG Triumvirate Bold Condensed)
  • Sets: IBM Code Page 850 International character set
  • Optional European and Asian font sets
  • Supports user-defined fonts and graphics, including custom logos
  • ZPL II drawing commands, including boxes and lines

All products Barcode Discount sells are new (not used). Most products ship via our low cost flat rate shipping the same day your order is placed and can ship overnight to anywhere in the US. Our prices are amongst the best available anywhere. Buy online or call 1-800-485-3730 for a free review of your product needs by one of our knowledgeable product experts.
