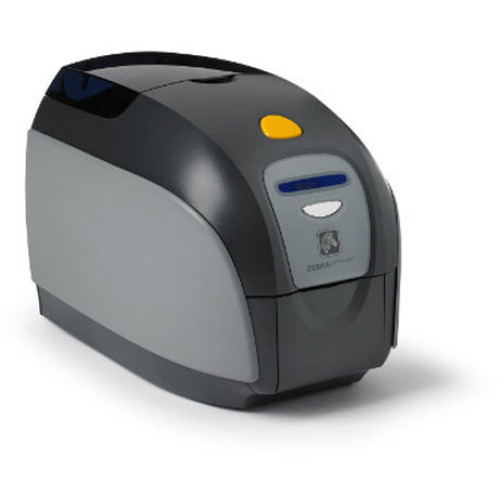

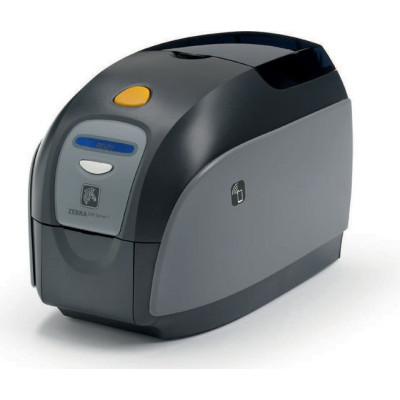

Zebra ZXP Series 1 ID Card Printer

Standard Features

• Eco-Friendly Load-N-Go™ drop-in ribbon ZXP Series 1 cartridges
• ZRaster™ host-based image processing
• Auto calibration of ribbon
• USB connectivity
• Microsoft Certified Windows drivers
• Print Touch NFC tag for online Printer documentation access
• 100 card covered feeder (30 mil)
• 45 card capacity output hopper (30 mil)

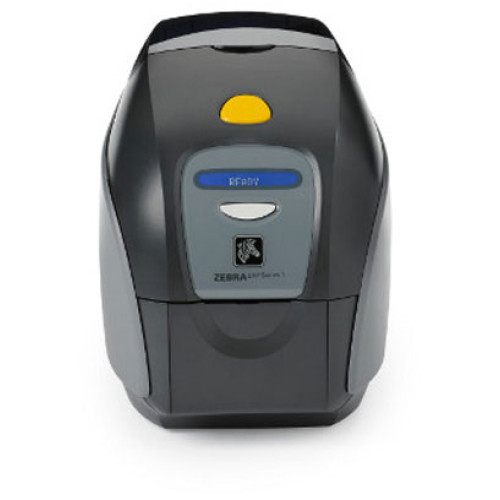

• 16-character LCD operator control display
• 300 dpi (11.8 dots/mm) print resolution
• Two-year warranty on printer
• Two-year (unlimited passes) original printhead
• One-year hot swap (U.S. only)

Printer Specifications

• Dye-sublimation thermal transfer direct to card
• Full color or monochrome printing
• Single-sided printing
• 545 cph monochrome single-sided
• 130 cph single-sided YMCKO
• Edge-to-edge printing on standard CR-80 media

Supplies Specifications

NOTE: The ZXP Series 1 printer is designed to work only with Zebra True Colours ix Series, ZXP Series 1 ribbons.

• Zebra ix Series intelligent technology automatically detects and authenticates ribbon.
• Integrated cleaning roller included on each ribbon.

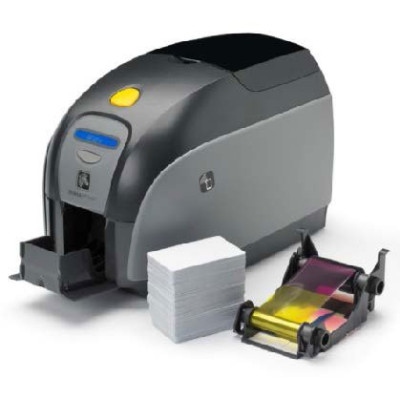

• Media Starter Kit – 1 YMCKO ribbon, 100 30-mil PVC cards
• Cleaning Kit: 4 print engine cleaning cards and 4 feeder cleaning cards, 1000 images/card

Operating Characteristics

Operating temperature: 60° F (15° C) to 86° F (30° C)
Storage temperatures: 23° F (-5° C) to 131° F (70° C)
Operating humidity: 20% to 65% non-condensing
Storage humidity: 20% to 70% non-condensing

Media Storage:

• Temperature: 41°F to 77°F (5C to 30C)
• Humidity: 35% to 65% non-condensing
• Do not store in direct sunlight

Electrical

• Auto-switching single-phase AC power
• Operating range: 90-132VAC and 190-264VAC RMS
• Frequency range : 47-63 Hz.
• FCC Class A

Physical Characteristics

Width: 7.9" (200 mm)
Height: 9.3" (236 mm)
Depth: 13.0" (330 mm)
Weight: 11.6 lbs (5.3 kg)

Optional Features

• Manual front card feeder bezel*
• ZebraCare™ extended product warranty programs

Communication Interfaces

• USB V2.0 (cable included) - standard
• Built-in 10/100 Ethernet - optional*

Encoding Options and Specifications

• Magnetic stripe encoder – ISO 7811 (new and re-encoded, tracks 1,2, and 3, high and low coercivity, stripe down, 30 mil card only

Card Compatibility

NOTE: For optimum print quality and printer performance, use of Zebra genuine supplies is recommended.

• Card Thickness: 10-40 mil
• Card Size: CR-80, ISO 7810 format, Type ID-1, 2.12" (54 mm) x 3.38" (86 mm)
• Card Material: PVC and PVC composite
• Spot Color or monochrome print only on < 20 mil card thickness
