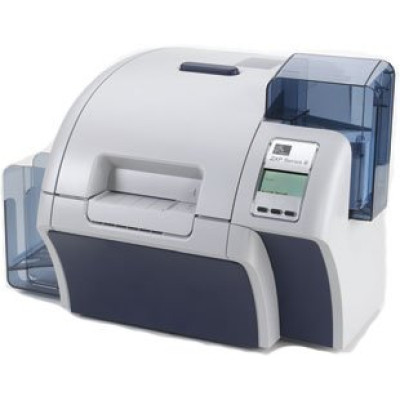

Zebra ZXP Series 8 ID Card Printer

Zebra ZXP Series 8 ID Card Printer

With best-in-class, productivity-boosting, full-throttle throughput, produce vivid color plastic cards on demand fast, thanks to Zebra's highly advanced ZXP Series 8 retransfer card printer and its patent-pending image transfer process. Yet even at unparalleled print speeds, the ZXP Series 8 printer achieves superior, photo-like image quality that boasts rich, consistent colors and strikingly sharp resolution. The ZXP Series 8 includes ZMotif software for easy integration with enterprise applications. A modular design gives you the flexibility to add a variety of encoding options as needed. And the printer's high reliability minimizes maintenance needs and total cost of ownership.
Discontinued - Need Assistance
See all options

BENEFITS

  • True edge-to-edge printing (via over-the-edge printing)
  • Superb image quality and print resolution
  • High durability and abrasion resistance
  • Fraud protection (tamper-evident retransfer film)

Standard Features
  • Dye sublimation retransfer
  • Single-card feed capability
  • 21-character, 6-line LCD operator display
  • USB and Ethernet connectivity
  • Two year limited printer, and lifetime printhead warranty
  • 304 dpi (12 dots/mm) print resolution
  • Uses True Colours i Series intelligent media

Printer Specifications

Single or Dual-sided Printing
Color Capability: Full Color or Monochrome
Print Method: Retransfer
Dual-sided (single pass)
Card Feeder: Single Card Feeder, Integrated Card Feeder
Card Feeder/Hopper Capacity

  • 150 card capacity card feeder (30 mil)
  • 100 card output hopper (30 mil)

Memory: 64 MB memory (standard)

Print speed

  • 190 cards/hr Single-sided print (YMC)
  • 180 cards/hr Dual-sided print (YMCK)

Media Characteristics

Ribbons

  • Zebra True Colours i Series ribbons with intelligent RFID technology to authenticate and automate ribbons
  • YMCK ribbon – 625 images/roll
  • YMCKK ribbon – 500 images/roll
  • YMCUvK – 500 images/roll
  • YMCKI – 500 images/roll
  • YMCKKI – 415 images/roll
  • YMC – 800 images/roll
  • Monochrome Black – 2500 images/roll

Transfer Film Zebra True Colours i Series transfer film: 1250 images/roll single-side, 625 images/roll dual-sided


Operating Characteristics

Operating temperature: 59° F (15° C) to 95° F (35° C)
Storage temperatures: 23° F (-5° C) to 131° F (55° C)
Operating humidity: 20% to 80% non-condensing
Storage humidity: 10% to 90% non-condensing
Electrical: 100-240V AC and 50-60 Hz
Auto-sensing single-phase AC power


Physical Characteristics

Width: 18.75" (476 mm)
Height: 13.2" (334 mm)
Depth: 20.4" (519 mm)
Weight: 27.5 lbs (12.5 kg)


Related Products

Card Encoding Options

  • Magnetic stripe encoder ISO 7811, 3 tracks, HiCo/LoCo
  • Smart card contact station ISO 7816
  • EMV level 1 Combined MIFARE ISO 14443 (13.56 HHz) contactless and ISO 7816 contact encoder

Options

  • Lockable enclosure
  • Extended warranty programs

Communication and Interface Capabilities

  • USB V2.0 (standard)
  • 10/100 Ethernet (standard)
  • 802.11 b/g wireless (option)

Programming Languages

Core programming language: XML


barcodes/Symbologies

Linear: Other Symbologies via Windows Driver
Fonts and Graphics: True Type or other type fonts via Windows driver


Card Detail

Card Types

  • EMV Certified
  • PVC, Composite PVC, ABS, PET, PET-G, Teslin Composite
  • Specialty cards: transparent, translucent (clear and colored)
  • Technology cards: contact smart, contactless smart

Card Size: CR-80 size, ISO 7810 format, Type 1D-1
Card Thickness: 30 mil – 40 mil

Extended Details
Refine Your Options
Shop By
Shopping Options
Color Printing
  1. Color (101)
Lamination
  1. None (65)
  2. Single-Sided (24)
  1. Zebra ZXP Series 8 ID Card Printer
    Part #: Z81-000C0000US00 | SKU: ZEB82402

    Zebra ZXP Series 8 Single Sided Card Printer - Color - Dye Sublimation, Thermal Transfer - 19 Second Color - 304 dpi - USB, Network - Fast Ethernet
  2. Zebra ZXP Series 8 ID Card Printer
    Part #: Z81-000CD000US00 | SKU: ZEB82403

    Zebra ZXP Series 8 Single Sided Card Printer - Color - 19 Second Color - 304 dpi - USB - Fast Ethernet
  3. Zebra ZXP Series 8 ID Card Printer
    Part #: Z81-0M0C0000US00 | SKU: ZEB82404

    Zebra ZXP Series 8 Single Sided Card Printer - Color - Dye Sublimation, Thermal Transfer - 19 Second Color - 304 dpi - USB, Network - Fast Ethernet
  4. Zebra ZXP Series 8 ID Card Printer
    Part #: Z81-0M0CD000US00 | SKU: ZEB82405

    Zebra ZXP Series 8 Single Sided Card Printer - Color - 19 Second Color - 304 dpi - USB - Fast Ethernet
  5. Zebra ZXP Series 8 ID Card Printer
    Part #: Z82-000C0000US00 | SKU: ZEB82406

    Zebra ZXP Series 8 Dual-Sided Card Printer - Color - Dye Sublimation, Thermal Transfer - 19 Second Color - 304 dpi - USB, Network - Fast Ethernet
  6. Zebra ZXP Series 8 ID Card Printer
    Part #: Z82-000CD000US00 | SKU: ZEB82407

    Zebra ZXP Series 8 Dual-Sided Card Printer - Color - Dye Sublimation, Thermal Transfer - 19 Second Color - 304 dpi - USB - Fast Ethernet
  7. Zebra ZXP Series 8 ID Card Printer
    Part #: Z82-0M0C0000US00 | SKU: ZEB82408

    Zebra ZXP Series 8 Dual-Sided Card Printer - Color - Dye Sublimation, Thermal Transfer - 19 Second Color - 304 dpi - USB, Network - Fast Ethernet
  8. Zebra ZXP Series 8 ID Card Printer
    Part #: Z82-0M0CD000US00 | SKU: ZEB82409

    Zebra ZXP Series 8 Dual-Sided Card Printer - Color - Dye Sublimation, Thermal Transfer - 19 Second Color - 304 dpi - USB - Fast Ethernet
  9. Zebra ZXP Series 8 ID Card Printer
    Part #: Z81-00AC0000US00 | SKU: ZEB86759

    Zebra ZXP Series 8 Single Sided Card Printer - Monochrome - 19 Second Mono - 304 dpi - USB - Fast Ethernet
  10. Zebra ZXP Series 8 ID Card Printer
    Part #: Z81-00ACD000US00 | SKU: ZEB86760

    Zebra ZXP Series 8 Single Sided Card Printer - Color - 19 Second Color - 304 dpi - USB - Fast Ethernet
