Elatec RFID Reader

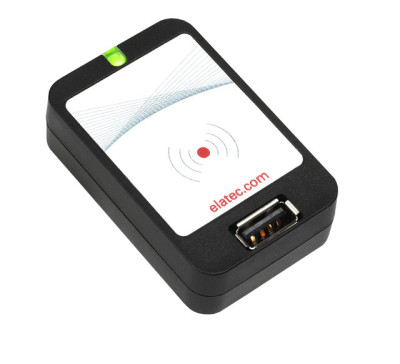

The TWN4 USB Front Reader integrates RFID (125 kHz and 13.56 MHz), NFC and Bluetooth Low Energy capabilities into a compact but powerful reader. Thanks to its patented turnable USB connector, which offers a 360 degree mounting opportunity, the reader can be easily connected to an external USB port. Furthermore, it is equipped with a USB hub that can optionally be disabled. Its reduced size combined with excellent read/write performance makes it the perfect reader for various applications, including but not limited to print solutions and single sign-on. The TWN4 USB Front Reader allows users to read and write almost all common worldwide 125 kHz and 13.56 MHz tags and/or labels. It supports all major transponders from various suppliers like ATMEL, EM, ST, NXP, TI, HID etc. and ISO standards like ISO14443A/B (T=CL), ISO15693, ISO18092 / ECMA-340 (NFC).

The TWN4 USB Front Reader integrates RFID (125 kHz and 13.56 MHz), NFC and Bluetooth Low Energy capabilities into a compact but powerful reader. Thanks to its patented turnable USB connector, which offers a 360 degree mounting opportunity, the reader can be easily connected to an external USB port. Furthermore, it is equipped with a USB hub that can optionally be disabled. Its reduced size combined with excellent read/write performance makes it the perfect reader for various applications, including but not limited to print solutions and single sign-on. The TWN4 USB Front Reader allows users to read and write almost all common worldwide 125 kHz and 13.56 MHz tags and/or labels. It supports all major transponders from various suppliers like ATMEL, EM, ST, NXP, TI, HID etc. and ISO standards like ISO14443A/B (T=CL), ISO15693, ISO18092 / ECMA-340 (NFC).

The TWN4 CONFIG Programmer Kit is a set of components which contains an RFID writer, special contactless TWN4 Configuration Cards and an App. Project specific reader settings are configured in the App and then encoded onto the TWN4 Configuration Cards. When the programmed Configuration Card is swiped over a reader, it adopts the new settings.

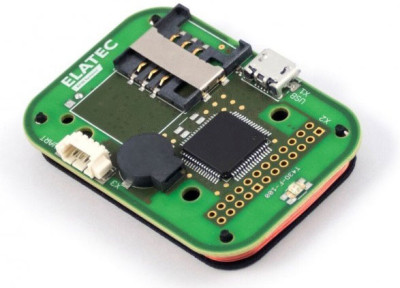

TWN4 Palon Compact Light reader is a versatile OEM PCB for integration into third-party products and devices. It supports enhanced interfaces, especially RS-485. The new compact module inherits all advantages and integrated tool support of the ELATEC TWN4 family. Although it is a general-purpose device, it is optimized for time attendance and access control. TWN4 Palon is a multi-technology reader/writer family supporting almost all 125 kHz/134.2 kHz and 13.56 MHz contactless technologies, including NFC for mobile credential ID and authentication. On-board antennas for HF and LF allow excellent contactless performance.

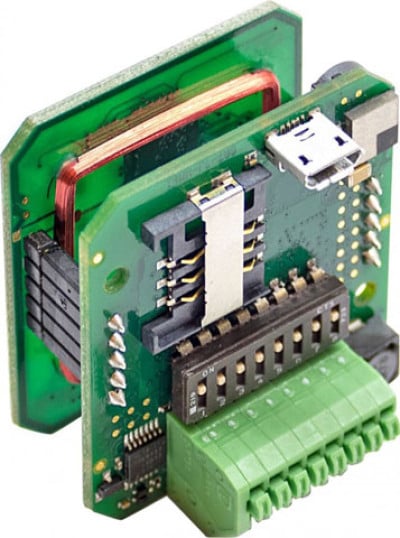

The TWN4 MultiTech 3 BLE with HID Prox integrates RFID (125 kHz, 134.2 kHz and 13.56 MHz), NFC and Bluetooth Low Energy capabilities into a compact but powerful reader. Its reduced size makes it the perfect reader for all applications where small size and full performance matters. The TWN4 MultiTech 3 BLE provides access to most common host interfaces such as USB, UART, serial (TTL) or I2C which are readily accessible through an on-board connector. The TWN4 MultiTech 3 BLE allows users to read and write almost all common worldwide 125 kHz, 134.2 kHz and 13.56 MHz tags and/or labels.
