FEIG RFID Reader

The FEIG ID CPR02.10-AD/ -B is designed as a wall mountable card reader for contactless data exchange with common ISO 14443-A &-B and ISO 15693 Transponders. Data exchanges to a computer or Host system are made simple through the ID CPR02.10-AD/ -B Serial and Wiegand connections. The ID CPR02.10-AD/ -B handles applications such as Access Control and Time Attendance with ease.

The FEIG ID CPR03.20 is a wall mountable card reader designed for access control applications for contactless data exchange with common ISO 14443-A &-B and ISO 15693 transponders. The ID CPR03.20 makes data exchange to a computer or host system simple through the ID CPR03.20 Serial (RS232-TTL) or Data / Clock (Wiegand) interface.

The FEIG ID CPR46.10 is a robust RFID Card Reader, which can be flush mounted into machines, self-service kiosks and terminals made of metal. Due to an automatic power management and a very low standby power consumption, the ID CPR46.10 is optimally suited for solar and battery-powered machines and terminals. Data transfer between the ID CPR46.10 and host can be encrypted according to AES 256. Equipped with high protection class (IP65) and high impact resistance level (IK10), the ID CPR46.10 Mifare reader provides maximum protection against environmental influences and vandalism.

The FEIG ID CPR50.10-E is a wall mountable card reader for applications such as access control, people identification at self service terminals etc. The ID CPR50.10-E supports transponders following the ISO standards 14443-A & -B and ISO 15693. The data transfer between the ID CPR50.10-E and host can be secured with the AES Algorithm (Rijndael-Algorithm) with a 128 Bit encryption key. Integration in any existing LAN network is made simple through the ID CPR50.10-E''s ethernet port in accordance with 10BASE-T /100BASE-TX. The ID CPR50.10-E can also communicate with NFC-devices.

The FEIG ECCO+ combines compact and robust design with advanced AutoID technology. The ECCO+''s hybrid system provides not only reading of 1D and 2D barcodes, but also identification (reading and writing) of RFID tags (HF or UHF). With the ECCO+''s provided Software ?MasterSetup?, the device function can be determined by easy configuration, without software development knowledge. For applications were complex data processing is required, the ECCO+ can be individually programmed in C / C++ using the available SDK with a lot of source code samples. With common communication interfaces like USB, Bluetooth and Wi-Fi, the ECCO+ can be used in different fields of application such as transport and logistics, asset tracking, healthcare, E-Ticketing, time recording etc. Based on a powerful LINUX operating system, the ECCO+ can be adapted individually into existing applications.

The FEIG ID ECCO Smart is a hybrid barcode and RFID handheld device. In combination with the ID NFC MetalTag Antenna, a specially developed NFC antenna, the ID ECCO Smart can easily detect, read and write miniature transponders that are embedded in or attached to metal, plastic or wood. Thanks to the unique antenna shape of the ID NFC MetalTag Antenna, the ID ECCO Smart can easily reach tags in hard-to-reach places. The ID ECCO Smart is equipped with the latest Bluetooth LE 5.0 technology for data transmission. Applications for the ID ECCO Smart in combination with the ID NFC MetalTag Antenna include maintenance and service, inventory, asset tracking and parts management. Due to their robust nature, the ID ECCO Smart and the ID NFC MetalTag Antenna are also suitable for harsh environments. Due to its large buttons and the rubberized surface, the ID ECCO Smart can also be operated comfortably with gloves and lies securely in the hand.

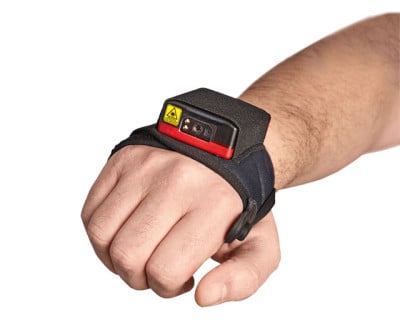

The FEIG HyWEAR compact is a hybrid Barcode & RFID Wearable that makes manual material handling processes more efficient by freeing both hands to perform work. The HyWEAR compact is an ideal tool for use in warehouse, distribution, manufacturing, baggage handling, parcel delivery and logistics operations that enables employees to work in a much more ergonomic manner. HyWEAR compact works without special receiving stations and can be integrated immediately into existing process chains. Several devices can be connected directly to the Ethernet within a radio cell via WLAN. HyWEAR compact can switch from one radio cell to the next using Wi-Fi roaming without having to register again ? the device connects automatically and imperceptibly to the new Wi-Fi access node. Depending on the variant the HyWEAR compact identifies 1D and 2D barcodes, UHF RAIN RFID tags or both as a hybrid data collection tool. The HyWEAR compact is installed on a flexibly adjustable handcuff, leaving the user?s fingers, hand and arm free to move. The HyWEAR compact has a high capacity, long-life, rechargeable battery that powers the device for the duration of a working shift.

The FEIG Basic Barcode Wearable HyWEAR compact sR makes manual material handling processes more efficient by freeing both hands to perform work. HyWEAR compact sR works without special receiving stations and can be integrated immediately into existing process chains. Connection is made trough Bluetooth 5.0 with the available protocols HID and SPP. HyWEAR compact sR has a high capacity, long-life, rechargeable battery that powers the device for the duration of a working shift. The HyWEAR compact sR powerful optical engine identifies 1D and 2D barcodes and is installed on a flexibly adjustable handcuff, leaving the user?s fingers, hand and arm free to move. HyWEAR compact sR identifies a large number of common 1D and 2D barcode types and enables the user to work in a much more ergonomic manner. The scanning process is triggered simply by thumb using a tactile switch, additional visual feedback via the clearly visible status LEDs as well as the vibration feedback and acoustic signals ensure maximum process reliability and minimize the risk of incorrect scans.
