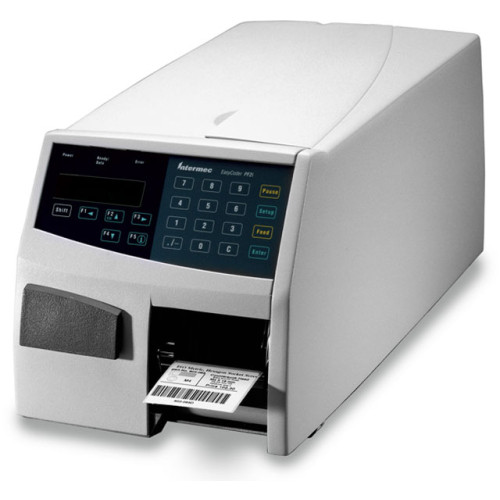

Intermec EasyCoder PF2i Barcode Label Printer

Intermec EasyCoder PF2i Barcode Label Printer

Intermec EasyCoder PF2i Barcode Label Printer

The EasyCoder PF2i printer is specially designed to provide rigorous barcode label printing in areas where space is limited. Users can enjoy all the features and benefits of larger barcode label printers, including standalone smart printing, without giving up valuable space.
Discontinued - Need Assistance
See all options
Intermec EasyCoder PF2i Specs Intermec EasyCoder PF2i Specs (pdf) Intermec EasyCoder PF2i Driver Intermec EasyCoder PF2i Driver (download)

Interfaces

Standard:
• Ethernet 10/100 Mbps
• RS-232, up to 115.2 kB/s
• Fingerprint/Direct Protocol: XON/XOFF, ENQ/ACK, DTR, RTS/CTS
• IPL: XON/XOFF, Intermec Std. Protocol
• USB 2.0

Optional:
• Parallel IEEE 1284
• Industrial Interface (8 digital in/out, 4 analog relays, 1 RS232/422/485 port)
• Dual Serial ports RS-232, RS-422, RS-485 and 20mA Current Loop

Wireless:
• IEEE 802.11 b/g
• Wi-Fi Certified, CCX (Cisco®) version 3 Certified
• WEP, WPA, WPA2, 802.11x (EAP-TTLS, LEAP, PEAP, FAST), 802.11i
• Multiple industrial antenna options for maximized coverage

Supported Protocols:
TCP/IP-suite (TCP, UDP, ICMP, IGMP, etc.), LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP.SNMP-MIB II supported (over UDP/IP), private enterprise MIB included. Supports IPv4 and IPv6.

Memory

Standard:
16MB Flash memory, 32MB SDRAM, 1 Compact Flash slot
Options:
1GB CompactFlash memory, multi-GB USB memory device (FAT16/FAT32 USB drivers supported)

Physical Characteristics

Length:
397mm (15.6 in)
Height:
178mm (7.0 in)
(big top): 205 mm (8.1 in)
Width:
194mm (7.6 in)
Weight:
5.5 kg (12 lbs)

Power

Input:
90 to 265 VAC, 45 to 65Hz
Consumption: Standby 15W; Peak 300W

Print Specifications

Max Width:
56 mm (2.2 in)
Max Length:
4095 mm (161.2 in)
Max Label Width:
60 mm (2.36 in)
Thickness:
3.0 to 7.5 mil
Style:
Roll-fed or fanfold
Label Roll Max Diameter:
(long door): 152.4 mm (6 in)
(short door): 213 mm (8.38 in)
Label Roll Core:
38-76mm (1.5-3 in)
Resolution:
8 dots/mm (203 dpi)
Print Speed:
100 – 200 mm/s (4 – 8 ips) variable
Media Type:
Direct thermal and thermal transfer label, ticket and tag printer. Also available in RFID configuration.

Supported Bar Code Symbologies

1-Dimensional:
All major 1D symbologies are supported.
2-Dimensional:
All major 2D symbologies are supported.

Extended Details
