Microscan Barcode Scanner

From an economical single vision smart camera system to a sophisticated eight camera application, the Microscan Visionscape GigE Solution contains all necessary components for a complete, successful machine vision implementation. PC-based Gigabit Ethernet systems leverage standard network components such as cabling, switches and interface cards. Visionscape GigE Solution supports a complete set of Microscan machine vision GigE cameras which, in combination with Visionscape software, allows for rapid deployment of any scale of machine vision solution. Gigabit Ethernet allows for high speed data transfers at one gigabit per second. With the Visionscape GigE Solution, this system can be easily deployed using standard low-cost network components, long cable lengths and no frame grabber boards.

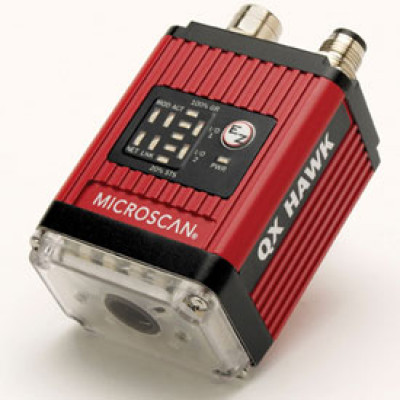

The Microscan QX Hawk is the first high-performance reader with the flexibility to read any mark at any distance and speed in any environment. Advanced imaging technology, including patent-pending liquid lens autofocus modular zoom optics, means automation engineers need not research multiple configuration options before deployment. The QX Hawk reads any mark - from a high-density 3.3 mil Data Matrix or a very large linear code to a low-contrast, direct part mark (DPM). It has a high-resolution, modular, optical-zoom system, which combined with liquid lens autofocus enables a single reader to handle almost any ID application. With the ability to read more than 60 codes/sec, the Microscan QX Hawk can keep up with almost any high-speed application.

Products and parts from Microscan.

Smart Series Pharmalite is ideally suited for illuminating labels, packaging containers, and other products in the pharmaceutical industry, as well as a variety of other packaging applications. The dark field geometry evenly illuminates flat, glossy surfaces without glare or hot spots. The Pharmalite camera mounting bracket simplifies integration by allowing direct mounting of Microscan imagers, smart cameras and GigE cameras.

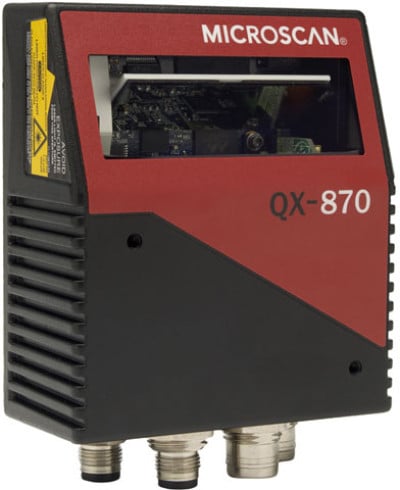

he Microscan QX-870 features aggressive decoding capabilities that allow reliable reading of barcodes out to 30" (762 mm), at up to a 10" (254 mm) beam width. The QX-870 uses Microscan's Quick Connect System, with M12 Ultra-Lock connectors and cordsets for plug and play setup in single or multi-scanner solutions.

High performance, simple connectivity, and IP65 enclosure make the Microscan QX-830 an ideal laser scanner for any industrial application. The innovative Quick Connect System includes M12 Ultra-Lock connectors and cordsets for plug-and-play setup of single or multireader solutions. Symbol reconstruction provides decoding of damaged, poorly printed, or poorly aligned 1D bar codes to ensure high read rates and throughput. The QX-830 includes embedded Ethernet TCP/IP and EtherNet/IP for high speed communication.

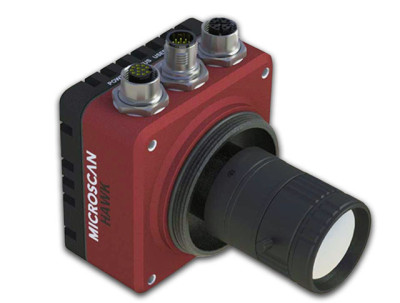

With 4 times the processing power and rugged IP67- rated design for use in the industrial environment. he HAWK MV-4000 is a high-performance C- mount machine vision scanner. All cameras ship with adapter cable.

The Microscan MS-890 is a heavy duty scanner with the flexibility to solve a multitude of applications under a variety of factory conditions. The extended read range and intelligent sweeping raster provide robust reading of both linear barcodes and stacked symbologies. Versatility and rugged design make the MS-890 an ideal scanner for industrial applications.

The MS-4X features ultra-compact size and wide angle optics to provide the widest field of view available for reading any symbol at close range. Aggressive decoding is ensured through X-Mode technology, which reads direct part marks and damaged or difficult symbols with no configuration or setup required. High performance, flexibility, and advanced decoding make the MS-4X the ideal imager for reading difficult codes in tight spaces.

Currently the world's smallest high resolution imager, the MS-4's ultra-compact size and wide angle optics provide the widest scan window available for reading any code at close range.

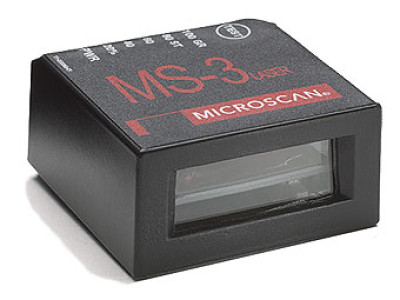

The MS-3 Laser is designed for embedded applications, the MS-3 Laser laser series meets demanding space and budget requirements while offering an exceptional feature-set. The MS-3 Laser series provides exceptional versatility in size and functionality.
