RJS Barcode Verifier

Inspector 5000, Auto Optic (3,5,10,20 mil)

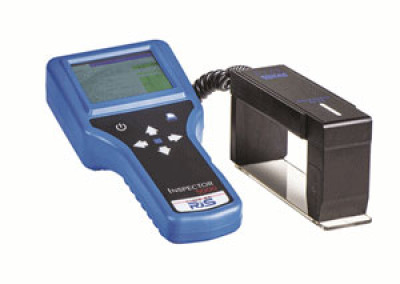

The RJS Inspector 5000 Auto Optic is an extremely adaptable verifier for ISO/ANSI method barcodes. It features a patented Auto-Optic scan head, which offers eight configurable optical arrangements through menu selections, accommodating four aperture sizes and two light wavelengths. The device conducts barcode inspections using ISO 15415, ISO 15416, and ANSI X3.182 methods. Information from the barcode analysis is instantly displayed on a large color LCD, and a clear audible tone along with a Pass/Fail screen promptly indicates whether a barcode meets the specification.

The RJS Inspector 5000 CR3 Laser is a versatile verifier for barcodes, adhering to the ISO/ANSI method. It is equipped with a CR3 Laser scanner that offers a user-friendly Point-and-Shoot Traditional Method. The device conducts inspections based on ISO 15415, ISO 15416, and ANSI X3.182 Decodability parameter grades. Information from the barcode analysis is instantly displayed on a large color LCD. An audible tone, along with a Pass/Fail screen, promptly indicates the compliance of a barcode with the specification.

Barcode Verifier - Inspector L1000 - Worldwide Version - 1D Laser - LEGACY - Best Suited for Customers who want a point and shoot verifier - Accepts PARTIAL ISO/ANSI Barcode AND Code 93 symbology support

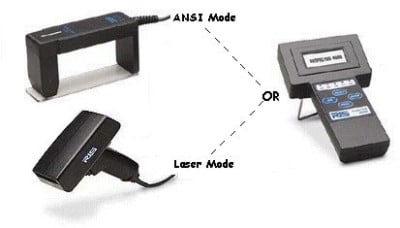

The Model D4000 Provides the Two Most Popular Types of Verification: ANSI Method and-or Point-and-Shoot Traditional Method. This unique portable barcode verifier can interface with either the patented RJS Auto-Optic scan head or a laser scanner to provide nine different optic configurations. The scanners are easily installed by the user making the unit quickly adaptable to practically any verification requirement. A D4000 incorporating an Auto-Optic scanner is the industry's most flexible ANSI method verifier. Eight optical arrangements are possible via menu selections for four aperture sizes and two wavelengths of light. The optical geometry meets all requirements of the ANSI X3.182 Barcode Quality Guideline. The Auto-Optic scanner is designed and manufactured by RJS for the sole purpose of performing ANSI method barcode quality analysis. Repeatability between units is outstanding making the D4000 an ideal choice as a standardized company-wide ANSI method verifier. A D4000 incorporating a laser scanner is an extremely easy to use point-and-shoot verifier. It requires virtually no user training and analyzes most of the essential traditional verification parameters. It also provides the ANSI method Decodability calculation and percent of decode information. Popular applications include verification on materials requiring special considerations such as shiny curved or uneven surfaces and wet ink.

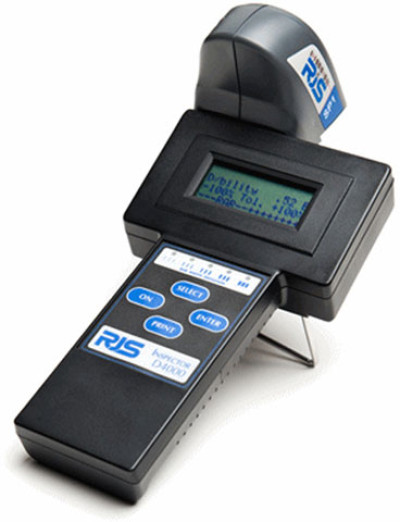

This easy-to-use unit is a true single unit solution, offering one-handed operation and support of all popular linear symbologies. The RJS Inspector D4000SP also offers store and print capability, multiple scan averaging, and sub-symbology choices - all easily accessible through a simple four-button user interface.

Barcode Verifier - Inspector D4000 - Auto-Optic (3,6,10,20 mil) - 4 Line x 8 Character LCD Display - Automatic Power Off - Reflectometer Mode - 4-Button Keypad - Designed for customers needing Full ISO/ANSI barcode quality testing in North America

Inspector D4000 Portable Barcode Verifier - With Laser Scanner - Dual-Mode - Partial ISO/ANSI barcode quality testing - printer (P/N 002-9018) sold separately

Inspector Model D4000 Dual-Mode Portable Barcode Verifier (with 3-, 5-, 10-, and 20-mil Aperture)

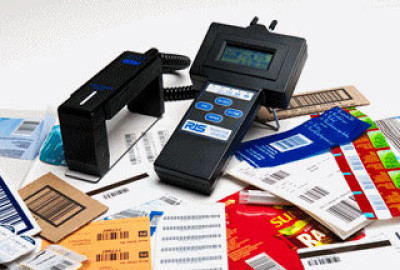

The RJS Inspector Model D4000 Auto Optic is an extremely adaptable and economical barcode verifier that conducts barcode inspections using ISO 15415, ISO 15416, and ANSI X3.182 methods. Its auto-optic scan head enables menu choices for four aperture sizes and two wavelengths of light. Its flexibility allows it to scan in both directions and automatically distinguish between all commonly used symbologies. Information from the barcode analysis is instantly displayed on a large color LCD, and a clear audible tone along with a Pass/Fail screen promptly indicates the compliance of a barcode with the specification.

Inspector D4000 CR2 Laser Scanner - D4000/L1000 - This is an add on not the entire barcode verifier - Add on for part (Part# 002-7850) or (Part# 002-7851) or (Part# 002-7845).

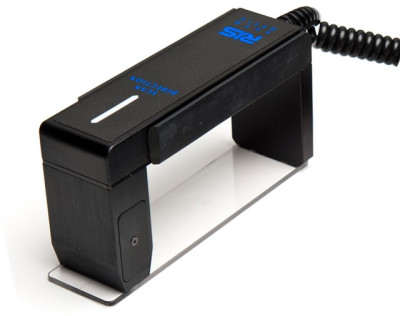

D4000 Auto-Optic Scanner (3-, 5-, 10-, 20-mil with Calibration Plaque)

Auto-Optic Scanner (with 3, 6, 10 and 20 mil Aperture) for the D4000 Verification System

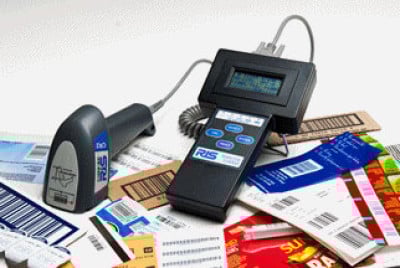

The RJS Inspector Model D4000 CR2 Laser Scanner is a flexible and economical barcode verifier. It offers a Point-and-Shoot Traditional Method, which also encompasses the ISO 15416 and ANSI X3.182 Decodability parameter grade. Features such as storing and printing, averaging multiple scans, and selecting subsymbologies are readily accessible via a straightforward four-button user interface. Its versatility allows it to scan in both directions and automatically distinguish between all commonly used symbologies. Information from the barcode analysis is instantly displayed on a large color LCD. A clear audible tone, along with a Pass/Fail screen, promptly indicates the compliance of a barcode with the specification.

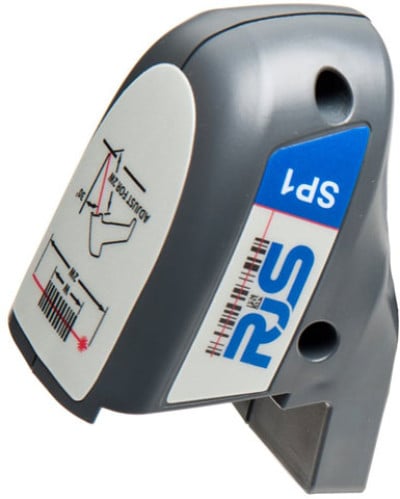

SP1 Laser Scanner, D4000/L1000. NOT entire barcode verifier. Replacement part or add-on only which REQUIRES customer already has (Part# 002-7850) or (Part# 002-7851) or (Part# 002-7845).

Form Printer - RJS TP140B - USB Cable - 110 VAC

TP140A, Printer (with cable & paper, 220V). For customers requiring printed reports for the barcodes inspected. Direct thermal inspection report printer with 4 inch wide paper.

The TP140B Report printer facilitates the creation of inspection reports from your Inspector series barcode verifier. Every inspected barcode is detailed on an individual line in the clear report produced by the printer. It’s important to note that if the Scan Reflectance Profile (SRP) is needed, the Verifier Computer Interface Report (VCIR) is mandatory. The reports, which provide comprehensive barcode inspection details (subject to the barcode verifier model), are printed on a 4-inch wide direct thermal material.

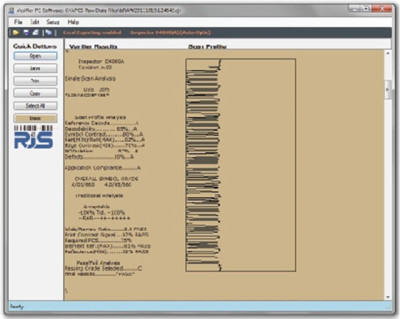

The RJS Verifier Computer Interface Report (VCIR) is a Windows software package that enables the transfer of inspection reports from your Inspector series verifiers to your computer. VCIR allows you to view your verification results or troubleshoot scan reflectance profiles. You can save the results in VCIR by job for future access or append them to new inspection results. The saved files are created as CSV spreadsheet files, with each inspected barcode represented by a separate line.

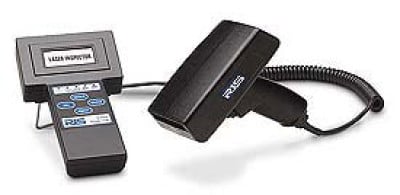

The L1000 Portable Verifier uses a moving beam laser scanner. It requires virtually no user training and analyzes the essential traditional verification parameters including average bar deviation quiet zones encodation check mod check and ratio where applicable. It also provides the ANSI method Decodability calculation and percent of decode information. Designed for maximum ease of use even traditionally hard to verify barcodes such as those on irregular wet shiny laminated or moving surfaces are accurately analyzed. The L1000 supports all the popular linear barcode symbologies. Additionally the L1000 contains 20K bytes of non-volatile memory that can be used for store and print capabilities. The data is accessible through a serial communications port. Accessories available include a printer and a battery charger-power supply.
