Altronix Power Device

Model AL1012ULACM converts a 115 VAC 60Hz input into eight (8) independently controlled 12VDC non power limited fuse protected Fail-Safe and/or Fail-Secure outputs with a total of 10 amp continuous supply current. The fire alarm disconnect feature enables emergency egress in the event the fire alarm system is activated. It is individually selectable for any or all of the eight (8) outputs.

Model AL1024ULACM converts a 115 VAC 60Hz input into eight (8) independently controlled 24VDC non power limited fuse protected Fail-Safe and/or Fail-Secure outputs with a total of 10 amp continuous supply current. The fire alarm disconnect feature enables emergency egress in the event the fire alarm system is activated. It is individually selectable for any or all of the eight (8) outputs.

Model AL125UL power supply converts a 115 VAC 60Hz input, to a 12VDC or 24VDC at 1 amp of total supply current Class 2 Rated power limited output.

Model AL175ULX power supply converts 115 VAC 60Hz input, into two (2) PTC protected 12VDC or 24VDC at 1.75 amp Class 2 Rated power limited supply current outputs.

Model AL400ULACM converts a 115 VAC 60Hz input into eight (8) independently controlled non power limited fuse protected Fail-Safe and/or Fail-Secure outputs with a total of 12VDC at 4 amp or 24VDC at 3 amp of continuous supply current. The fire alarm disconnect feature enables emergency egress in the event the fire alarm system is activated. It is individually selectable for any or all of the eight (8) outputs. Model AL400ULACMCB is a PTC protected version of this unit.

Model AL400ULM is specifically designed for use with access control systems and accessories. This unit converts a 115 VAC 60Hz input into five (5) PTC protected 12VDC at amp or 24VDC at 3 amp Class 2 Rated power limited outputs. Model AL400ULMR is a Red Cabinet version of this product.

Model AL600ULM is specifically designed for use with access control systems and accessories. This unit converts a 115 VAC 60Hz input into five (5) PTC protected 12VDC or 24VDC at 6 amp Class 2 Rated power limited outputs.

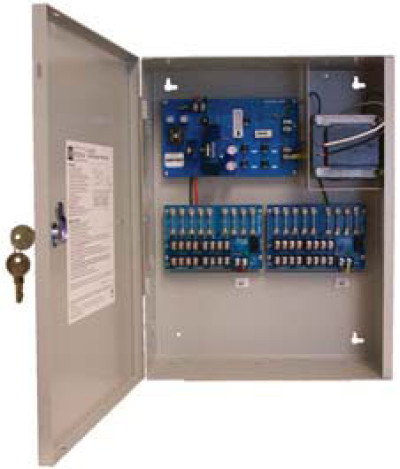

Model ALTV1224C provides 12VDC at 3.5 amp total supply current distributred via eight (8) fuse protected outputs and 24 VAC at 3.5 amp total supply current distributed via eight (8) fuse protected outputs.

Model ALTV1224DC provides 12VDC or 24VDC at 4 amp of total continuous supply current distributred via eight (8) fuse protected outputs.

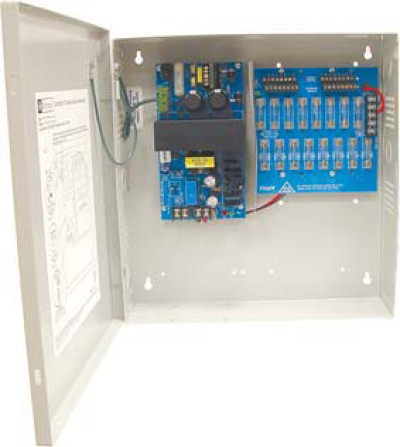

Model ALTV1224DC2 provides 12VDC or 24VDC 6 amp of total continuous supply current distributred via sixteen (16) fuse protected outputs.
