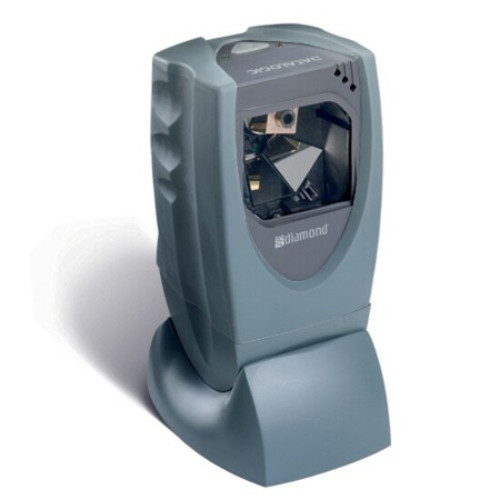

Datalogic 902301050 Barcode Scanner
Part #: 902301050 | SKU: DAT7616

When it comes to efficiency for point of sale operations, the Diamond is the ideal solution as it combines a high first pass decoding rate with outstanding reliability and simplicity of use. Small, compact and flexible combined with high performance. These are the distinctive features that characterize the Diamond, Datalogic's step ahead in omni-directional scanning. In addition, the built-in protective sleeve protects the unit from shocks and prevents possible damage caused by drops from the counter. The architecture of the Diamond provides many benefits at a point-of-sale. The visible laser diode allows the product to generate a scan pattern of 16 lines for 1200 scans per second. A single line scan option is also available. This feature, combined with excellent ergonomics, allows the Diamond to be used as a hand-held scanner as well. The reduced footprint and intelligent stand allows a variety of configurations at the counter when the product needs to fit in a small space. A single multi-interface model (USB, Wedge and RS232) provides flexibility and compatibility with the former DLL2020 by simply replacing the plug-in cables. The Diamond is equipped with the Datalogic code reconstruction system that allows reading of non-oriented labels placed in various positions on objects or poorly printed or damaged codes. The reader can be also configured in sleep mode to minimize consumption when it is not active. It automatically wakes up when a code is detected.

Datalogic 902301050 Barcode Scanner

Part Details: Diamond, DLL2020 Presentation scanner, with Single Line option. Order Universal Adapter Cable, interface cables & power supply/AC adapter (for RS-232 operation) separately. See accessories.

Need a different version of the Datalogic Diamond Barcode Scanner? View all 5 configurations

Additional Information

Manufacturer AIDC	DataLogic
Model Name	Diamond
Scanner Capability	1D

DataLogic Diamond Specs (pdf)

Technical Information

Form Factor: Presentation Scanner
Barcode Dimension: 1D
Symbologies Supported:
- Code 128
- EAN-128
- Code 39
- Code 32
- Codabar
- EAN Add-ons
- UPC Add-ons
- Interleaved 2 of 5
Scanner Type: Laser
Scan Rate: 1200 scans/sec
Interface Options: RS-232
Interface Connectivity: Corded
Scan Pattern: Single Line
Input Voltage: 5 V DC
Battery Capacity: 390 mAh

General Information

Manufacturer: Datalogic S.p.A
Product Line: Diamond
Product Name: Diamond DLL2021 Barcode Scanner

Physical Characteristics

Dimensions: 10cm x 7cm x x 6.5cm
Weight: 300 g - with sleeve

Environmental Conditions

Temperature:
- 0°C (32°F) to 40°C (104°F) Operating
- -20°C (-4°F) to 70°C (158°F) Storage
Humidity: 0 to 95% Non-condensing

Agency Approvals

Agency Approvals: RoHS Compliance

Warranty

Manufacturer Warranty: 2 Year(s)

Extended Details
